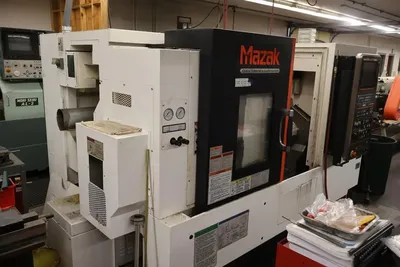

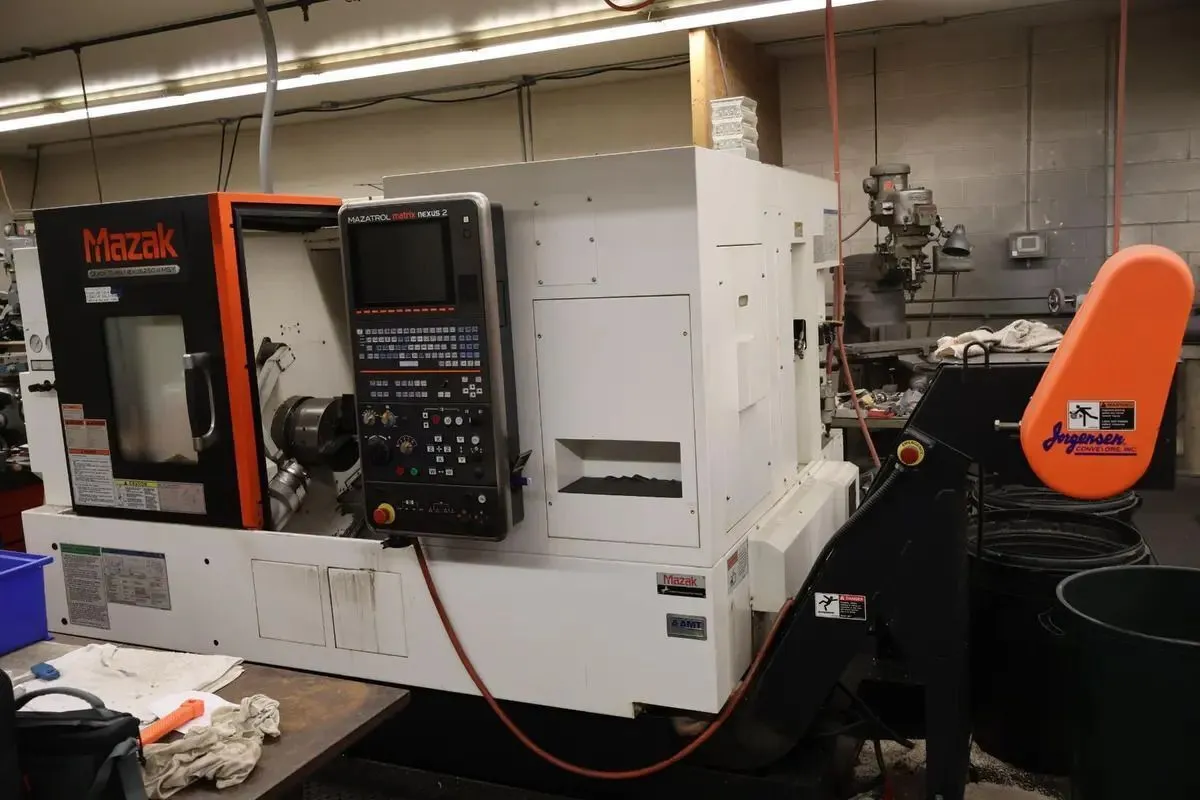

MAZAK NEXUS QTN 250MSY CNC MULTI AXIS LATHE W/MILLING & Y AXIS
Have one to sell?
ConditionUsed
1 available

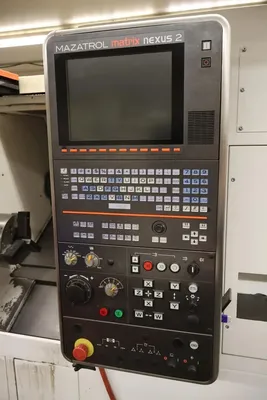

MAZATROL MATRIX 2 CNC COLOR CONTROL
EIA/ISO INPUT FUNCTION

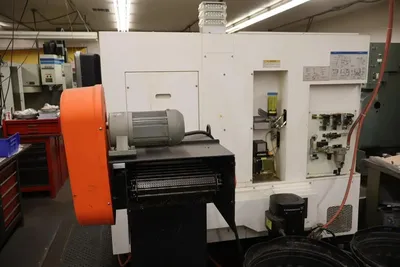

CHIP CONVEYOR
AUTO TOOL EYE
TOOL LIFE MONITORING
RIGID TAPPING ON THE MILL HEAD

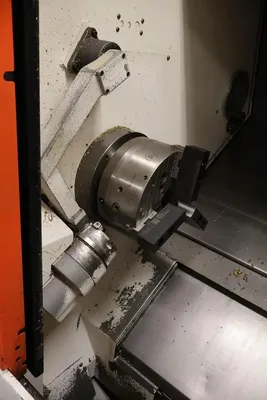

AUTOMATIC PARTS CATCHER

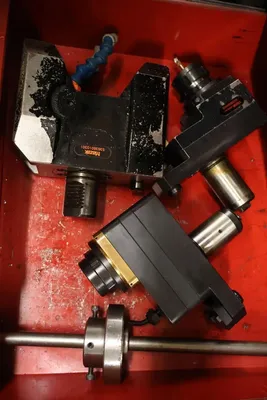

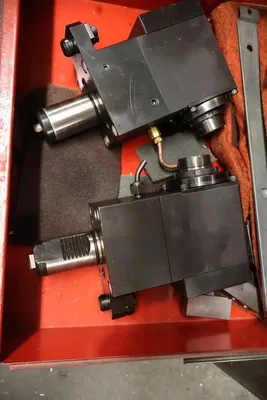

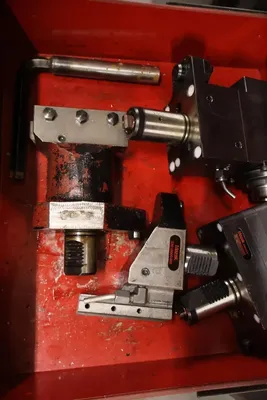

ALL STATIC TOOL HOLDERS & ROTARY TOOL HOLDERS
USER MACRO 600 PAIRS
RIGID TAP TORNADO BORING G 130
SEQUENCE COMPARISON STOP
LAND PORT, USB
CYLINDRICAL G07 & POLAR COORDINATE G12
MAZAK HIGH PRESSURE COOLANT 118 PSI
Y - AXIS CONTROL
SYNC TAP ON MILL HEAD G54.1
AUTO CHUCK JAW OPEN / CLOSE (1 & 2)
AUTO CHUCK OPEN AND CLOSE CONFIRM 1ST & 2ND SPINDLE
TRANSFORMER
RETHREAD FUNCTION
WINDOWS 7 OPERATING SYSTEM
CHUCK AIR BLAST SUB SPINDLE
Imperial
| Swing Over Bed | 26.5" |
| Turning Diameter | 14.9" |
| Turning Length | 21.27" |

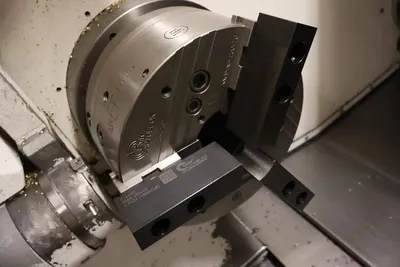

| Chuck Size 1 | 10" |
| Spindle Nose 1 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.6" |
| Bar Capacity 1 | 3" |
| Spindle Speeds 1 | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp |

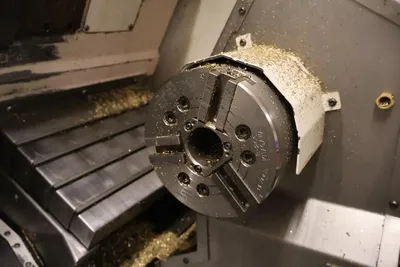

| Chuck Size 2 | 6" |
| Spindle Nose 2 | A2 - 5 |
| Spindle Speeds 2 | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp |
| X1 - Axis Travel | 9.05" |
| Z1 - Axis Travel | 22.63" |
| Y1 - Axis Travel | 4" |
| C - Axis Indexing 1 | 0.0001 |
| C - Axis Indexing 2 | 0.001 |
| W - Axis Travel Sub Spindle | 23" |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1299 ipm |
| Rapid Traverse Rate - Y1 | 826 ipm |

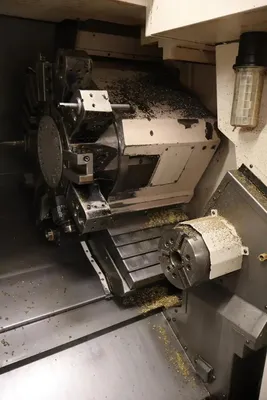

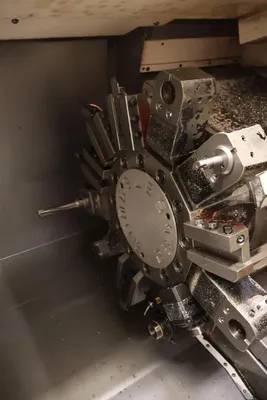

| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 4,500 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Control | CNC (MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL) |
| Weight | 0.00 |
MAZATROL MATRIX 2 CNC COLOR CONTROL
EIA/ISO INPUT FUNCTION
CHIP CONVEYOR
AUTO TOOL EYE
TOOL LIFE MONITORING
RIGID TAPPING ON THE MILL HEAD
AUTOMATIC PARTS CATCHER
ALL STATIC TOOL HOLDERS & ROTARY TOOL HOLDERS
USER MACRO 600 PAIRS
RIGID TAP TORNADO BORING G 130
SEQUENCE COMPARISON STOP
LAND PORT, USB
CYLINDRICAL G07 & POLAR COORDINATE G12
MAZAK HIGH PRESSURE COOLANT 118 PSI
Y - AXIS CONTROL
SYNC TAP ON MILL HEAD G54.1
AUTO CHUCK JAW OPEN / CLOSE (1 & 2)
AUTO CHUCK OPEN AND CLOSE CONFIRM 1ST & 2ND SPINDLE
TRANSFORMER
RETHREAD FUNCTION
WINDOWS 7 OPERATING SYSTEM
CHUCK AIR BLAST SUB SPINDLE
