DN SOLUTIONS PUMA DNT 2100M CNC TRUNING CENTER WITH MILLING
Have one to sell?
ConditionUsed
1 available

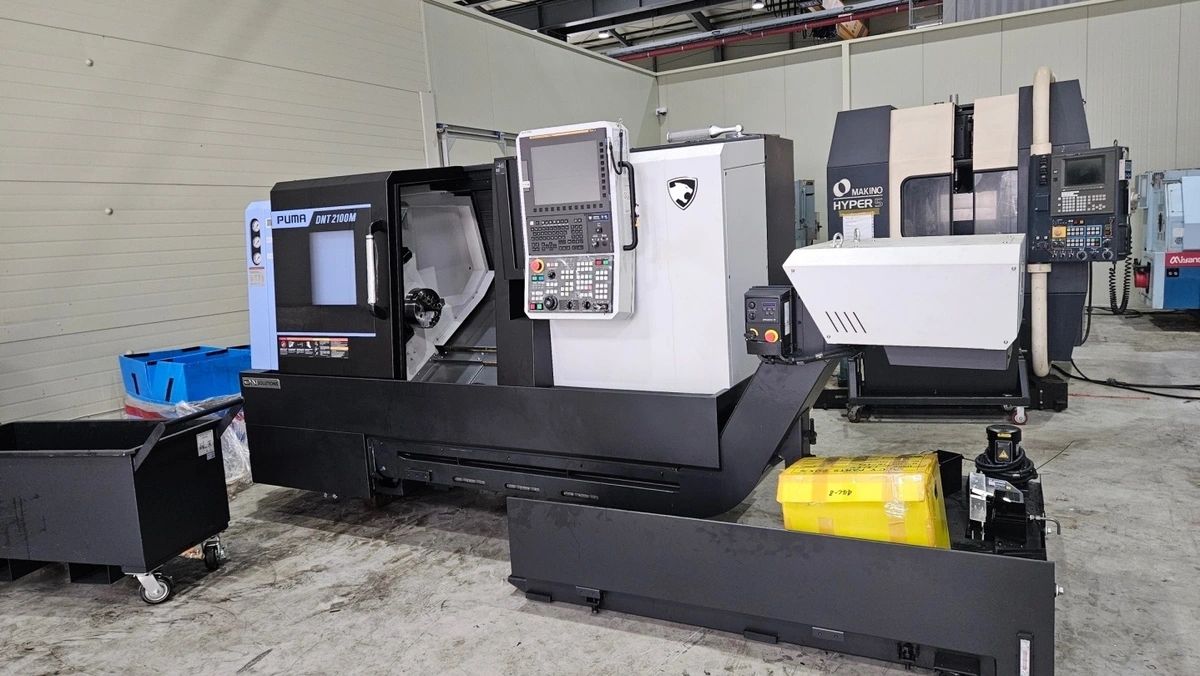

DOOSAN PUMA GT 2100M CNC Turning Center with Milling by DN Solutions. Model: PUMA DNT 2100M. Type: 2-Axis & 3-Axis Lathes. Year: 2024. Used condition. Ideal for precision machining tasks.
FANUC SERIES I PLUS CNC COLOR CONTROL
CHIP CONVEYOR
TOOL PRESETTER
(2 ) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
STANDARD STATIC TOOL PACKAGE
DOOSAN TOOL LOAD MONITORING
EHTERNET
151 CUTTING HOURS
DOOSAN PUMA GT 2100M CNC Turning Center with Milling by DN Solutions. Model: PUMA DNT 2100M. Type: 2-Axis & 3-Axis Lathes. Year: 2024. Used condition. Ideal for precision machining tasks.
Imperial
| Swing Over Bed | 25.6" |
| Machining Length | 21.7" |
| Turning Diameter, Shaft Diameter | 15.7" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2 - 6 |
| Spindle Bore Diameter 1 | 3.2" |
| Spindle Bar Capacity 1 | 2.6" |
| Spindle Speeds 1 | 4,500 RPM |
| Spindle Horsepower 1 | 25 hp |
| X1 - Axis Travel | 9.05" |
| Z1 - Axis Travel | 22.8" |
| C1 - Axis Travel | .001 |
| Rapid Traverse Rate - X1 | 945 in/min. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. |
| Turret Configuration 1 | 1255 |
| Turret Rotary Tool Spindle Speed 1 | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Tailstock Quill Diameter | 3.1" |
| Tailstock Taper | MT 3 |
| Tailstock Quill Travel | 3.9" |
| Tailstock Travel | 22.8" |
| # Axis | 3 |
| Bar Capacity | 2.6" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'No' |
| Control | CNC |
| Weight | 8200.00 |
FANUC SERIES I PLUS CNC COLOR CONTROL
CHIP CONVEYOR
TOOL PRESETTER
(2 ) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
STANDARD STATIC TOOL PACKAGE
DOOSAN TOOL LOAD MONITORING
EHTERNET
151 CUTTING HOURS
