WEILER E 90 / 3000 CNC FLATBED TURNING CENTER WITH 10.3" HOLE & 118" BETWEEN CENTERS
Have one to sell?
ConditionUsed
1 available

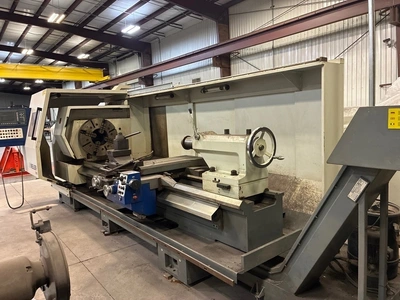

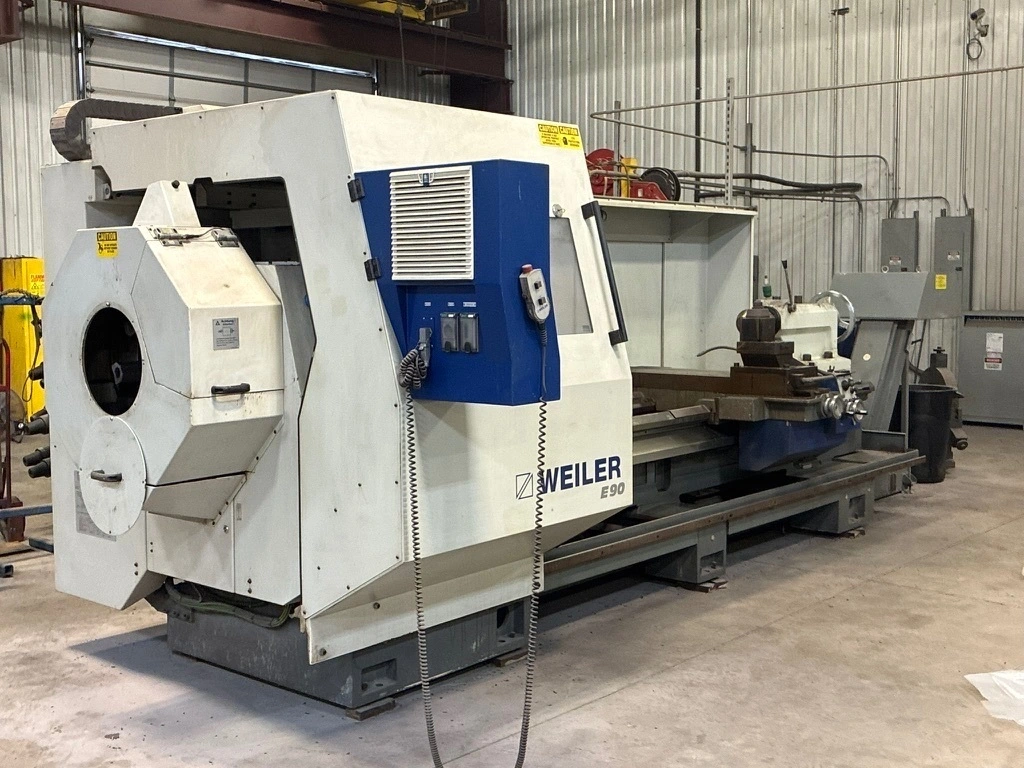

Explore precision with the used 2013 WEILER E90 3000 CNC Lathe. Features include 35.43" swing, 118" machining length, dual 32" chucks, and a 10.3" spindle bore. Equipped with WEILER control, STEADY REST and LONG BORING BAR ATTACHMENT. Perfect for advanced machining.

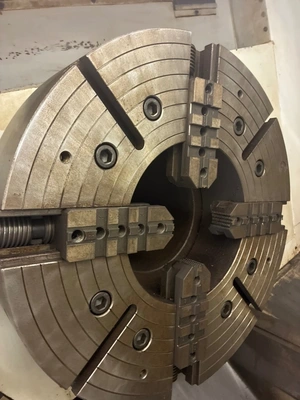

FRONT AND REAR 32" 4 JAW CHUCKS
CHIP CONVYEOR
Explore precision with the used 2013 WEILER E90 3000 CNC Lathe. Features include 35.43" swing, 118" machining length, dual 32" chucks, and a 10.3" spindle bore. Equipped with WEILER control, STEADY REST and LONG BORING BAR ATTACHMENT. Perfect for advanced machining.
Imperial
| Swing Over Bed | 35.43" |
| Machining Length | 118.11" |
| Turning Diameter, Shaft Diameter | 23" |
| Chuck Size 1 | 32" |
| Spindle Nose 1 | DIN ISO 702 - 1 (DIN55026) SIZE 20 |
| Spindle Bore Diameter 1 | 10.3" |
| Spindle Bar Capacity 1 | 10.3" |
| Spindle Speeds 1 | 700 RPM |
| Spindle Horsepower 1 | 60 hp |
| Chuck Size 2 | 32" |
| X1 - Axis Travel | 23.23" |
| Z1 - Axis Travel | 230" |
| Rapid Traverse Rate - X1 | 197 in/min. |
| Rapid Traverse Rate - Z1 | 394 in/min. |
| Spindle Torque | 4400 |
| Gear Ranges | 2 |
| Tailstock Quill Diameter | 5.51" |
| Tailstock Taper | MT 6 |
| Tailstock Quill Travel | 11.81" |
| # Axis | 2 |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
| Control | CNC |
| Dimensions | 271" X 102" X 90" |
| Weight | 24,250 |
FRONT AND REAR 32" 4 JAW CHUCKS
CHIP CONVYEOR
