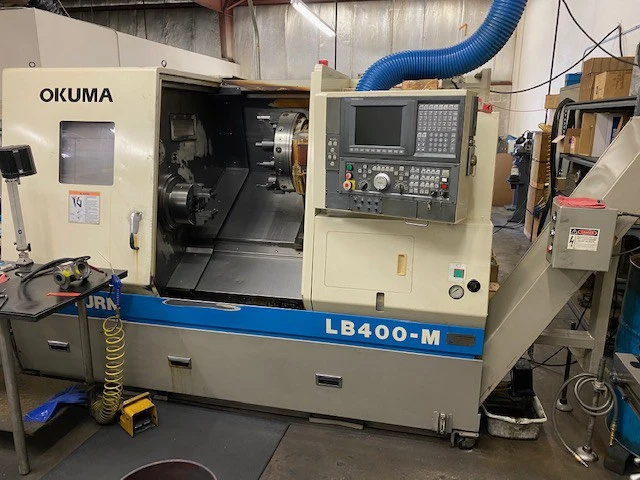

OKUMA LB 400M CNC TURNING AND MILLING CENTER

Swing Over Bed: 24.40"
Turning Diameter, Shaft Diameter: 16.54"
Machining Length: 25.59"
Distance Between Spindles: 0
Distance Between Centers: 26.57"
Chuck Size 1, 2: 10"
Spindle Nose 1, 2: A2 - 8
Spindle Bore Diameter 1, 2: 3.15"
Spindle Bar Capacity 1, 2: 2.55"
Spindle Speeds 1, 2: 3500 RPM
Spindle Speed Motor 1, 2: 30 HP
Gear Ranges: 2
Spindle Torque: 0
X - Axis Travel 1, 2: 11.81"
Z - Axis Travel 1, 2: 26.57"
W - Axis Travel Sub Spindle: 0
C - Axis Travel: .001 Degree
Rapid Traverse Rate W Axis: 0
Rapid Traverse Rates X1, X2: 790 IPM
Rapid Traverse Rates Z1, Z2: 985 IPM
Rapid Traverse C Axis: 200 MIN
Turret Configuration: 12
Milling Spindle Speed: 3000 RPM
Rotary Tool Horsepower: 7.5 HP
Tailstock Quill Diameter: 3.94"
Tailstock Quill Travel: 5.91
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 12,100 Lbs.
