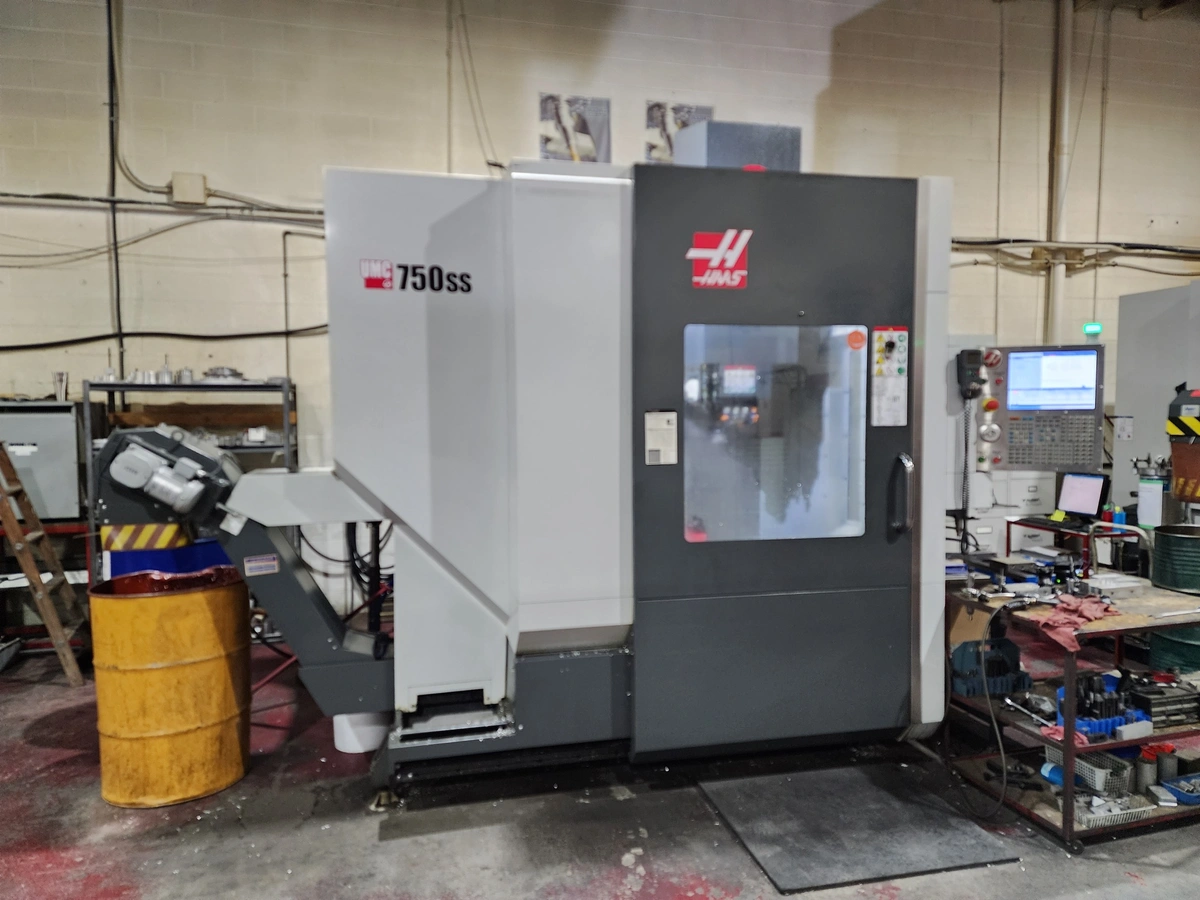

HAAS UMC-750SS CNC 5 AXIS MACHINING CENTER
Unavailable

HAAS UMC-750SS CNC 5 AXIS MACHINING CENTER

CNC 5 Axis Machines
Manufacturer:
HAAS
Model:
UMC-750SS
Year:
2016
Stock #:
9166
HAAS UMC-750SS CNC 5 Axis Machining Center, 2016 model, features a 19.70" table, 15,000 RPM 30 HP spindle, and 40+1 automatic tool changer and coolant through spindle. The UMC-500SS features a 15.7″ integrated trunnion-style rotary table, allowing for efficient 3+2 positioning and full 5-axis simultaneous machining. With generous travels of 30" x 20" x 20" (X, Y, Z), this machining center can accommodate a wide range of part sizes and geometries. The UMV 750SS robust construction and advanced features make it ideal for industries such as aerospace, medical, and precision manufacturing.
Weight On Table669 lb303.5 kg
Integrated NC Rotary Table Size19.7"500.38 mm
Main Spindle Horse Power30 hp22.4 kW
Main Spindle Speeds15,000 RPM15,000 RPM
Main Spindle Taper40.040.0
X - Axis Travel30"762 mm
Y - Axis Travel20"508 mm
Z - Axis Travel20"508 mm
B - Axis Travel120 DED. ~ - 35 DEG.120 DED. ~ - 35 DEG.
C - Axis Travel Table Indexing360 DEGREE360 DEGREE
Rapid Traverse Rate - X1,200 in/min.30.5 m/min.
Rapid Traverse Rate - Y1,200 in/min.30.5 m/min.
Rapid Traverse Rate - Z1,200 in/min.30.5 m/min.
Cutting Feed Rate650 in/min.16.5 m/min.
Automatic Tool Changer401401
Tool Length12"304.8 mm
Tool Weight12 lb5.4 kg
Machine Weight16,000 lb7,257.5 kg
ControlCNC (HAAS)CNC (HAAS)

HAAS CNC CONTROL
THROUGH SPINDLE COOLANT 300PSI
UPRIGHT CHIP CONVEYOR BELT TYPE
AUXILIARY COOLANT FILTER SYSTEM
WIRELESS INTUITIVE PROBING SYSTEM
REMOTE JOG HANDLE WITH COLOR LCD
RENISHAW OTS WIRELESS TOOL LENGTH MEASUREMENT
MACROS
ROTATION & SCALING
TCPC AND DWO
M19 SPINDLE ORIENT
HIGH SPEED MACHINING
VPS EDITING
IGB MEMORY
COMPENSATION TABLES
