| Table Diameter | 40" | 1,016 mm |
| Table Load Capacity | 4,400 lb | 1,995.8 kg |
| Swing Diameter | 50" | 1,270 mm |
| Turning Height | 39.7" | 1,008.4 mm |
| Table Speed | 850 RPM | 850 RPM |
| Main Motor | 80 hp | 59.7 kW |
| Number Of Ranges | 2 | 2 |
| X - Axis Travel | 22.8" | 579.12 mm |
| Z - Axis Travel | 39.3" | 998.22 mm |
| Rapid Traverse Rate - X | 787 ipm | |
| Rapid Traverse Rate - Z | 787 in/min. | 20 m/min. |
| Rotary Spindle Speed | 3,000 RPM | 3,000 RPM |
| Rotary Spindle Horsepower | 15 hp | 11.2 kW |
| Turret Configuration | 12 station | 12 station |
| Machine Weight | 50,100 lb | 22,725 kg |
| Control | CNC (FANUC i) | CNC (FANUC i) |
| Weight | 50000.00 | 50000.00 |
FANUC 21ITB CNC CONTROL

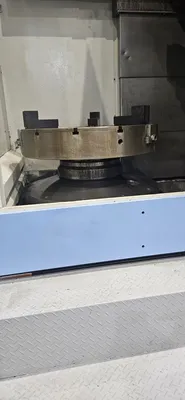

40" SAMCHULLY HYDRAULIC CHUCK
CHIP CONVEYOR
(2) O.D ROTARY HEADS
(2) I.D. ROTARY HEADS
