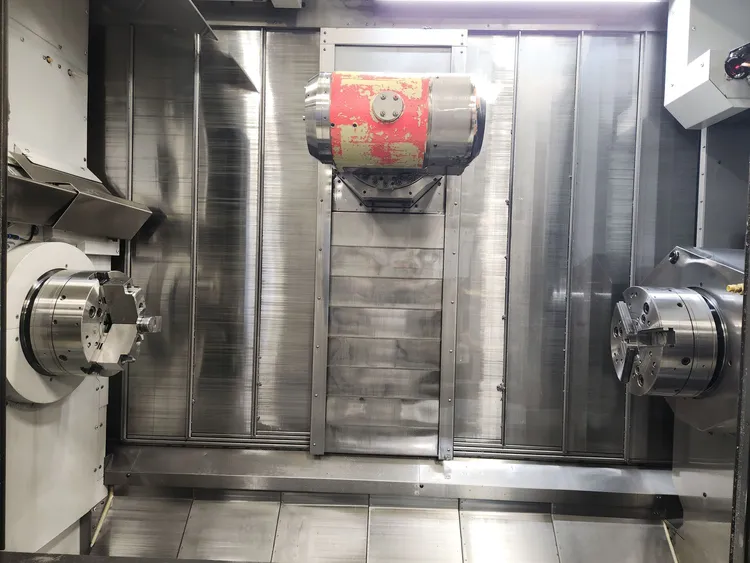

DMG MORI NT4300 DCG/1500S CNC MULTI TASKING CENTER

Swing Over Bed: 28.7"
Turning Diameter: 28.7" / 15.7"
Turning Length: 58.9"
Distance Between Centers: 0
Distance Between Spindles: 73.3"
Chuck Size 1, 2: 12", 12"
Spindle Nose 1, 2: A2-8, A2-8
Spindle Bore Diameter 1, 2: 4.1", 4.1"
Bar Capacity 1, 2: 3.5", 3.5"
Spindle Speeds 1, 2: 2500, 2500 RPM
Spindle Horsepower 1, 2: 40, 40 HP
B - Axis Head Indexing: .0001 Degree
B - Axis Milling Spindle Speed: 12,000 RPM
B - Axis Milling Spindle Taper: Capto C6
B - Axis Milling Spindle Horse Power: 24.7 HP
ATC For Milling Spindle: 240 ATC
Tool Diameter: 2.7" / 5.5"
Tool Length: 15.7"
Tool Weight: 22 Lbs.
X - Axis Travel X1, X2, X3: 29.5", 7.7"
Z - Axis Travel Z1, Z2, Z3: 61", 60"
Y - Axis Travel Y1, Y2, Y3: +/- 8.3"
C - Axis Indexing 1, 2: .0001, .0001 Degree
W - Axis Travel Sub Spindle: 63"
Rapid Traverse Rates X1, X2, X3: 1968, 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1968, 1181 IPM
Turret Tool Positions 1, 2, 3: 0
Turret Rotary Tool Speeds 1, 2, 3: 0
Turret Rotary Tool Horse Power 1, 2, 3: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Tailstock Travel: 0
Machine Weight: 62.250 Lbs.
