DOOSAN NHP 4000 12 LINEAR PALLET SYSTEM 4 AXIS HORIZONTAL MACHINING CENTER
Unavailable

DOOSAN NHP 4000 12 LINEAR PALLET SYSTEM 4 AXIS HORIZONTAL MACHINING CENTER

Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHP 4000
Year:
2020
Stock #:
9354

Number Of Tables / Pallets: 12
Table Size : 15.75" X 15.75"
Weight On Table: 880 LBS.
Integrated NC Rotary Table Size: 0
Main Spindle Speeds: 15,000 RPM
Main Spindle Taper: 40 CT BIG PLUS
Main Spindle Horse Power: 49.2 HP
X - Axis Travel: 22"
Y - Axis Travel: 25.1"
Z - Axis Travel: 25.9"
A - Axis Travel: 0
B - Axis Travel: .001 DEGREE
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 2362, 2362, 2362 IPM
Cutting Feed Rate: 2362 IPM
Vertical Turning Table Size, Number Of Tables: 0
Vertical Turning Table Speed: 0
Vertical Turning Table Horse Power: 0
Automatic Tool Changer: 275 ATC
Tool Diameter: 3", 6.69"
Tool Length: 17.71"
Tool Weight: 26.45 Lbs.
Machine Weight: 33,040 Lbs.
Spindle Nose To Pallet Center: 3.15" ~ 29.13"
Spindle Center To Table Top: 3.15" ~ 28.34"

FANUC 31I-B CNC COLOR CONTROL
(12) PALLET LPS LINEAR PALLET SYSTEM
275 AUTO TOOL CHANGER MATRIX
RENISHAW LASER TOOL SETTER
BK MICRO TOOL TOUCH PROBE FOR TOOL BREAKAGE DETECTION
CELL CONTROLLER W/1 LOAD AND UNLOAD STATIONS
CHIP CONVEYOR
COOLANT THRU SPINDLE 300PSI

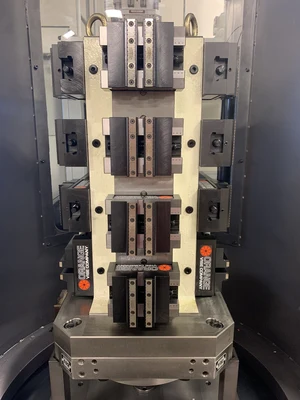

12 TOMBSTONES INCLUDED
RENISHAW SPINDLE PROBE RMP-60
TILTED WORK PLANE 54.1
(2) SPINDLE SUPPORTS (DIFFERENT LENGTHS)
.001 4 AXIS N/C ROTARY TABLE
