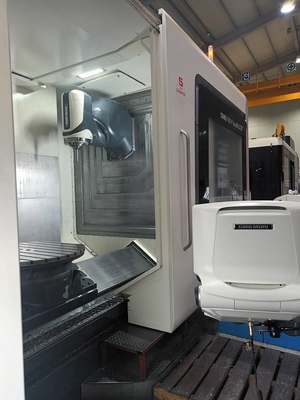

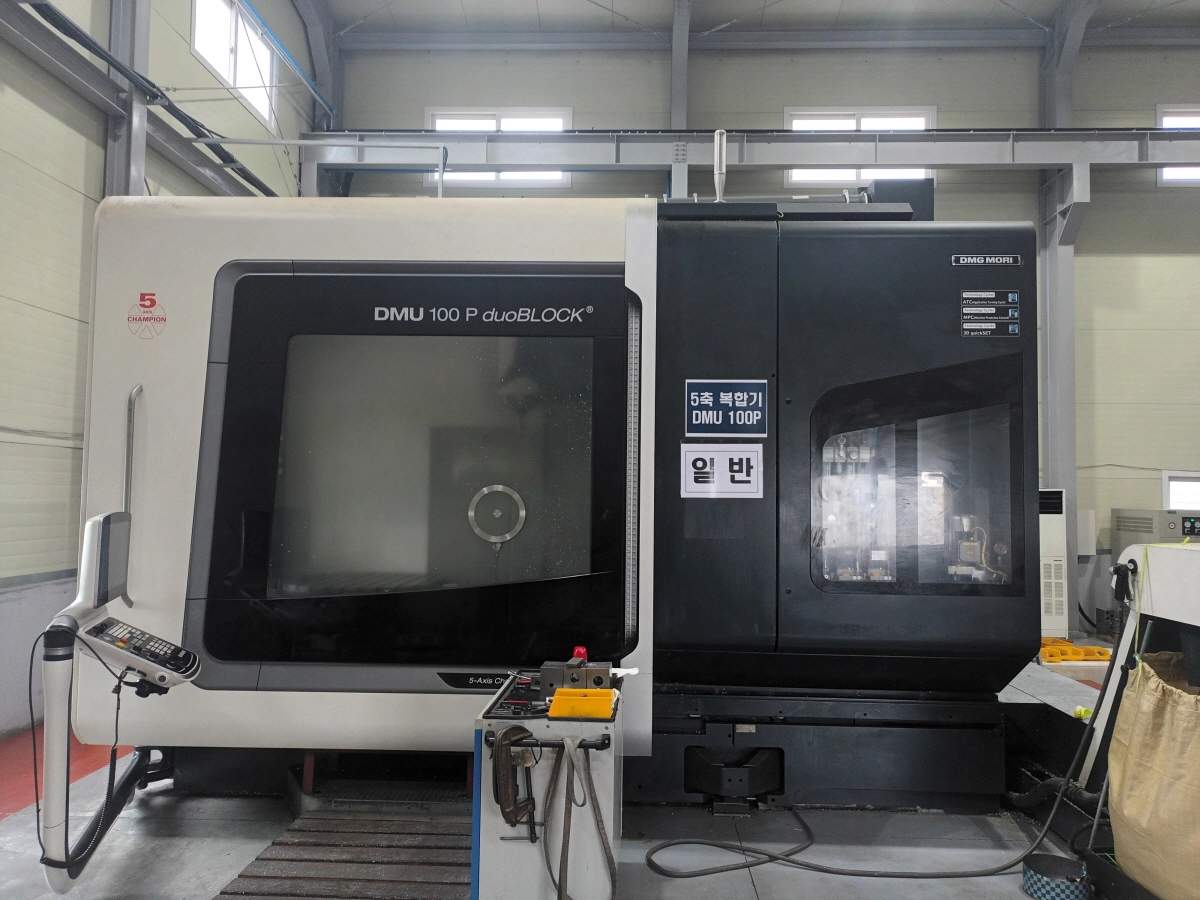

DMG MORI DMU 100P DUOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER

DMG MORI DMU 100P DUOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
DMG MORI
Model:
DMU 100P DUOBLOCK
Year:
2016
Stock #:
9563
Status:
For Sale

Description

DMG MORI DMU 100P DUOBLOCK CNC 5 Axis Vertical Machining Center. 2016 model. Key features: 15,000 RPM spindle, 46.9 hp, 63 automatic tool changer, CELOS Siemens 840D control, coolant thru spindle, infrared measuring probe, and a range of axis travels.

Number Of Tables / Pallets11
Table Size - L43.3"1,099.8 mm
Table Size - W35.4"899.16 mm
Weight On Table4,850 lb2,199.9 kg
Integrated NC Rotary Table Size45.3"1,150.6 mm
Main Spindle Horse Power46.9 hp35 kW
Main Spindle Speeds15,000 RPM15,000 RPM
Main Spindle Taper100.0100.0
X - Axis Travel39.4"1,000.8 mm
Y - Axis Travel49.2"1,249.7 mm
Z - Axis Travel39.4"1,000.8 mm
A - Axis Travel-120 / + 10-120 / + 10
B - Axis Travel-30 / +180-30 / +180
C - Axis Travel Table Indexing.001 CONTOURING.001 CONTOURING
Rapid Traverse Rate - X2,362 in/min.60 m/min.
Cutting Feed Rate2,362 in/min.60 m/min.
Vertical Turning Table Size, Number Of Tables00
Vertical Turning Table Speed0 RPM0 RPM
Vertical Turning Table Horse Power0 hp0 kW
Automatic Tool Changer6363
Tool Length25.6"650.24 mm
Tool Weight66.1 lb30 kg
Machine Weight54,031 lb24,508.1 kg
ControlCNC (SIEMENS 840D)CNC (SIEMENS 840D)
Weight0.000.00

CELOS SIEMENS 840D CONTROL
COOLANT THRU SPINDLE
COOLANT TEMPERING FOR 980 L UNITS
MOTOR SPINDLE, 15,000 1/MIN, 52 KW
SPRAY PISTOL WITH PUMP 2 BAR/40 1/MIN
OIL AND EMULSION MIST SEPARATOR
COOLING AIRBLAST
INFRARED MEASURING PROBE RENISHAW
TOOL MEASURING IN-MACHINING AREA BLUM LASER NT-HYBRID
3D QUICKSET
MPC MACHINE PRODUCTION CONTROL
4 COLOR SIGNAL LAMP
LAMINATED SAFETY GLASS
OPERATION MODE 4
ELECTRONIC HANDWHEEL SEIMENS 840D
MDYNAMICS PACKAGE
APPLICATION TUNING CYCLE ATC
SAFETY PACKAGE FOR POWER FAILURE
NETSERVICE
SERVICE AGENT CELOS
MESSENGER
