| Number Of Tables / Pallets | 2 | 2 |
| Table Size - L | 55" | 1,397 mm |
| Table Size - W | 39" | 990.6 mm |
| Weight On Table | 11,023 lb | 5,000 kg |
| Integrated NC Rotary Table Size | 0" | 0 mm |
| Main Spindle Horse Power | 50 hp | 37.3 kW |
| Main Spindle Speeds | 10,000 RPM | 10,000 RPM |
| Main Spindle Taper | 50.0 | 50.0 |
| X - Axis Travel | 73.82" | 1,875 mm |
| Y - Axis Travel | 61.02" | 1,549.9 mm |
| Z - Axis Travel | 52.95" | 1,344.9 mm |
| A - Axis Travel | 0 | 0 |
| B - Axis Travel | -30 to +120 | -30 to +120 |
| C - Axis Travel Table Indexing | .0001 | .0001 |
| Rapid Traverse Rate - X | 1,575 in/min. | 40 m/min. |
| Rapid Traverse Rate - Y | 1,575 in/min. | 40 m/min. |
| Rapid Traverse Rate - Z | 1,575 in/min. | 40 m/min. |
| Cutting Feed Rate | 0 in/min. | 0 m/min. |
| Vertical Turning Table Size, Number Of Tables | 55.0 | 55.0 |
| Vertical Turning Table Speed | 300 RPM | 300 RPM |
| Vertical Turning Table Horse Power | 0 hp | 0 kW |
| Automatic Tool Changer | 80 | 80 |
| Tool Length | 25.59" | 649.99 mm |
| Tool Weight | 66 lb | 29.9 kg |
| Machine Weight | 102,800 lb | 46,629.4 kg |
| Control | CNC (MAZATROL Matrix) | CNC (MAZATROL Matrix) |
| Weight | 0.00 | 0.00 |

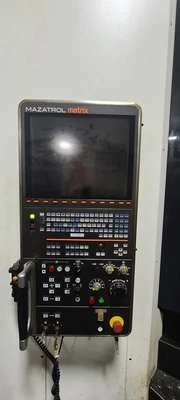

MAZATROL MATRIX CNC CONTROL
MAZAK SUPERFLOW V8A VARIABLE PRESSURE 200-1000PSI
CHIP CONVEYOR
WORK MEASURING SYSTEM
OVERLOAD DETECTION
AUTOMATIC TOOL EYE
NC4 TOOL LENGTH LASER PROBE
LASER MEASUREMENT NC4 MACRO UPGRADE
HOBBING FUNCTION W/O TOOL
AUTO PECKING CYCLE W/ LOAD DETECTION
RE-THREADING OPTION
