Number Of Tables / Pallets: 1
Table Size : 137.8" X 34.3"
Weight On Table: 7716 LBS.
Integrated NC Rotary Table Size: 31.5" DIA.
Spindle Nose To Table: -1.6 ~ 29.9"
Main Spindle Speeds: 12,000 RPM
Main Spindle Taper: 40
Main Spindle Horse Power: 30 HP
X - Axis Travel: 118.11"
Y - Axis Travel: 33.56"
Z - Axis Travel: 31.5"
A - Axis Travel: 0
B - Axis Travel: + - 110 DEGREES
C - Axis Travel Table Indexing: .001 DEGREE
Rapid Traverse X, Y, Z: 1574 IPM
Cutting Feed Rate: 787.4 IPM
Vertical Turning Table Size, Number Of Tables: 0
Vertical Turning Table Speed: 0
Vertical Turning Table Horse Power: 0
Automatic Tool Changer: 30 ATC
Tool Diameter: 3.1", 5.1"
Tool Length: 11.8"
Tool Weight: 17.6 LBS
Machine Weight: 52,910 LBS

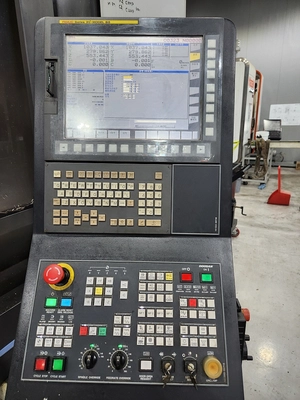

FANUC 31I-B5 CONTROL
COOLANT THRU SPINDLE
TS27R RENISHAW TOOL MEASUREMENT PROBE
FLUSHING COOLANT
AUTOMATIC POWER OFF
DOOSAN TOOL LOAD MONITORING
AICCII DSQI 200 BLOCK
BIG PLUS SPINDLE
CHIP CONVEYOR
PORTABLE MPG
