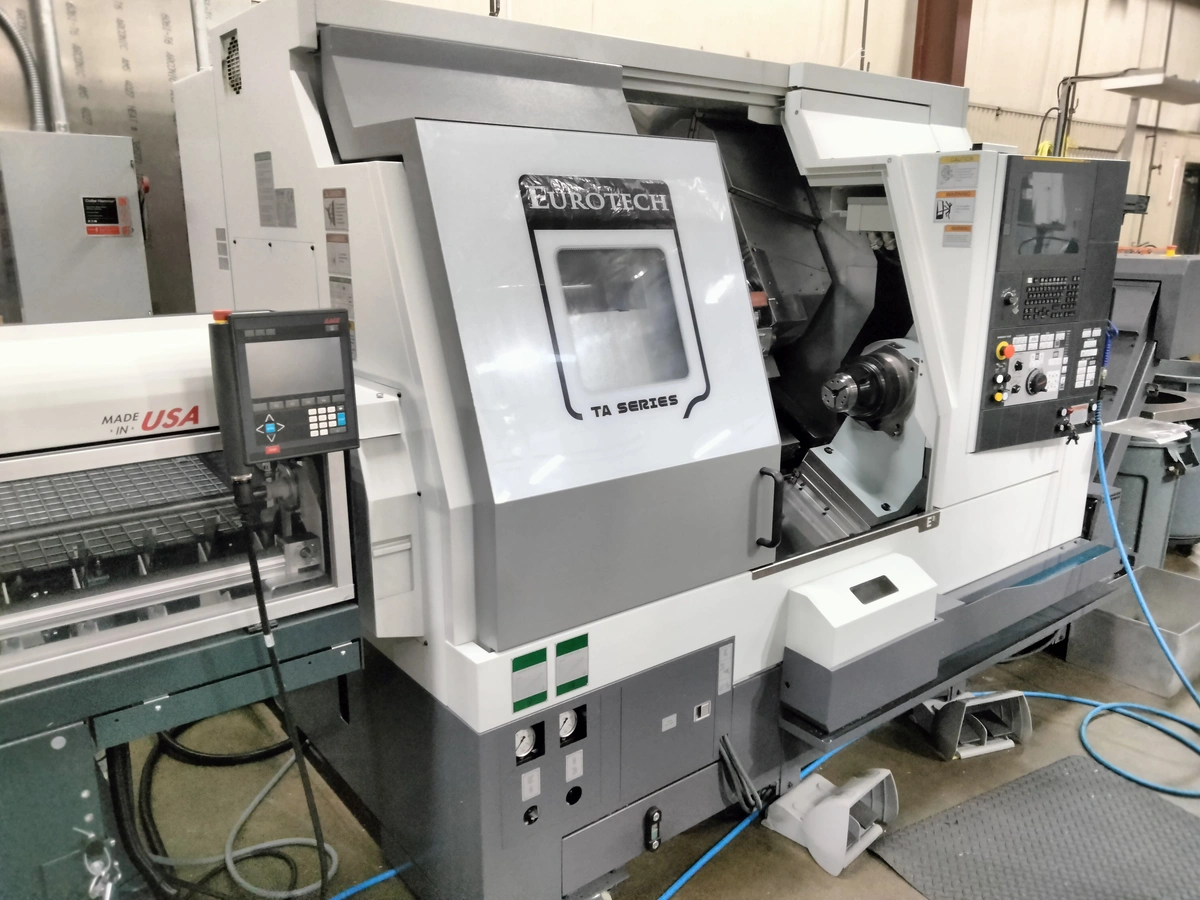

EUROTECH CMZ TA-20YS 640 CNC MULTI-TASKING CENTER

Swing Over Bed: 29.92"
Turning Diameter: 18.11"
Turning Length: 25.2"
Distance Between Centers: 0
Distance Between Spindles: 24.6"
Chuck Size 1, 2: Collet, Collet
Spindle Nose 1, 2: 0
Spindle Bore Diameter 1, 2: 3.2"
Bar Capacity 1, 2: 2.6"
Spindle Speeds 1, 2: 4000, 4500 RPM
Spindle Horsepower 1, 2: 30, 18.8 HP
B - Axis Head Indexing: 0
B - Axis Milling Spindle Speed: 0
B - Axis Milling Spindle Taper: 0
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 0
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 12.2"
Z - Axis Travel Z1, Z2, Z3: 25.1"
Y - Axis Travel Y1, Y2, Y3: 4.73"
C - Axis Indexing 1, 2: .001 Degrees
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2, X3: 0
Rapid Traverse Rates Z1, Z2, Z3: 0
Rapid Traverse Rates Y1, Y2, Y3: 0
Turret Tool Positions 1, 2, 3: 15
Turret Rotary Tool Speeds 1, 2, 3: 12,000 RPM
Turret Rotary Tool Horse Power 1, 2, 3: 15.5 HP
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 16535 LBS.
