| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 51.18" | 1,300 mm |
| Table-W | 21.65" | 549.91 mm |
| Weight on Table | 2,640 lb | 1,197.5 kg |
| Spindle Nose to Table Top | 5.9 ~ 25.98 | 5.9 ~ 25.98 |
| X - Axis Travel | 41.34" | 1,050 mm |
| Y - Axis Travel | 20.08" | 510.03 mm |
| Z - Axis Travel | 20.08" | 510.03 mm |
| Rapid Traverse Rate - X | 1,417 in/min. | 36 m/min. |
| Rapid Traverse Rate - Y | 1,417 in/min. | 36 m/min. |
| Rapid Traverse Rate - Z | 1,417 in/min. | 36 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 CT | 40 CT |
| Number of Gear Ranges | 0 | 0 |
| Main Motor | 25 hp | 18.6 kW |
| Vertical Turning Table Size, Number Of Tables | 0" | 0 mm |
| Automatic Tool Changer | 30 | 30 |
| Tool Diameter | 3.15, 4.92 | 3.15, 4.92 |
| Tool Length | 13.78" | 350.01 mm |
| Tool Weight | 17.6 lb | 8 kg |
| Machine Weight | 15,180 lb | 6,885.5 kg |
| Control | CNC (FUSION 640) | CNC (FUSION 640) |
| Weight | 16000.00 | 16000.00 |
Number Of Tables / Pallets: 1
Table Size : 51.18" X 21.65"
Weight On Table: 2640 LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 5.9" ~ 25.98"
X - Axis Travel: 41.34"
Y - Axis Travel: 20.08"
Z - Axis Travel: 20.08"
A - Axis Travel: 0
B - Axis Travel: 0
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 1417, 1417, 1417 IPM
Cutting Feed Rate: 0
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Number Of Gear Ranges: 0
Main Motor: 25
Vertical Turning Table Size, Number Of Tables: 0
Table Spindle Speed Vertical Turning: 0
Table Spindle Horse Power Vertical Turning: 0
Automatic Tool Changer: 30
Tool Diameter: 3.15", 4.92"
Tool Length: 13.78"
Tool Weight: 17.64 LBS
Machine Weight: 15,180 LBS
MAZATROL FUSION 640M CNC COLOR CONVERSATIONAL CONTROL
SYNCHRONIZED TAPPING
NAVIGATION
MAZATROL HELICAL
MAZATROL CO-OR SHIFT
MAZATROL PLANET TAP
AUTO TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
MIST COLLECT SYSTEM
YELLOW JIB CRANE 1/8 TON

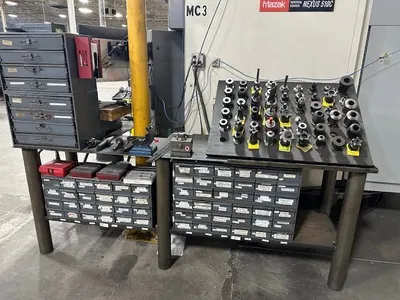

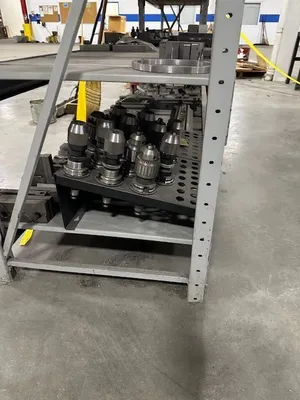

FULL CAROUSEL OF TOOLING AND PERISABLES INCLUDED
