MAZAK QTN NEXUS 200 CNC UNIVERSAL LATHE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
MAZAK
Model:
NEXUS QTN 200
Year:
2002
Stock #:
9790
Status:
For Sale

Description

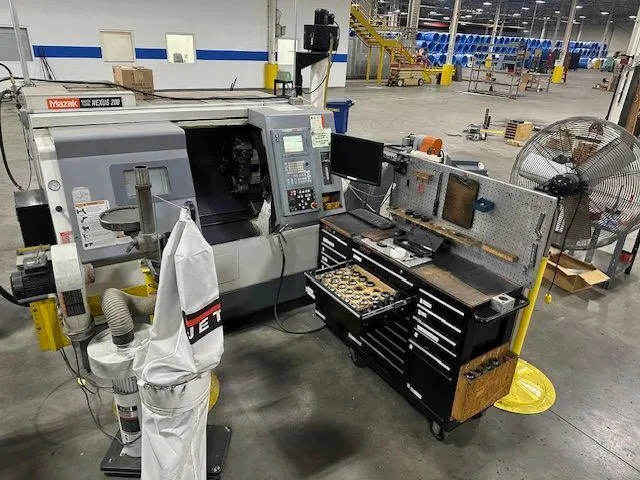

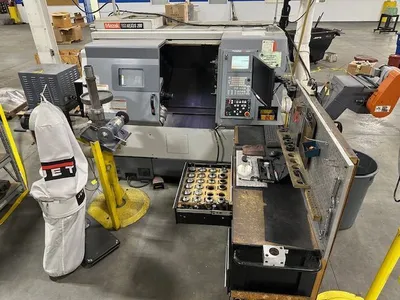

MAZAK QTN NEXUS 200 CNC Universal Lathe, 2002 model. Features 24" swing over bed, 20.1" machining length, and 14" turning diameter. Equipped with MAZATROL FUSION 640T, auto tool setter, and 12-position turret. Includes tooling cabinet and accessories.

Swing Over Bed24"609.6 mm
Machining Length20.1"510.54 mm
Distance Between Centers22"558.8 mm
Distance Between Spindles0"0 mm
Spindle Nose 1A2 -6A2 -6
Spindle Bar Capacity 12.5"63.5 mm
Turning Diameter, Shaft Diameter14"355.6 mm
Spindle Speeds 15,000 RPM5,000 RPM
Spindle Horsepower 135 hp26.1 kW
Spindle Bore Diameter 13"76.2 mm
X1 - Axis Travel7.5"190.5 mm
Z1 - Axis Travel21.12"536.45 mm
Rapid Traverse Rate - X11,181 in/min.500 mm/sec.
Rapid Traverse Rate - Z11,299 in/min.549.9 mm/sec.
Spindle Torque00
Gear Ranges00
Turret Configuration 11212
Turret Rotary Tool Spindle Speed 10 RPM0 RPM
Turret Rotary Tool Horse Power 10 hp
Tailstock TaperMT 5MT 5
Programmable TailstockYESYES
Tailstock Travel21.75"552.45 mm
# Axis22
Bar Capacity2.5"63.5 mm
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (FUSION 640T)CNC (FUSION 640T)
Weight10,80010,800

MAZATROL FUSION 640T CNC COLOR CONVERSATIONAL CONTROL
BACKGROUND PATH CHECK
AUTO TOOL SETTER
12 POSITION TURRET
COLLET NOSE
CHIP CONVEYOR
MIST COLLECT SYSTEM
CHUCK OPEN CLOSE CONFIRMATION

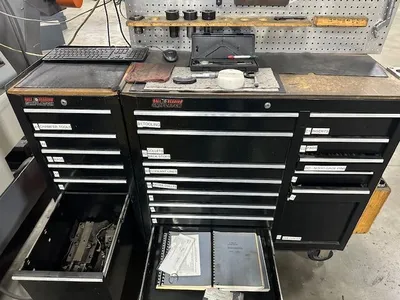

COMES COMPLETE WITH TOOLING CABINET, PERISHABLES AND MISCELANEOUS TOOLING IN PHOTO
COMPUTER, KEY BOARD AND PEDESTAL GRINDER INCLUDED IN PHOTO
