MAZAK NEXUS VCN 510CII CNC VERTICAL MACHINING CENTER
Unavailable

MAZAK NEXUS VCN 510CII CNC VERTICAL MACHINING CENTER

Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VCN510CII
Year:
2009
Stock #:
9793

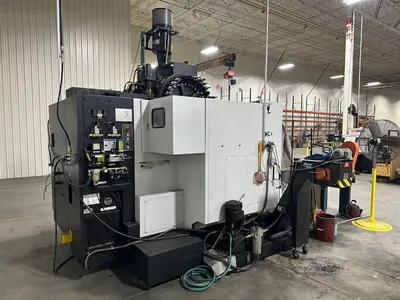

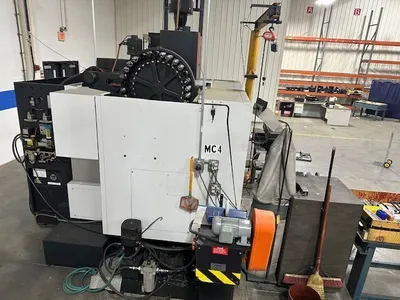

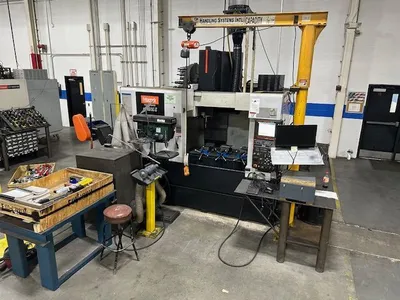

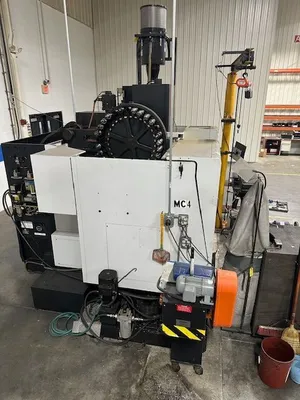

MAZAK NEXUS VCN 510CII CNC Vertical Machining Center, 2009 model, offers a spacious 51.18" x 21.65" table and 12,000 RPM spindle. Features MAZAK MATRIX control, chip conveyor, and includes tools like 3 Kurt vices and a Renishaw touch sensor.
Number Of Tables / Pallets11
Table-L51.18"1,300 mm
Table-W21.65"549.91 mm
Weight on Table2,540 lb1,152.1 kg
Spindle Nose to Table Top5.9" ~ 25.985.9" ~ 25.98
X - Axis Travel41.34"1,050 mm
Y - Axis Travel20.08"510.03 mm
Z - Axis Travel20.08"510.03 mm
Rapid Traverse Rate - X1,417 in/min.36 m/min.
Rapid Traverse Rate - Y1,417 in/min.36 m/min.
Rapid Traverse Rate - Z1,417 in/min.36 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle Taper4040
Main Motor25 hp18.6 kW
Tool Diameter3.5", 4.92"3.5", 4.92"
Tool Length13.78"350.01 mm
Tool Weight17.6 lb8 kg
Machine Weight15,300 lb6,940 kg
ControlCNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)

MAZAK MATRIX CNC CONTROL
ALL AVAILABLE MANUALS
ETHERNET PORT
CHIP CONVEYOR
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
COMPARISON STOP, G54.1, SYNC MILL TAP, VARIABLE 600 MACRO
EIA HELICAL TAP CYCLE, EIA PATTER CYCLE, TILTED WORK PLANE
PITCH ERROR COMP.
AUTOMATIC TOOL LENGTH MEASUREMENT RENISHAW TS27R TOUCH SENSOR
MIST COLLECT SYSTEM
MAZAK HIGH PRESSURE THROUGH SPINDLE COOLANT 213 PSI

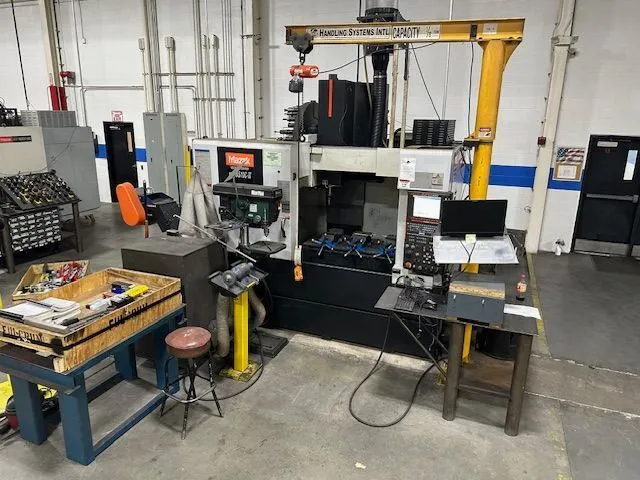

YELLOW JIB CRANE 1/8 TON

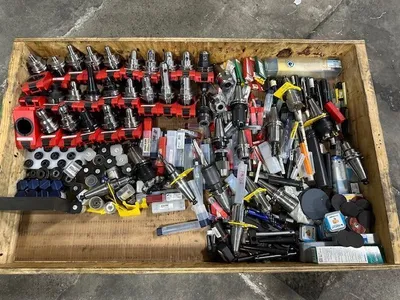

35 CAT 40 TOOL HOLDERS
ANY AND ALL PARISHABLES, DRILLS INSERTS, TOOLING MUST GO
