DOOSAN NHP 6300 CNC 4 AXIS HORIZONTAL MACHINING CENTER W/5TH AXIS MOUNTED ROTARY TABLE

DOOSAN NHP 6300 CNC 4 AXIS HORIZONTAL MACHINING CENTER W/5TH AXIS MOUNTED ROTARY TABLE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHP 6300
Year:
2018
Stock #:
9865
Status:
For Sale

Description

2018 Doosan NHP 6300 CNC 4-Axis Horizontal Machining Center with 5th Axis Rotary Table. Includes FANUC control, thru spindle coolant, and tool length probe. Pallet size 24.8" square, 2,364 ipm rapid rates, 60-tool changer. Max spindle speed 15 RPM. Used.

Pallet Size - L24.8"629.92 mm
Pallet Size - W24.8"629.92 mm
Number of Pallets22
Pallet Weight Capacity3,307 lb1,500 kg
Pallet Surface to Spindle Center3.0" ~ 38.4"3.0" ~ 38.4"
Pallet Center To Spindle Gage Line3.9" ~ 37.4"3.9" ~ 37.4"
Workpiece Dimensions43.1 x 53.2 " Ht.43.1 x 53.2 " Ht.
X - AxisTravel41.3"1,049 mm
Y - Axis Travel35.4"899.16 mm
Z - Axis Travel39.4"1,000.8 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X2,364 in/min.60 m/min.
Rapid Traverse Rate - Y2364 ipm
Rapid Traverse Rate - Z2364 ipm
Cutting Feed Rate1,181 in/sec.1,799.8 m/min.
Spindle Speed15 RPM15 RPM
Spindle Taper5050
Number of Ranges22
Main Motor45 hp33.6 kW
Automatic Tool Changer6060
Tool Diameter4.9", 12.6"4.9", 12.6"
Tool Length24.8"629.92 mm
Tool Weight66.1 lb30 kg
Tool Change Time2 sec.2 sec.
Machine Weight39,700 lb18,007.6 kg
ControlCNC (FANUC 31I B5 CNC COLOR CONTROL)CNC (FANUC 31I B5 CNC COLOR CONTROL)

FANUC 31IB MODEL B5 CNC CONTROL
THRU SPINDLE COOLANT
CHIP CONVEYOR
SCALES X, Y, & Z
FLOOD AND FLUSHING COOLANT
PCMCI CARD SLOT
USB PORT

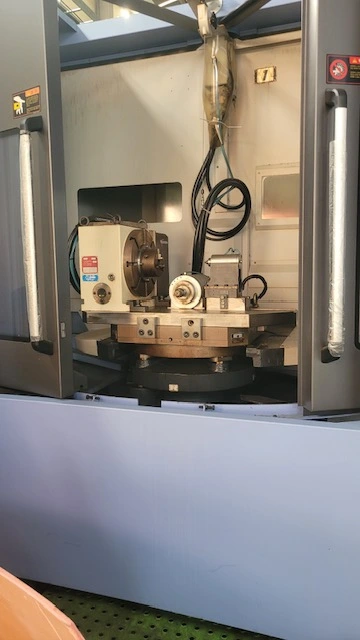

320MM NC ROTARY TABLE
RENISHAW PART PROBE
TOOL LENGTH MEASUREMENT TOUCH PROBE
RIGID TAPPING
CUSTOM MACRO B
EMBEDDED ETHERNET FUNCTION
936 ON HOURS, 169 CUTTING HOURS
