MAZAK INTEGREX i - 630V/6 CNC MULTI AXIS HORIZONTAL/VERTICAL MULTI TASKING CENTER CENTER
Unavailable

MAZAK INTEGREX i - 630V/6 CNC MULTI AXIS HORIZONTAL/VERTICAL MULTI TASKING CENTER CENTER

CNC 5 Axis Machines
Manufacturer:
MAZAK
Model:
INTEGREX I - 630/V6
Year:
2022
Stock #:
9871
2022 MAZAK INTEGREX i-630V/6 CNC Multi-Axis Center, featuring dual tables, 50 hp, rapid traverse rates of 2,047 in/min across axes, 160-tool automatic changer, and advanced Mazatrol Smooth AI control. Ideal for precise multitasking operations. Equipped with various high-tech features and 1780 cutting hours.
Number Of Tables / Pallets22
Table Size - L24.8"629.92 mm
Table Size - W24.8"629.92 mm
Weight On Table3,858 lb1,750 kg
Main Spindle Horse Power50 hp37.3 kW
Main Spindle Speeds15,000 RPM15,000 RPM
Main Spindle Taper50.050.0
X - Axis Travel56"1,422.4 mm
Y - Axis Travel41"1,041.4 mm
Z - Axis Travel41"1,041.4 mm
A - Axis Travel150 DEGREES150 DEGREES
B - Axis Travel220 DEGREES220 DEGREES
C - Axis Travel Table Indexing.0001.0001
Rapid Traverse Rate - X2,047 in/min.52 m/min.
Rapid Traverse Rate - Y2,047 in/min.52 m/min.
Rapid Traverse Rate - Z2,047 in/min.52 m/min.
Vertical Turning Table Size, Number Of Tables31.031.0
Vertical Turning Table Speed550 RPM550 RPM
Vertical Turning Table Horse Power50 hp37.3 kW
Automatic Tool Changer160160
Tool Length20"508 mm
Tool Weight66 lb29.9 kg
Machine Weight71,980 lb32,649.6 kg
ControlCNC (MAZATROL SMOOTH Ai CONTROL)CNC (MAZATROL SMOOTH Ai CONTROL)

SPINDLE CHILLER
CHIP CONVEYOR
RENISHAW PROBING
HAND HELD MPG

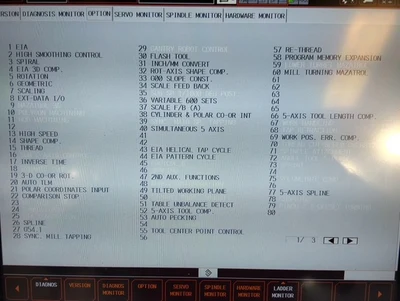

MAZATROL SMOOTH AI CNC CONVERSATIONAL CONTROL
250,000 IN TOOLING INCLUDED
STAIRS AND PLATFORM INCLUDED
MAZAK API
SEAMLESS CORNER CONTROL, VARIABLE ACC CONTROL, SUPER HIGH SPEED, RAPID OVERLAP
PROGRAM MEMORY EXPANSION, AUTOMATIC OPERATION ISS, ENGRAVING, SOLID MAZATROL
PATH ERROR SURPRESS CONTROL,
EIA, HIGH SMOOTHING CONTROL, SPIRAL, EIA 3D COMP, ROTATION,GEOMETRIC, SCALING, EXT-DATA I/O
HIGH SPEED, SHAPE COMP, THREAD, INVERSE TIME, AUTO TLM
3-D CO-OR ROT., AUTO ATLM, POLAR COORDINATE INPUT, COMPARRISON STOP
SPLINE, G54.1, SYNC. MILL TAPPING
G54.1, SYNC. TAP, FLASH TOOL, INCH/MM CONVERT
SYNC MILL TAP, ROT-AXIS SHAPE COMP, GOO SLOPE CONST., SCALE FEEDBACK, VARIABLE 600 SETS
SCALE F/B, CYLINDER & POLAR C0-OR INT
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, 2ND AUX. FUNCTIONS
TILTED WORK PLANE, TABLE UNBALANCE DETECT, 5-AXIS TOOL COMP, AUTO PECKING, TOOL CENTER POINT CONTROL
RE-THREAD, PROGRAM MEMORY EXPANSION, MILL TURN MAZATROL, 5-AXIS TOOL LENGTH COMP,
WORK POS. ERR. COMP., 5-AXIS SPLINE
1780 CUTTING HOURS
