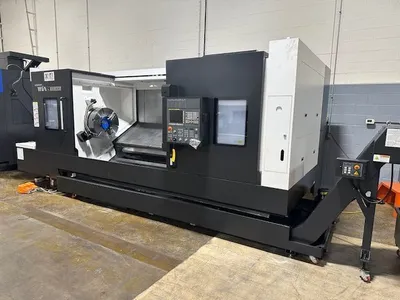

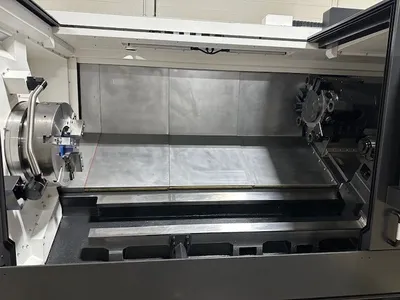

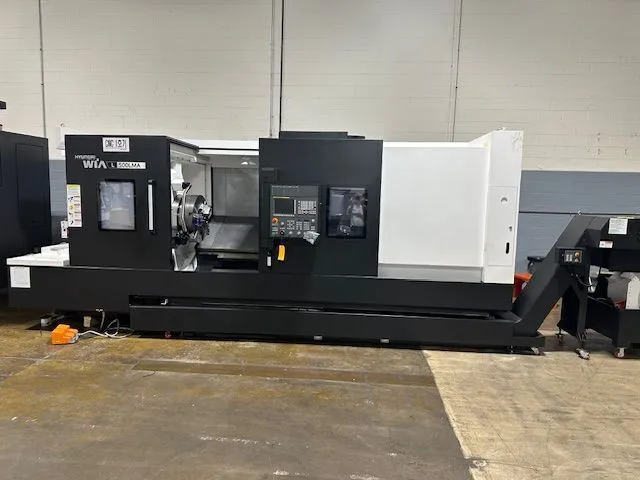

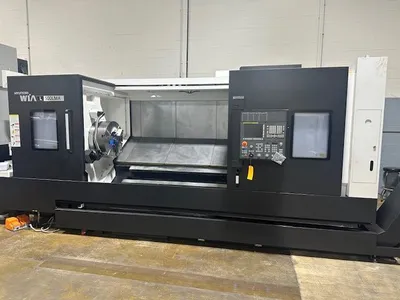

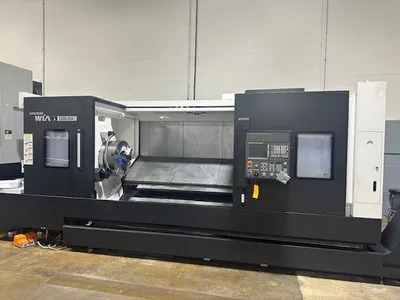

HYUNDAI WIA L500LMA CNC 10.8" BORE BOX WAY UNIVERSAL TURNING CENTER W/MILLING

HYUNDAI WIA L500LMA CNC 10.8" BORE BOX WAY UNIVERSAL TURNING CENTER W/MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
HYUNDAI WIA
Model:
L500LMA
Year:
2024
Stock #:
9886
Status:
For Sale

Description

Enhance your production with the 2024 used HYUNDAI WIA L500LMA CNC Turning Center. Features 3-axis, 24" chucks, 10.8" Spindle Bore, 60 hp spindle, Fanuc 32iB, chip conveyor, and tool presetter. Limited 200 hours on time, live tooling included.

Swing Over Bed40.6"1,031.2 mm
Machining Length82.7"2,100.6 mm
Chuck Size 124"609.6 mm
Spindle Nose 1A1-15A1-15
Spindle Bar Capacity 110.8"274.32 mm
Turning Diameter, Shaft Diameter27.2"690.88 mm
Spindle Speeds 110.8 RPM10.8 RPM
Spindle Horsepower 160 hp44.7 kW
Spindle Bore Diameter 110.8"274.32 mm
X - Axis Travel15.7"398.78 mm
Z - Axis Travel87.7"2,227.6 mm
C - Axis Travel 10°0°
Rapid Traverse Rate - X1788 in/min.333.6 mm/sec.
Rapid Traverse Rate - Z1709 in/min.300.1 mm/sec.
Turret Configuration 11212
Turret Rotary Tool Spindle Speed 14,000 RPM4,000 RPM
Turret Rotary Tool Horse Power 115 hp
Tailstock Quill Diameter5.2"132.08 mm
Tailstock TaperMT 5MT 5
Tailstock Quill Travel5.2"132.08 mm
Programmable TailstockYESYES
Tailstock Travel82"2,082.8 mm
# Axis33
Bar Capacity10.8"274.32 mm
Tailstock'Yes''Yes'
Live Tooling'Yes''Yes'
Sub Spindle'No''No'
ControlCNC (FANUC 32IB CNC COLOR CONTROL)CNC (FANUC 32IB CNC COLOR CONTROL)
Weight33,51033,510
Thread Cutting Retract
Thread Synchronized Cutting
Variable Lead Threading

Tool Pre Setter

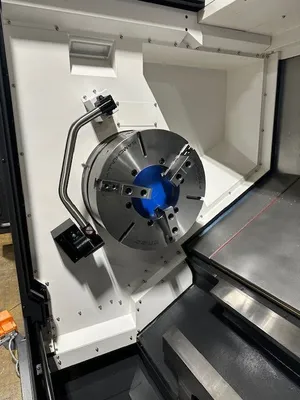

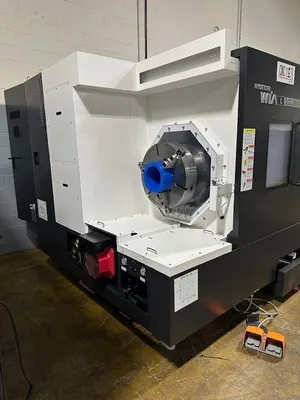

(2) 24" 3-jaw Manual Chuck, Front and Rear Spindle (W/10.8 Bore Each)
(1) O.D. Rotary Head
(1) I.D. Rotary Head
Chip Conveyor
Fanuc 32iB Control
200 Hours On time
FANUC I SERIES CONTROL
CHIP CONVEYOR
TOOL SETTER
HEAVY DUTY BOX WAY CONSTRUCTION
PROGRAMMABLE TAILSTOCK
