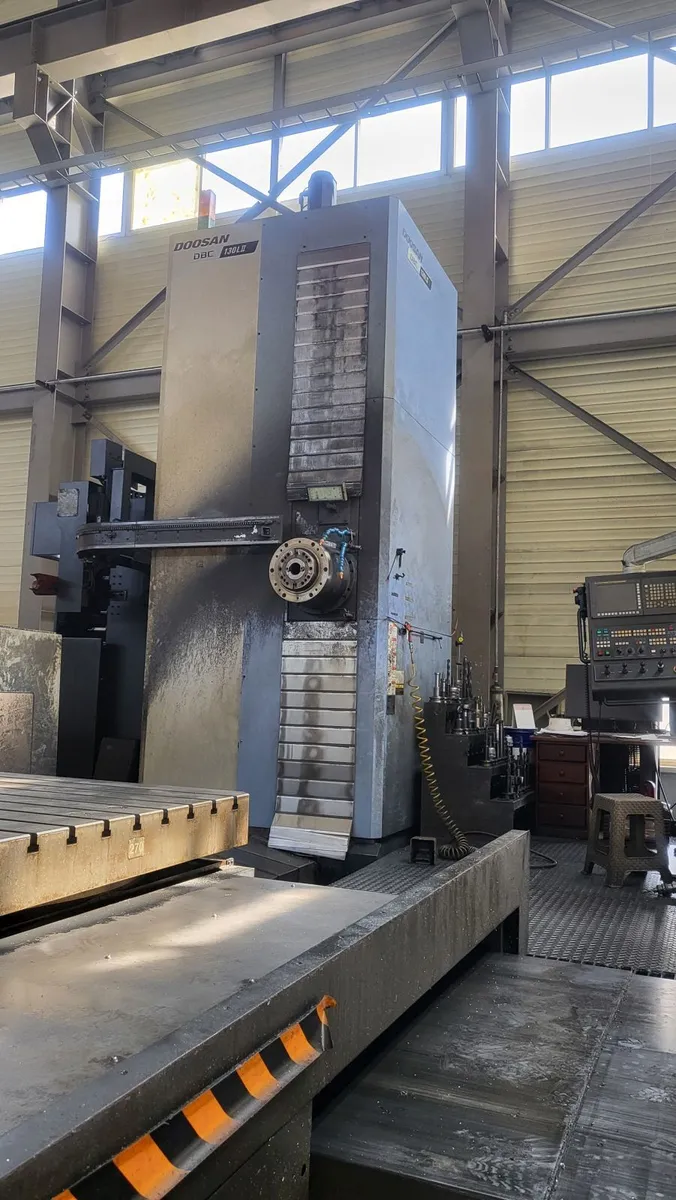

DOOSAN DBC 130LII 5.1 4 AXIS CNC TABLE TYPE HORIZONTAL BORING MILL

DOOSAN DBC 130LII 5.1 4 AXIS CNC TABLE TYPE HORIZONTAL BORING MILL

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Horizontal Table Type
Manufacturer:
DOOSAN
Model:
DBC 130LII
Year:
2017
Stock #:
9917
Status:
For Sale
Serial #:
MB0004-000263

Description

DOOSAN DBC 130LII CNC Horizontal Boring Mill, 5.1'' table, 2017 model. A durable used machine suitable for your industrial needs. Enhance your precision and performance with a reliable equipment choice.

Table Size - L70.8"1,798.3 mm
Table Size - W62.9"1,597.7 mm
Table Capacity33,000 lb14,968.6 kg
Table Indexing.001 DEGREE N/C ROTARY TABLE.001 DEGREE N/C ROTARY TABLE
Spindle Diameter5.1"129.54 mm
Spindle Taper5050
Spindle Speed2,500 RPM2,500 RPM
Spindle Torque2475.02475.0
Number Of Ranges33
Main Motor40 hp29.8 kW
X - Axis Travel157.4"3,998 mm
Y - Axis Travel98.4"2,499.4 mm
Z - Axis Travel63"1,600.2 mm
W - Axis Travel27.8"706.12 mm
Automatic Tool Changer Capacity4040
Max Tool Length23.6"599.44 mm
Max Tool Weight55 lb24.9 kg
Machine Weight115,600 lb52,435.3 kg
ControlCNC (FANUC 31B CNC COLOR CONTROL)CNC (FANUC 31B CNC COLOR CONTROL)

COOLANT THRU SPINDLE SYSTEM
ALL MANUALS
CHIP CONVEYOR
STEEL WAY COVERS
LINEAR SCALE X,Y,Z
OIL JACKET TEMPERATURE CONTROLLED SPINDLE CHILLER
RIGID TAPPING
CUSTOM MACRO B
PORTABLE HAND HELD MPG
.001 4 AXIS N/C ROTARY TABLE
