DOOSAN PUMA GT 2600M CNC UNIVERSAL TURNING CENTER WITH MILLING

DOOSAN PUMA GT 2600M CNC UNIVERSAL TURNING CENTER WITH MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DOOSAN
Model:
GT2600M
Year:
2017
Stock #:
9931
Status:
For Sale

Description

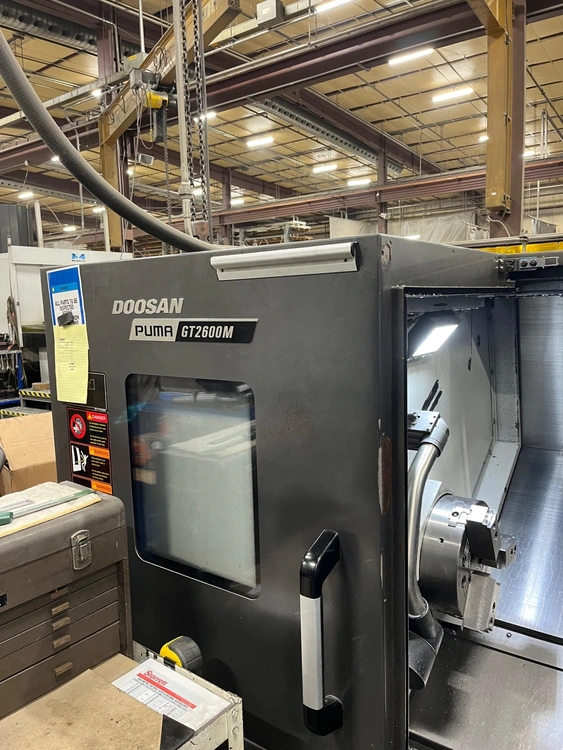

DOOSAN PUMA GT 2600M available, a 2017 model CNC universal turning and milling center. This used 2-axis and 3-axis lathe from renowned manufacturer DOOSAN is ideal for precise and efficient machining tasks.

Swing Over Bed24.8"629.92 mm
Machining Length25.9"657.86 mm
Distance Between Centers27"685.8 mm
Distance Between Spindles0"0 mm
Chuck Size 110"254 mm
Spindle Nose 1A2 - 8A2 - 8
Spindle Bar Capacity 13.18"80.772 mm
Turning Diameter, Shaft Diameter16.1"408.94 mm
Spindle Speeds 13,500 RPM3,500 RPM
Spindle Horsepower 130 hp22.4 kW
Spindle Bore Diameter 13.6"91.44 mm
W - Axis Travel Sub Spindle00
Rapid Traverse Rate - X1945 in/min.400.1 mm/sec.
Rapid Traverse Rate - Z11,181 in/min.500 mm/sec.
Rapid Traverse Rate - C220220
Spindle Torque459459
Gear Ranges00
Turret Configuration 11212
Turret Rotary Tool Spindle Speed 15,000 RPM5,000 RPM
Turret Rotary Tool Horse Power 17.4 hp
Tailstock Quill Diameter3.9"99.06 mm
Tailstock TaperMT 5MT 5
Tailstock Quill Travel3.9"99.06 mm
Programmable TailstockYESYES
Tailstock Travel26.8"680.72 mm
Bar Capacity3.2"81.28 mm
TailstockYESYES
Sub SpindleNONO
ControlCNC (Fanuc Series I)CNC (Fanuc Series I)
Weight0.000.00

FANUC SERIES I CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
10" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
