DOOSAN MYNX 7500/50II CNC VERTICAL MACHINING CENTER

DOOSAN MYNX 7500/50II CNC VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
DN SOLUTION
Model:
MYNX 7500/50 II
Year:
2023
Stock #:
9944
Status:
For Sale
Serial #:
MV0051-001752

Description

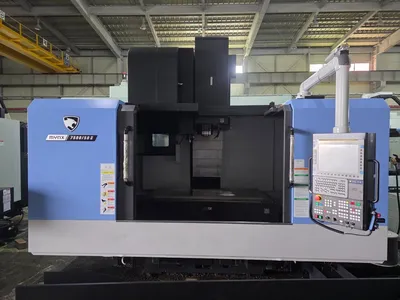

2023 DOOSAN MYNX 7500/50II CNC Vertical Machining Center, equipped with Fanuc Series I Control, thru spindle coolant, and chip conveyor. Features a 60" x 29.5" table, box ways, 6,000 RPM spindle, and 24-position ATC. Ideal for high precision tasks.

Number Of Tables / Pallets11

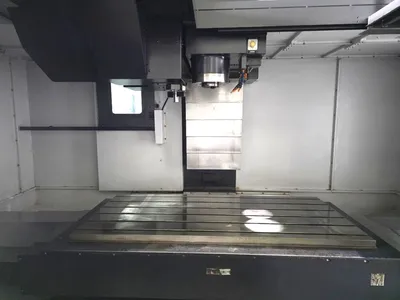

Table-L63"1,600.2 mm
Table-W29.5"749.3 mm
Weight on Table2,011 lb912.2 kg
Spindle Nose to Table Top7.9" ~ 32.4"7.9" ~ 32.4"
X - Axis Travel60"1,524 mm
Y - Axis Travel30.3"769.62 mm
Z - Axis Travel24.6"624.84 mm
Rapid Traverse Rate - X1,182 in/min.30 m/min.
Rapid Traverse Rate - Y1,182 in/min.30 m/min.
Rapid Traverse Rate - Z945 in/min.24 m/min.
Spindle Speed6,000 RPM6,000 RPM
Spindle Taper5050
Number of Gear Ranges22
Main Motor30 hp22.4 kW
Automatic Tool Changer2424
Tool Diameter4.9", 8.7"4.9", 8.7"
Tool Length13.8"350.52 mm
Tool Weight44 lb20 kg
Machine Weight29,800 lb13,517.1 kg
ControlCNC (DOOSAN FANUC SERIES I CNC CONTROL)CNC (DOOSAN FANUC SERIES I CNC CONTROL)

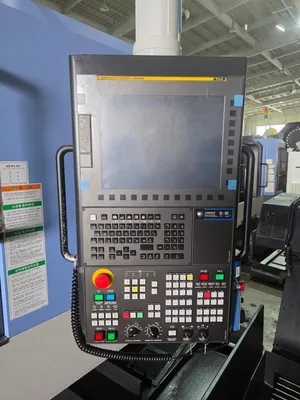

DOOSAN FANUC SERIES I CNC CONTROL
THRU SPINDLE COOLANT

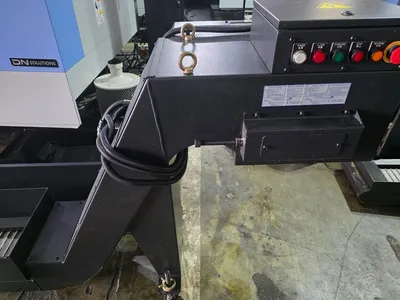

CHIP CONVEYOR
RIGID TAPPING
AUTO POWER OFF
PORTABLE HAND HELD MPG
15" COLOR CRT
BIG PLUS SPINDLE
AIR BLOWER

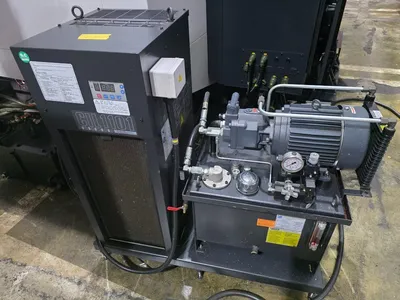

SPINDLE CHILLER
DOOSAN TOOL LOAD MONITORING SYSTEM
400 PAIRS TOOL OFFSETS
EMBEDDED ETHERNET FUNCTION
2MB PROGRAM STORAGE
DATA SERVER 1GB
DOOSAN EASY OPERATING SYSTEM
