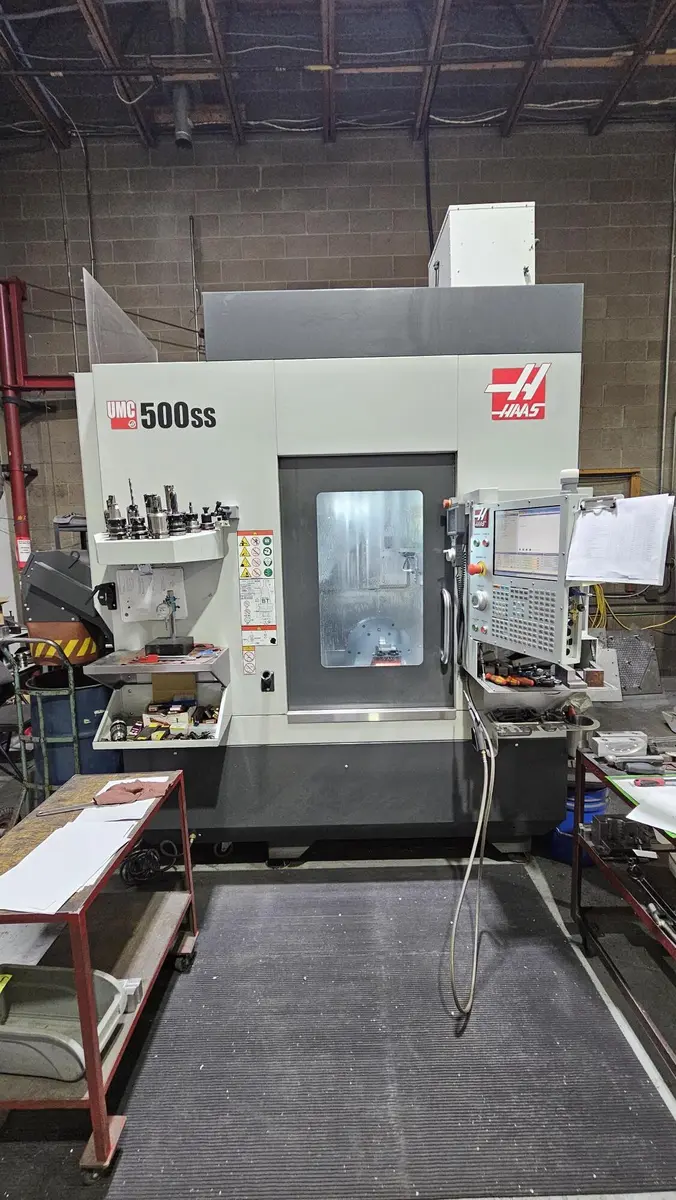

HAAS MODEL UMC - 500SS 5 - AXIS UNIVERSAL MACHINING CENTER

HAAS MODEL UMC - 500SS 5 - AXIS UNIVERSAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
HAAS
Model:
UMC-500SS
Year:
2021
Stock #:
9947
Status:
For Sale

Description

HAAS UMC-500SS 5-Axis CNC, 2021: This used machining center offers 30 hp, spindle speeds up to 12,000 RPM, and travels of 24"x16"x16". It features a 31-tool automatic changer, probing, rotary scale & 5 axis simultaneous machining, HAAS Connect, and more. Ideal for high precision tasks, it weighs 11,462 lbs.

Number Of Tables / Pallets11
Weight On Table500 lb226.8 kg
Integrated NC Rotary Table Size15.7"398.78 mm
Main Spindle Horse Power30 hp22.4 kW
Spindle Nose To Table420"10,668 mm
Main Spindle Speeds12,000 RPM12,000 RPM
Main Spindle Taper4040
X - Axis Travel24"609.6 mm
Y - Axis Travel16"406.4 mm
Z - Axis Travel16"406.4 mm
B - Axis Travel120 DEG. ~ -34 DEG.120 DEG. ~ -34 DEG.
C - Axis Travel Table Indexing360 DEGREES360 DEGREES
Rapid Traverse Rate - X900 in/min.22.9 m/min.
Rapid Traverse Rate - Y900 in/min.22.9 m/min.
Rapid Traverse Rate - Z900 in/min.22.9 m/min.
Cutting Feed Rate650 in/min.16.5 m/min.
Automatic Tool Changer5050
Tool Diameter25.5"647.7 mm
Tool Length12"304.8 mm
Tool Weight12 lb5.4 kg
ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)
Weight0.000.00

1GB MEMORY
RIGID TAPPING
300 PSI THROU SPINDLE COOLANT
HAAS CONNECT REMOTE MONITORING
EARLY POWER FAILURE DETECTION MODULE
POWER SURGE PROTECTION
WIFI CONNECT FOR THE HAAS CONTROL
ETHERNET INTERFACE
REMOTE JOG HANDLE WITH TOUCH SCREEN DISPLAY
WIRELESS INTUITIVE PROBING SYSTEM (PART PROBE & TOOL LENGTH MEASUREMENT PROBE)
HAAS DROP & SAFE RUN
PROGRAMMABALE COOLANT NOZZE;
BELT TYPE UPRIGHT CHIP CONVEYOR WITH CHIP TRAY FILTER KIT
CHIP STRAINER
MIST AWAY MIST EXTRACTOR
