| Swing Over Bed | 34.5" | 876.3 mm |
| Machining Length | 80" | 2,032 mm |
| Distance Between Centers | 84" | 2,133.6 mm |
| Turning Diameter, Shaft Diameter | 25.5" | 647.7 mm |
| Chuck Size 1 | 20" | 508 mm |
| Spindle Nose 1 | A2 - 15 | A2 - 15 |
| Spindle Bore Diameter 1 | 8.5" | 215.9 mm |
| Spindle Bar Capacity 1 | 8.5" | 215.9 mm |
| Spindle Speeds 1 | 1,200 RPM | 1,200 RPM |
| Spindle Horsepower 1 | 55 hp | 41 kW |
| X1 - Axis Travel | 20" | 508 mm |
| Z1 - Axis Travel | 80" | 2,032 mm |
| Rapid Traverse Rate - X1 | 710 in/min. | 300.6 mm/sec. |
| Rapid Traverse Rate - Z1 | 710 in/min. | 300.6 mm/sec. |
| Gear Ranges | 2 | 2 |

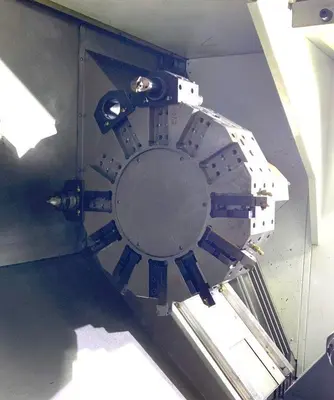

| Turret Configuration 1 | 12 | 12 |
| Tailstock Taper | # 5 | # 5 |
| Tailstock Quill Travel | 78" | 1,981.2 mm |
| Programmable Tailstock | YES | YES |
| # Axis | 2 | 2 |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (HAAS CNC CONTROL) | CNC (HAAS CNC CONTROL) |
| Weight | 24,900.00 | 24,900.00 |
HAAS CNC CONTROL
PROGRAMMABLE SERVO TAILSTOCK
MT 5 TAILSTOCK TAPER
20" 3 JAW MANUAL CHUCK FRONT
24" 3 JAW MANUAL CHUCK BACK
22" 3 JAW PNUEMATIC CHUCK ( NEW IN CRATE)
AIR CHUCK READY
2 SPEED GEAR BOX
RIGID TAPPING
REMOTE JOG HANDLE
ETHERNET
COOLANT SYSTEM
COMPENSATION TABLES
WIRELESS NETWORKING
MEDIA DISPLAY
MACROS
USB
1GB MEMORY
(7) O.D. HOLDERS
(5) I.D. BORING HOLDERS
CHIP CONVEYOR SYSTEM UPRIGHT BELT TYPE
This equipment is currently unavailable. Similar equipment available now is shown below.
