| Pallet Size - L | 15.7" | 398.78 mm |
| Pallet Size - W | 15.7" | 398.78 mm |
| Number of Pallets | 2 | 2 |
| Pallet Weight Capacity | 880 lb | 399.2 kg |
| Pallet Surface to Spindle Center | 3.15" ~ 27.95" | 3.15" ~ 27.95" |
| Pallet Center To Spindle Gage Line | 2.76" ~ 27.96" | 2.76" ~ 27.96" |
| Workpiece Dimensions | 24.8" X 35.43" | 24.8" X 35.43" |
| X - AxisTravel | 22.05" | 560.07 mm |
| Y - Axis Travel | 25.2" | 640.08 mm |
| Z - Axis Travel | 25.2" | 640.08 mm |
| B - Axis Travel | 1 DEGREE | 1 DEGREE |
| Rapid Traverse Rate - X | 2,362 in/min. | 60 m/min. |
| Rapid Traverse Rate - Y | 2362 ipm | |
| Rapid Traverse Rate - Z | 2362 ipm | |
| Cutting Feed Rate | 2,362 in/sec. | 3,599.7 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 | 40 |
| Main Motor | 40 hp | 29.8 kW |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.74", 5.9" | 3.74", 5.9" |
| Tool Length | 16.3" | 414.02 mm |
| Tool Weight | 26 lb | 11.8 kg |
| Tool Change Time | 1.2 sec. | 1.2 sec. |
| Machine Weight | 24,000 lb | 10,886.2 kg |

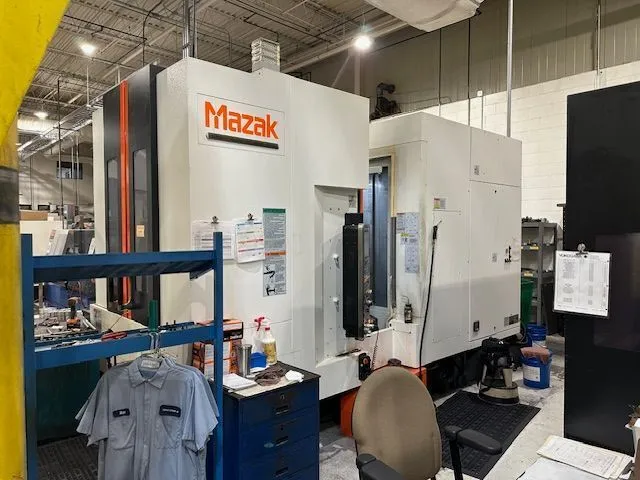

| Control | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) |
| Weight | 24000.00 | 24000.00 |
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
BACKGROUND TOOL PATH CHECK
THRU SPINDLE COOLANT SYSTEM (1000 PSI) SUPERFLOW V8A/1000
SYNCHRONOUS TAPPING
SPINDLE CHILLER
AUTO PECKING CYCLE WITH LOAD MONITOURING
RENISHAW PROBE MP 60
AUTO TOOL LENGTH MEASUREMENT
REAR DISCHARGE CHIP CONVEYOR
ADAPTIVE FEEDRATE CONTROL
TOOL LIFE MONITORING
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC. SCALING, EXT-DSATA I/O
SHAPE COMP, THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
COMPARISON STOP, G54.1, INCH/METRIC, G00 SLOPE CONST., VARIABLE 600 SETS
EIA HELICAL TAP, EIA HELICAL PATTERN, TILTED WORK PLANE, PITCH ERROR COMP
CT - 5TH AXIS
ALL AVAILABLE MANUALS
