| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 122.04" | 3,099.8 mm |
| Table-W | 35.4 mm | 1.3937" |
| Weight on Table | 4,740 lb | 2,150 kg |
| X - Axis Travel | 98.4" | 2,499.4 mm |
| Y - Axis Travel | 35.4" | 899.16 mm |
| Z - Axis Travel | 31.4" | 797.56 mm |
| B - Axis Travel | 1 DEGREE | 1 DEGREE |
| Rapid Traverse Rate - X | 2,363 in/min. | 60 m/min. |
| Rapid Traverse Rate - Y | 2,363 in/min. | 60 m/min. |
| Rapid Traverse Rate - Z | 2,363 in/min. | 60 m/min. |
| Spindle Speed | 10,000 RPM | 10,000 RPM |
| Spindle Taper | 50 CT | 50 CT |

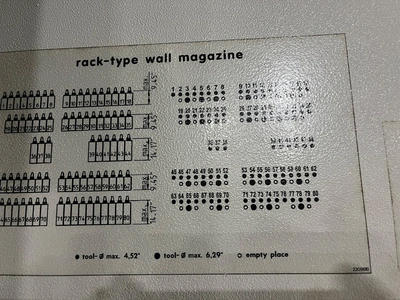

| Automatic Tool Changer | 80 | 80 |
| Tool Diameter | 4.52" / 6.29" | 4.52" / 6.29" |
SIEMENS 840D CNC CONTROL
WIRED 4TH AXIS (NO TABLE)
CHIP CONVEYOR
HIGH PRESSURE COOLANT SYSTEM
TRANSFORMER

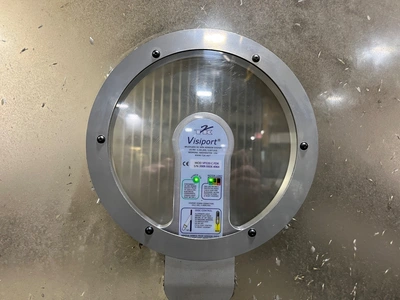

VISIPORT
RENISHAW OMP60
BLUM TOOL MEASURING
ELECTRONIC HANDWHEEL
COMPCAD - HIGH SPEED MACHINING
3D MACHINING, 3D TOOL COMPENSATION
TURNING/MILLING CYCLE
