| Swing Over Bed | 27.4" | 695.96 mm |
| Machining Length | 18.83" | 478.28 mm |
| Distance Between Centers | 22.08" | 560.83 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2 - 6 | A2 - 6 |
| Spindle Bar Capacity 1 | 2" | 50.8 mm |
| Turning Diameter, Shaft Diameter | 16.25" | 412.75 mm |
| Spindle Speeds 1 | 4,500 RPM | 4,500 RPM |
| Spindle Horsepower 1 | 20 hp | 14.9 kW |
| Spindle Bore Diameter 1 | 2.44" | 61.976 mm |
| X1 - Axis Travel | 8.5" | 215.9 mm |
| Z1 - Axis Travel | 25" | 635 mm |
| Rapid Traverse Rate - X1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. | 500 mm/sec. |
| Turret Configuration 1 | 12 | 12 |
| Tailstock Taper | # 5 | # 5 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 14.17" | 359.92 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 2" | 50.8 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (MAZAK MAZATROL SMART CNC COLOR CONTROL) | CNC (MAZAK MAZATROL SMART CNC COLOR CONTROL) |
| Weight | 11,000 | 11,000 |

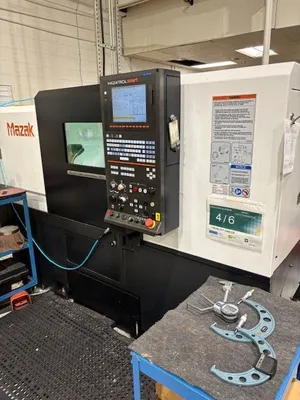

MAZATROL SMART CNC CONVERSATIONAL CONTROL

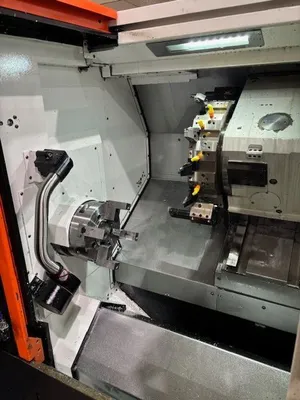

AUTOMATIC TOOL EYE
PROGRAMMABLE TAILSTOCK W/ CENTER
ALL AVAILABLE MANUALS
AVAILABLE TOOL HOLDERS

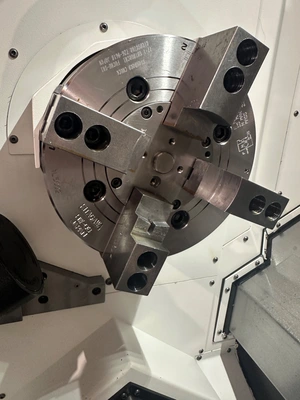

KITAGAWA 8" 4 JAW HYDRAULIC CHUCK WITH (1)SET OF HARD JAWS, 1 SET OF SOFT JAWS USED.
ALL TOOL BLOCK HOLDERS AND WEDGE BLOCK PICTURED AT INSPECTION TODAY

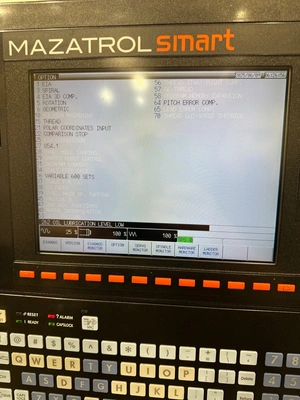

EIA, SPIRAL, ROTATION, GEOMETRIC
THREAD, POLAR COORDINATE INPUT
EIA 3D COMP, COMPARISON STOP, G54.1
VARIABLE 600 SETS
PITCH ERROR COMP.

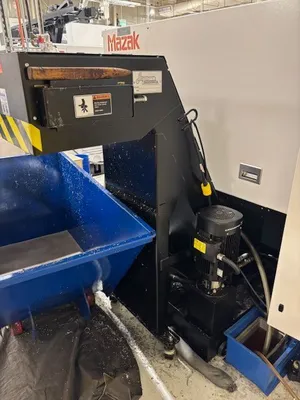

CHIP CONVEYOR
MAZAK HIGH PRESSURE COOLANT
