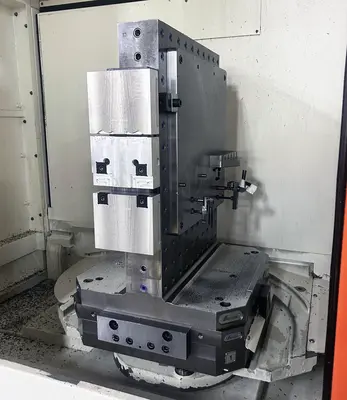

| Pallet Size - L | 19.69" | 500.13 mm |
| Pallet Size - W | 19.69" | 500.13 mm |
| Number of Pallets | 2 | 2 |
| Pallet Weight Capacity | 1,102 lb | 499.9 kg |
| Pallet Surface to Spindle Center | 2.76" ~ 34.25" | 2.76" ~ 34.25" |
| Pallet Center To Spindle Gage Line | 3.94"~ 32.68" | 3.94"~ 32.68" |
| Workpiece Dimensions | 31.5" X 39.37" | 31.5" X 39.37" |
| X - AxisTravel | 28.74" | 730 mm |
| Y - Axis Travel | 28.74" | 730 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate - X | 2,362 in/min. | 60 m/min. |
| Rapid Traverse Rate - Y | 2362 ipm | |
| Rapid Traverse Rate - Z | 2362 ipm | |
| Cutting Feed Rate | 2,362 in/sec. | 3,599.7 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 | 40 |
| Main Motor | 40 hp | 29.8 kW |
| Automatic Tool Changer | 120 | 120 |
| Tool Diameter | 3.74", 6.94" | 3.74", 6.94" |
| Tool Length | 16.54" | 420.12 mm |
| Tool Weight | 26 lb | 11.8 kg |
| Machine Weight | 27,000 lb | 12,247 kg |
| Control | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) |

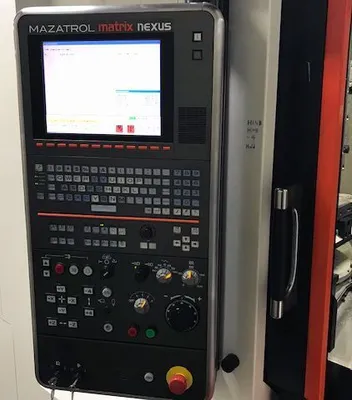

MAZATROL MATRIX CNC COLOR CONTROL
USB I/F (2-PORT), CARDBUS I/F (2-PORT), LAN PORT, ADD EIA/ISO
SYNCH TAPPING, G00 SLOPE CONSTANT
ADDITIONAL WORK PIECE COORDINATES
INCH/ METRIC
AUTO TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION
NIAGARA FLOOD COOLANT
COOLERS FOR BALLSCREWS XYZ
SPINDLE CHILLER AND HYDRAULIC UNIT
AUTO POWER OFF
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
SHAPE COMP, THREAD, INVERSE TIME, POLAR COORDINATE INPUT, COMPARISON STOP
AUTO ATLM, G54.1, SYNC. MILL TAPPING, INCH/METRIC G00 SLOPE CONST., VARIABLE 600 SETS
EIA HELICAL TAP, EIA PATTERN CYCLE, TILTED WORK PLANE

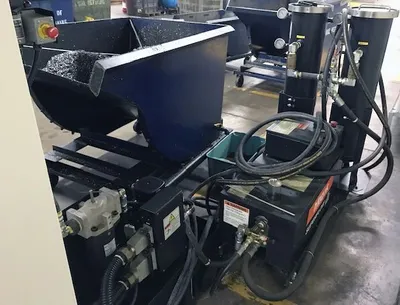

1000 PSI COOLANT THRU SPINDLE
PREPPED FOR MMS-B OPTICAL TYPE OMP 60 RENISHAW PROBE
OMP 60 RENISHAW PROBE INCLUDED
AUTO PECKING CYCLE WITH LOAD DETECTION
UPGRADE CYBER TOOL MANAGEMENT TO SMOOTH TOOL

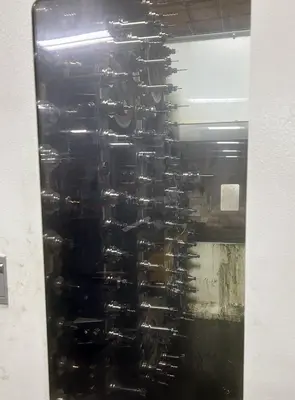

120 AUTO TOOL CHANGER
