| Swing Over Bed | 33.07" | 839.98 mm |
| Turning Diameter | 22.84" | 580.14 mm |
| Turning Length | 118.2" | 3,002.3 mm |
| Distance Between Centers | 125" | 3,175 mm |
| Spindle Nose 1 | A2 - 15 | A2 - 15 |
| Spindle Bore Diameter 1 | 7.28" | 184.91 mm |
| Bar Capacity 1 | 7.2" | 182.88 mm |
| Spindle Speeds 1 | 2,000 RPM | 2,000 RPM |
| Spindle Horsepower 1 | 50 hp | 37.3 kW |
| X1 - Axis Travel | 13.38" | 339.85 mm |
| Z1 - Axis Travel | 119.8" | 3,042.9 mm |
| Y1 - Axis Travel | 8" | 203.2 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1290 ipm | |
| Rapid Traverse Rate - Y1 | 750 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 400 RPM | 400 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | 7.5 kW |
| Tailstock Quill Diameter | 5.1" | 129.54 mm |
| Tailstock Taper | 5.0 | 5.0 |
| Tailstock Quill Travel | 5.1" | 129.54 mm |
| Programmable Tailstock | 'Yes' | 'Yes' |
| Tailstock Travel | 112 | 112 |
| Machine Weight | 38,000 lb | 17,236.5 kg |
| Control | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) |
| Weight | 34417.00 | 34417.00 |
Swing Over Bed: 33.07"
Turning Diameter: 22.84"
Turning Length: 1.31"
Distance Between Centers: 125"
Distance Between Spindles: 0
Chuck Size 1, 2: 19"
Spindle Nose 1, 2: A2-15
Bar Capacity 1, 2: 7.28"
Spindle Speeds 1, 2: 2000 RPM
Spindle Horsepower 1, 2: 50 HP
B - Axis Head Indexing: 0
B - Axis Milling Spindle Speed: 0
B - Axis Milling Spindle Taper: 0
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 0
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 13.38"
Z - Axis Travel Z1, Z2, Z3: 125"
Y - Axis Travel Y1, Y2, Y3: 8"
C - Axis Indexing 1, 2: .0001 Degree
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2, X3: 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1299 IPM
Rapid Traverse Rates Y1, Y2, Y3: 555 RPM
Turret Tool Positions 1, 2, 3: 12
Turret Rotary Tool Speeds 1, 2, 3: 4000 RPM
Turret Rotary Tool Horse Power 1, 2, 3: 10 HP
Tailstock Quill Diameter: 3.94"
Tailstock Taper: MT #5
Tailstock Quill Travel: 0
Tailstock Travel: 123"
Machine Weight: 34,417 Lbs.

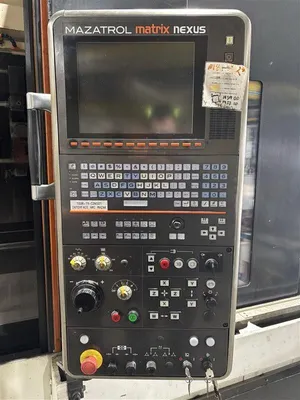

MAZATROL MATRIX CNC CONTROL
CHIP CONVEYOR
SMW AUTOBLOCK K4-2SW PROGRAMMABLE STEADY REST
EIA
SPIRAL
EIA 3D COMP.
EIA COODINATE ROTATION
ROTATION GEOMETRIC
SCALING & ROTATION
EXT-DATA I/O
THREAD
THREAD / INVERSE TIME
AUTO ATLM
POLAR COORDINATES INPUT
COMPARISON STOP
600 VARIABLE SETS
VARIABLE 600 SETS, CYLINDER
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
TILTED WORKPLANE
AUTO PECKING
THREAD POINT START COMP.
RE-THERAD
PITCH ERROR COMPENSATION, EXTERNAL DECELERATION
THREAD CUT-SPEED OVERRIDE
PREPPED FOR REAR CHUCK
STANDARD TOOLING PACKAGE

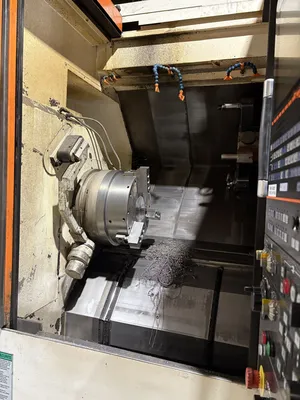

19" AUTOBLOCK EP460/185 3-JAW AIR CHUCK WITH 7.28" THRU BORE
MAZAK SUPER FLOW V8 1000 PSI THROUGH THE TOOL COOLANT
AUTO DOOR OPEN CLOSE
CHUCK JAW JOGGING SYSTEM FOR FRON MOUNTED CHUCK
