| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 177" | 4,495.8 mm |
| Table Size - W | 86" | 2,184.4 mm |
| Weight on Table | 55,000 lb | 24,947.6 kg |
| Distance Between Columns | 106.2" | 2,697.5 mm |
| Spindle Nose to Table Top | 64.9 | 64.9 |
| X - Axis Travel | 207.7" | 5,275.6 mm |
| Y - Axis Travel | 125.9" | 3,197.9 mm |
| Z - Axis Travel | 27.5" | 698.5 mm |
| W - Axis Positions | 43.3" | 1,099.8 mm |
| Rapid Traverse Rate - X | 787 in/min. | 20 m/min. |
| Rapid Traverse Rate - Y | 787 ipm | |
| Rapid Traverse Rate - Z | 590 ipm | |
| Cutting Feedrate | 393 in/min. | 10 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Number Of Gear Ranges | 2 | 2 |
| Main Motor | 33.5 hp | 25 kW |

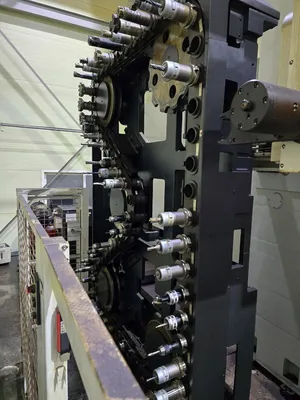

| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 5.12", 9.45" | 5.12", 9.45" |
| Tool Length | 15.75" | 400.05 mm |
| Tool Weight | 55 lb | 24.9 kg |
| Machine Weight | 127,865 lb | 57,998.7 kg |
| Control | CNC (FANUC 31IB CNC COLOR CONTROL) | CNC (FANUC 31IB CNC COLOR CONTROL) |

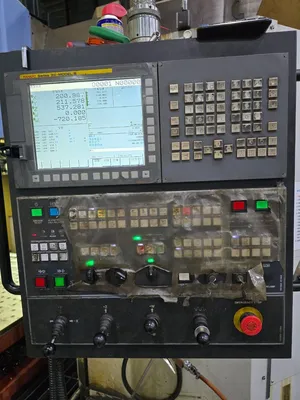

FANUC 31IB CNC COLOR CONTROL
SCALES X, Y, Z, W AXIS
90 DEGREE ANGLE HEAD (1 DEGREE INDEXING)
AAC SWING 2 STATION HEAD CHANGER
PART PROGRAM STORAGE 8MB

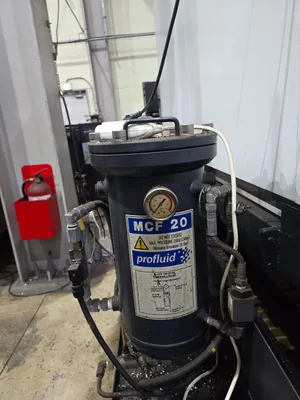

20 BAR THROUGH SPINDLE COOLANT (300 PSI)
CHIP CONVEYOR
RIGID TAPPING
HAND HELD REMOTE MPG
This equipment is currently unavailable. Similar equipment available now is shown below.
