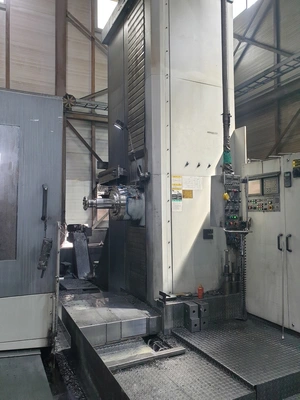

Used 2010 HYUNDAI WIA KBN-135L | Boring Mills Horizontal Table Type

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Horizontal Table Type
Manufacturer:
HYUNDAI WIA
Model:
KBN-135L
Year:
2010
Stock #:
9967
Status:
For Sale
Serial #:
G3216-0343

Description

HYUNDAI WIA KBN-135L, 2010 model Boring Mills Horizontal Table Type, offers expansive table size (78.74" x 70.87"), 22,045 lb capacity, and precision with .001 degree indexing. Equipped with FANUC 16IMB CNC, scales, and chip conveyor. 93,000 lb machine.

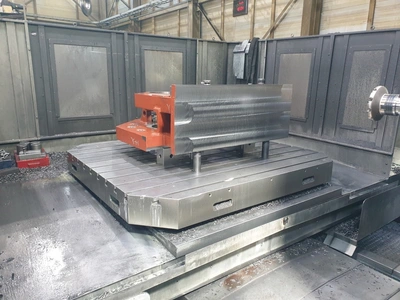

Table Size - L78.74"2,000 mm
Table Size - W70.87"1,800.1 mm
Table Capacity22,045 lb9,999.5 kg
Table Indexing.001 DEGREES.001 DEGREES

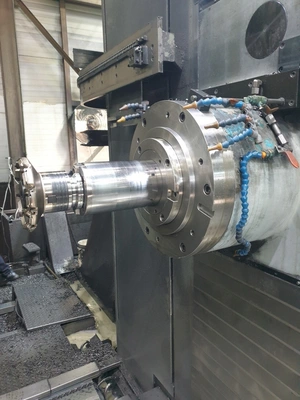

Spindle Diameter5.13"130.3 mm
Spindle Taper5050
Spindle Speed2,500 RPM2,500 RPM
Spindle Torque23242324
Number Of Ranges44
Main Motor30 hp22.4 kW
X - Axis Travel157.4"3,998 mm
Y - Axis Travel98.4"2,499.4 mm
Z - Axis Travel63"1,600.2 mm
W - Axis Travel27.56"700.02 mm
Automatic Tool Changer Capacity6060
Tool Diameter10.210.2
Max Tool Length18.7"474.98 mm
Max Tool Weight66 lb29.9 kg
Machine Weight93,000 lb42,184.1 kg

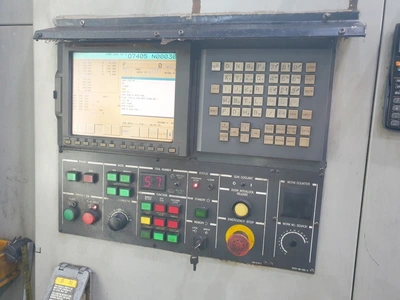

FANUC 16IMB CNC CONTROL
SCALES
CHIP CONVEYOR
