| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 118.1" | 2,999.7 mm |
| Table Size - W | 53.1" | 1,348.7 mm |
| Weight on Table | 17,636 lb | 7,999.6 kg |
| Distance Between Columns | 66.9" | 1,699.3 mm |
| Spindle Nose to Table Top | 7.9" - 39.4" | 7.9" - 39.4" |
| X - Axis Travel | 118.1" | 2,999.7 mm |
| Y - Axis Travel | 61" | 1,549.4 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate - X | 629 in/min. | 16 m/min. |
| Rapid Traverse Rate - Y | 629 ipm | |
| Rapid Traverse Rate - Z | 629 ipm | |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 50 | 50 |
| Main Motor | 40 hp | 29.8 kW |
| Automatic Tool Changer | 40 | 40 |
| Tool Diameter | 4.9" / 8.7" | 4.9" / 8.7" |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 44.1 lb | 20 kg |
| Machine Weight | 66,934 lb | 30,360.8 kg |
| Control | CNC | CNC |
| Dimensions | 187.8" (H) x 175.2" x 342" | 187.8" (H) x 175.2" x 342" |

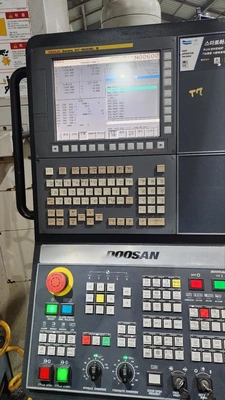

FANUC SERIES 31I-B CNC CONTROL
CHIP CONVEYOR
XYZ SCALES
SPLASH GUARD WITH TOP COVER
RIGID TAPPING
