| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 196.8" | 4,998.7 mm |
| Table Size - W | 98.4" | 2,499.4 mm |
| Weight on Table | 55,000 lb | 24,947.6 kg |
| Distance Between Columns | 112" | 2,844.8 mm |
| Spindle Nose to Table Top | 70.8 | 70.8 |
| X - Axis Travel | 206.7" | 5,250.2 mm |
| Y - Axis Travel | 133.8" | 3,398.5 mm |
| Z - Axis Travel | 23.6" | 599.44 mm |
| W - Axis Positions | 55.11" | 1,399.8 mm |
| Rapid Traverse Rate - X | 985 in/min. | 25 m/min. |
| Rapid Traverse Rate - Y | 985 ipm | |
| Rapid Traverse Rate - Z | 315 ipm | |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Number Of Gear Ranges | 2 | 2 |
| Main Motor | 35 hp | 26.1 kW |
| Automatic Tool Changer | 40 | 40 |
| Tool Diameter | 4.3" / 9.13" | 4.3" / 9.13" |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 44 lb | 20 kg |

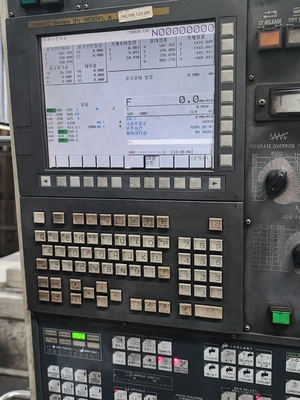

FANUC 31IA CNC CONTROL
3 CHIP CONVEYORS
SCALES X,Y,Z
EXTENSION

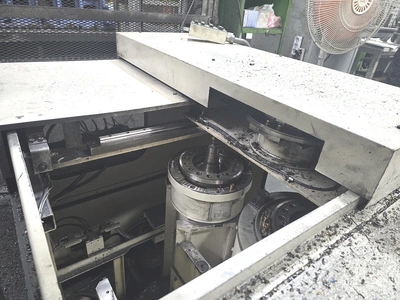

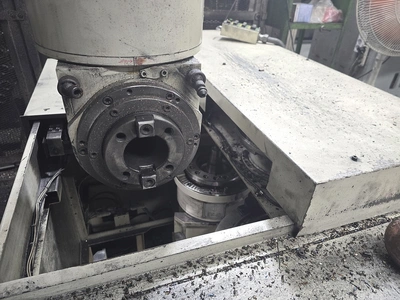

90 DEGREE ANGLE HEAD

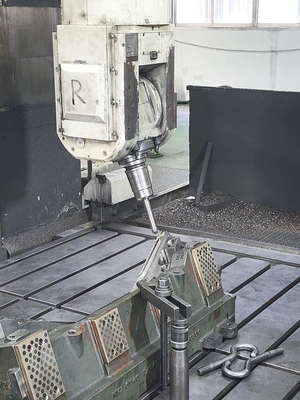

5 AXIS HEAD
AAC
LASER TOOL LENGTH MEASUREMENT
