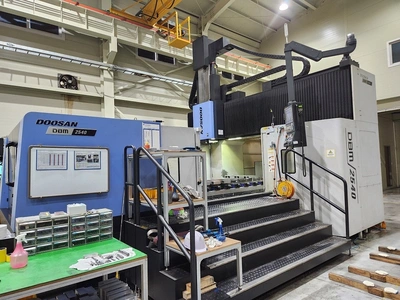

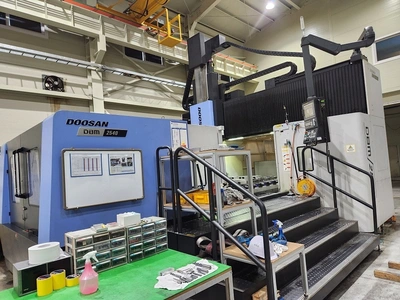

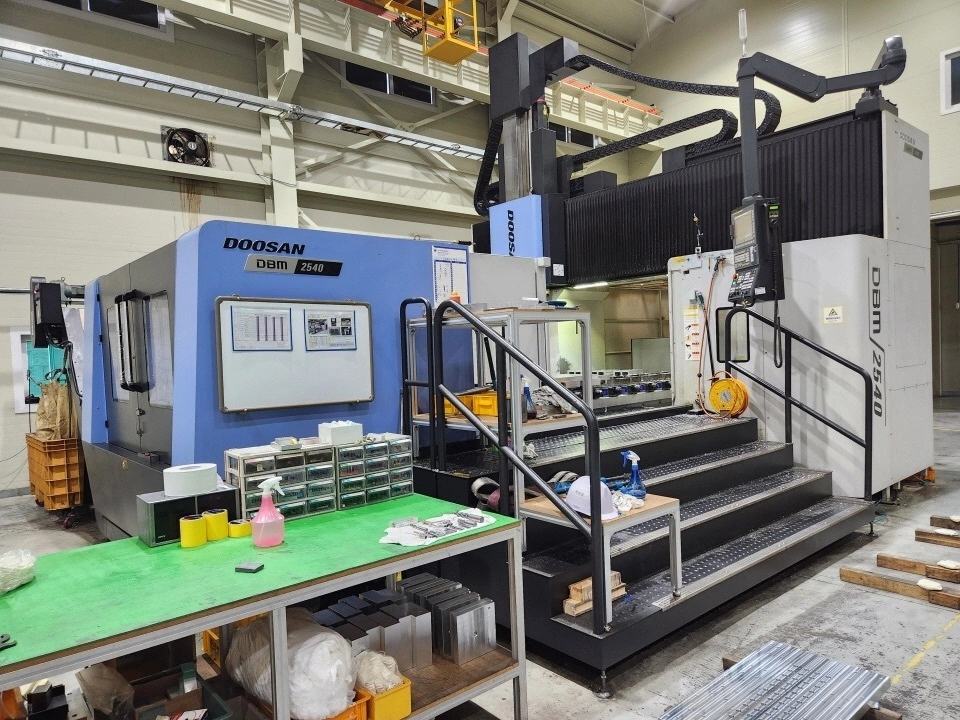

Used 2019 DOOSAN DBM-2540 | VMC Gantry / Bridge Type CNC
Have one to sell?
ConditionUsed
1 available
DOOSAN DBM-2540, 2019 VMC Gantry, used. Features FANUC 31IB CNC, 8,000 RPM spindle, 73.8 hp motor, and 60-tool ATC. Equipped with chip conveyor, Renishaw tool measurement, and 20 BAR coolant. Large table and robust performance for serious machining needs.

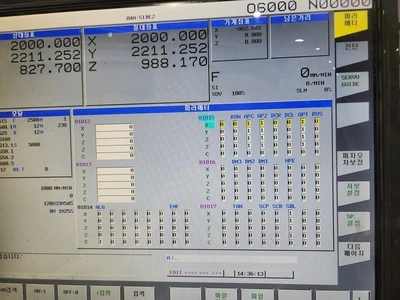

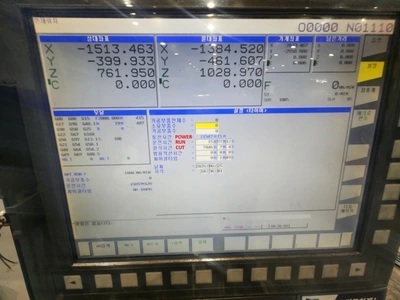

FANUC 31IB CNC CONTROL

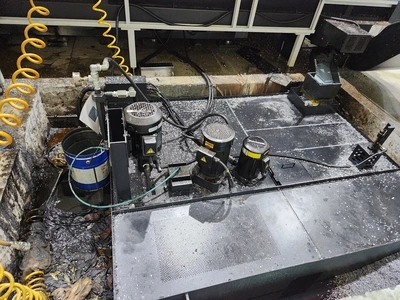

CHIP CONVEYOR
DSQ 2
RENISHAW TOOL LENGTH MEASUREMENT
20 BAR THROUGH SPINDLE COOLANT
8MB PART PROGRAM
AAC (SWING 2 STATION)
90 DEGREE ANGLE HEAD 6000 RPM
SCALES X,Y,Z
SEMI COVER TOP
DOOSAN DBM-2540, 2019 VMC Gantry, used. Features FANUC 31IB CNC, 8,000 RPM spindle, 73.8 hp motor, and 60-tool ATC. Equipped with chip conveyor, Renishaw tool measurement, and 20 BAR coolant. Large table and robust performance for serious machining needs.
Imperial

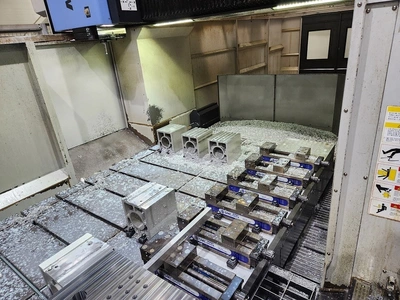

| Number Of Tables / Pallets | 1 |
| Table Size - L | 157.5" |
| Table Size - W | 78.7" |
| Weight on Table | 44,091 lb |
| Distance Between Columns | 98.4" |
| Spindle Nose to Table Top | 39.4" |
| X - Axis Travel | 167.3" |
| Y - Axis Travel | 118.13" |
| Z - Axis Travel | 31.5" |
| Rapid Traverse Rate - X | 787 in/min. |
| Rapid Traverse Rate - Y | 787 ipm |
| Rapid Traverse Rate - Z | 787 ipm |
| Cutting Feedrate | 394 in/min. |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | 50 |
| Main Motor | 73.8 hp |

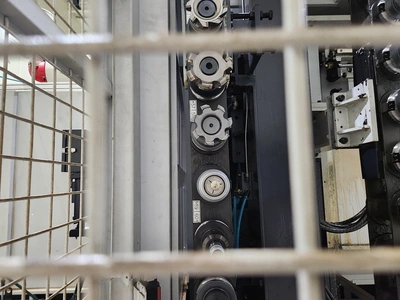

| Automatic Tool Changer | 60 |
| Tool Diameter | 5.1" / 9.8" |
| Tool Length | 15.7" |
| Tool Weight | 66 lb |
| Machine Weight | 92,593 lb |
| Dimensions | 293" x 433" x 224" |
FANUC 31IB CNC CONTROL
CHIP CONVEYOR
DSQ 2
RENISHAW TOOL LENGTH MEASUREMENT
20 BAR THROUGH SPINDLE COOLANT
8MB PART PROGRAM
AAC (SWING 2 STATION)
90 DEGREE ANGLE HEAD 6000 RPM
SCALES X,Y,Z
SEMI COVER TOP
