Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
DOOSAN
Model:
SMX 3100LS
Year:
2018
Stock #:
9971
Status:
For Sale

Description

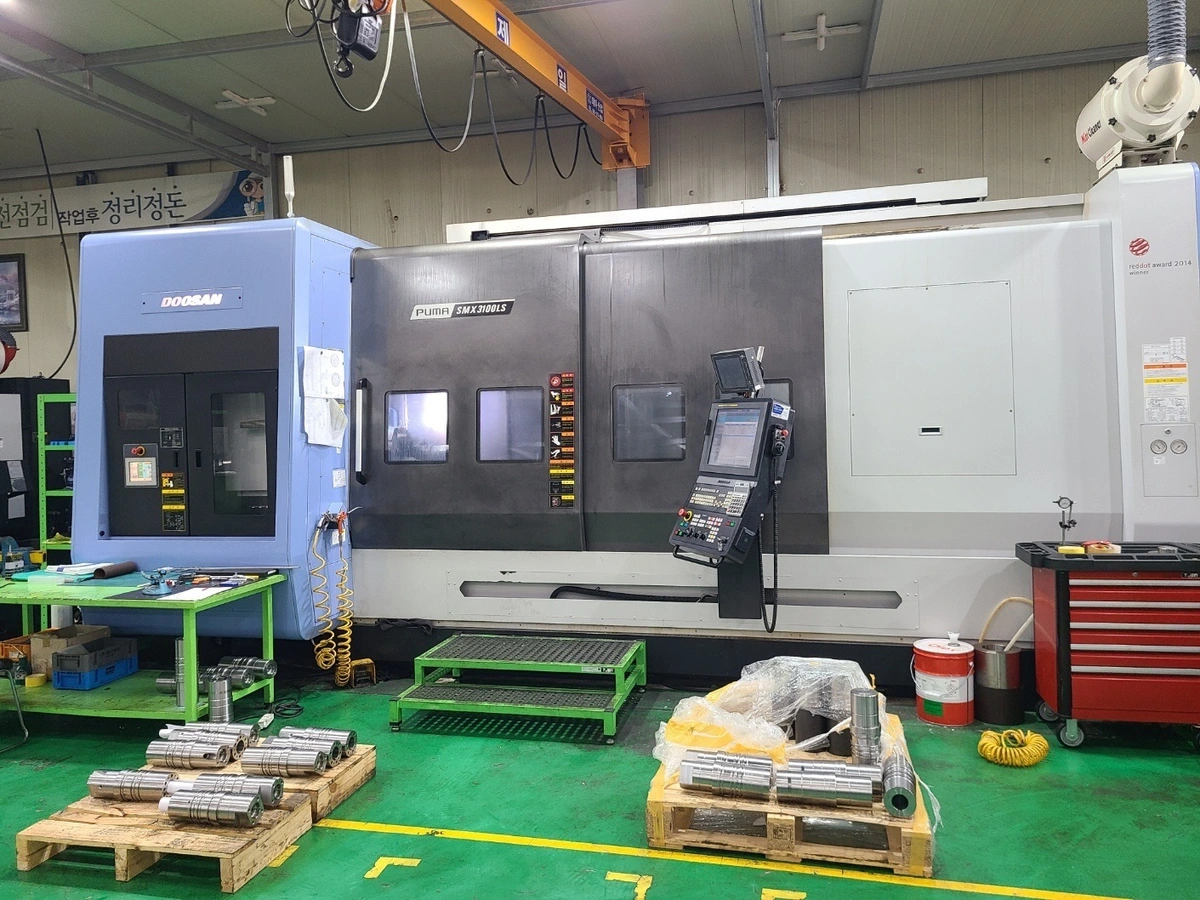

DOOSAN SMX 3100LS, a used 2018 CNC lathe, offers multi-axis capabilities. With specs like 26" swing, 100" turning length, and up to 12,000 RPM milling spindle speed, it's equipped with FANUC 31-B5 control, chip conveyor, hydraulic steady rest and more. Ideal for precision work.

Swing Over Bed26"660.4 mm
Turning Diameter26"660.4 mm
Turning Length100"2,540 mm
Chuck Size 115"381 mm
Chuck Size 212"304.8 mm
Bar Capacity 14"101.6 mm
Spindle Speeds 12,500 RPM2,500 RPM
Bar Capacity 23.6"91.44 mm
Spindle Speeds 24,000 RPM4,000 RPM
B - Axis Head Indexing0.00010.0001
B - Axis Milling Spindle TaperCapto C6Capto C6
B - Axis Milling Spindle Speed12,000 RPM12,000 RPM
B - Axis Milling Spindle Horse Power35 hp26.1 kW
ATC For Milling Spindle8080
Tool Diameter3.55"90.17 mm
Tool Length17.7"449.58 mm
Tool Weight26.5 lb12 kg
X1 - Axis Travel24.8"629.92 mm
Z1 - Axis Travel101.8"2,585.7 mm
Y1 - Axis Travel11.8"299.72 mm
C - Axis Indexing 1360360
W - Axis Travel Sub Spindle98.4"2,499.4 mm
Rapid Traverse Rate - X11889.8 ipm
Rapid Traverse Rate - Z11181.1 ipm
Rapid Traverse Rate - Y11417.3 ipm
Machine Weight45,195 lb20,500.1 kg
Dimensions252" x 118.5" x 112.2"252" x 118.5" x 112.2"

FANUC 31-B5 CNC CONTROL
SCALES FOR X,Y,Z
SMW STEADY REST 3.93" TO 16.1"
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
