| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 118.89" | 3,019.8 mm |
| Table-W | 79.1" | 2,009.1 mm |
| Weight on Table | 10,000 lb | 4,535.9 kg |
| Spindle Nose to Table Top | 9.4" ~ 39.3" | 9.4" ~ 39.3" |
| X - Axis Travel | 118.11" | 3,000 mm |
| Y - Axis Travel | 82.67" | 2,099.8 mm |
| Z - Axis Travel | 29.9" | 759.46 mm |
| Rapid Traverse Rate - X | 787 in/min. | 20 m/min. |
| Rapid Traverse Rate - Y | 590 in/min. | 15 m/min. |
| Rapid Traverse Rate - Z | 590 in/min. | 15 m/min. |
| Cutting Feed Rate | 393 in/min. | 10 m/min. |
| Spindle Speed | 8,000 RPM | 8,000 RPM |
| Spindle Taper | 50 | 50 |
| Number of Gear Ranges | 2 | 2 |
| Main Motor | 35 hp | 26.1 kW |
| Automatic Tool Changer | 30 | 30 |
| Tool Diameter | 5", 8.4" | 5", 8.4" |
| Tool Length | 13.7" | 347.98 mm |
| Tool Weight | 44 lb | 20 kg |
| Machine Weight | 33,000 lb | 14,968.6 kg |
| Control | CNC (FANUC 18I-MB CNC COLOR CONTROL) | CNC (FANUC 18I-MB CNC COLOR CONTROL) |

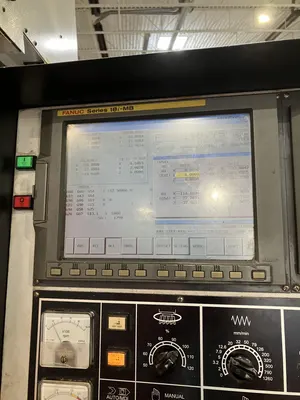

FANUC 18I-MB CNC COLOR CONTROL
2 SPEED GEAR BOX
RIGID TAPPING
COOLANT THRU SPINDLE
SPINDLE CHILLER
TWIN SCREW AUGERS
CHIP CONVEYOR
