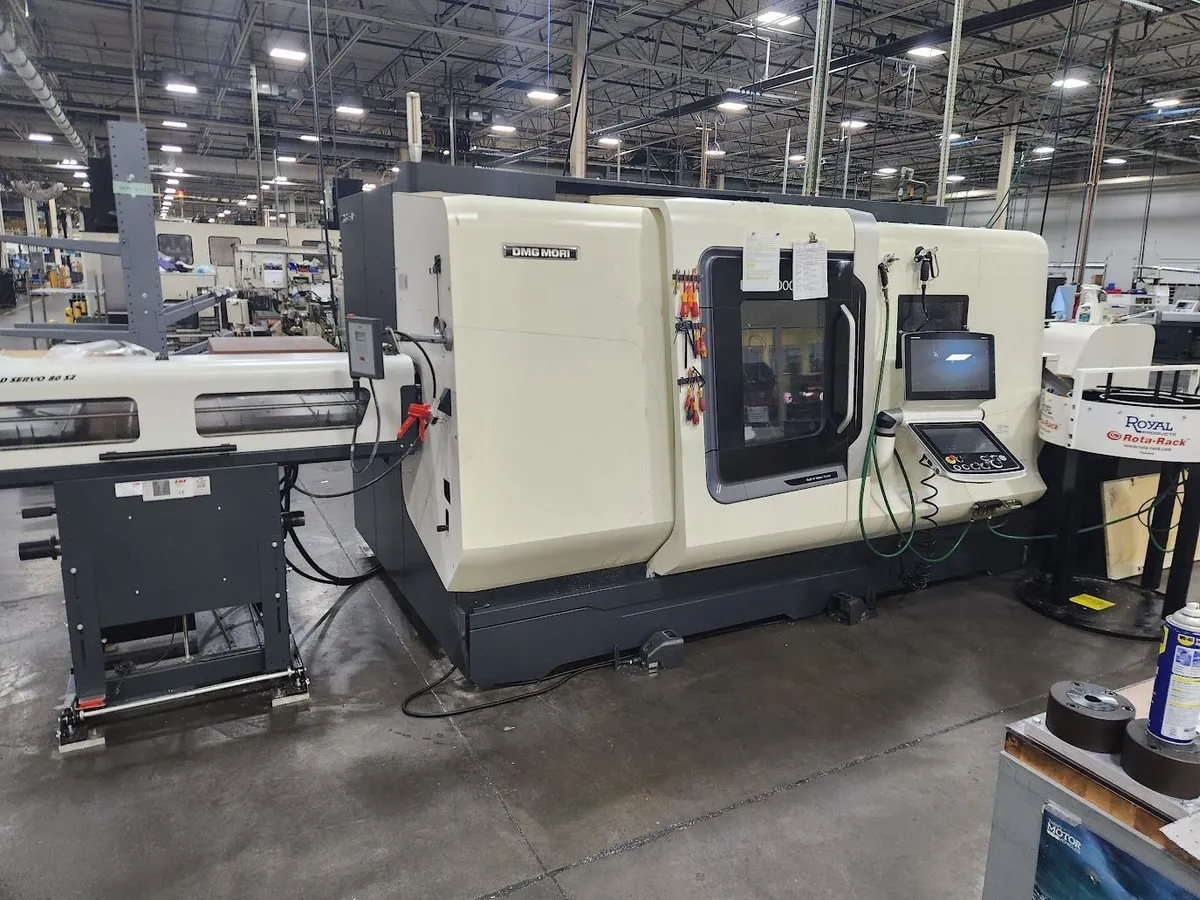

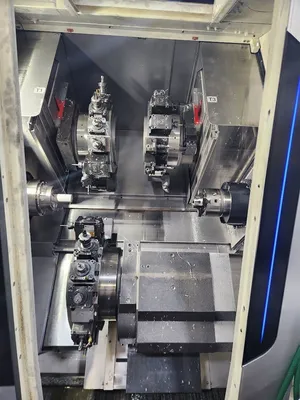

DMG MORI NZX 2000S T3Y3 CNC MULTI TASKING CENTER WITH BAR FEED AND HIGH PRESSURE COOLANT

DMG MORI NZX 2000S T3Y3 CNC MULTI TASKING CENTER WITH BAR FEED AND HIGH PRESSURE COOLANT

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
MORI SEIKI
Model:
NZX2000 T3Y3
Year:
2020
Stock #:
9978
Status:
For Sale

Description

DMG MORI NZX 2000S T3Y3, a 2020 CNC multi-tasking center from MORI SEIKI. This used machine offers advanced capability with Y-Axis and multi-axis operations, ideal for complex machining tasks.

Swing Over Bed31.5"800.1 mm
Turning Diameter12.5"317.5 mm
Turning Length31.8"807.72 mm
Distance Between Spindles44.4"1,127.8 mm
Spindle Nose 1A2 -6A2 -6
Spindle Bore Diameter 12.8"71.12 mm
Bar Capacity 12.4"60.96 mm
Spindle Speeds 15,000 RPM5,000 RPM
Spindle Horsepower 133.3 hp24.8 kW
Chuck Size 28"203.2 mm
Spindle Nose 2A2 - 6A2 - 6
Spindle Bore Diameter 22.8"71.12 mm
Bar Capacity 22.4"60.96 mm
Spindle Speeds 25,000 RPM5,000 RPM
Spindle Horsepower 233.3 hp24.8 kW
X1 - Axis Travel8.3"210.82 mm
X2 - Axis Travel8.3"210.82 mm
X3 - Axis Travel8.3"210.82 mm
Z1 - Axis Travel11.8"299.72 mm
Z2 - Axis Travel31.9"810.26 mm
Z3 - Axis Travel3.9"99.06 mm
Y1 - Axis Travel4.3"109.22 mm
Y2 - Axis Travel4.3"109.22 mm
Y3 - Axis Travel4.3"109.22 mm
C - Axis Indexing 10.000.00
C - Axis Indexing 20.000.00
W - Axis Travel Sub Spindle34.3"871.22 mm
Rapid Traverse Rate - X11181 ipm
Rapid Traverse Rate - X21181 ipm
Rapid Traverse Rate - X31181 ipm
Rapid Traverse Rate - Z11968 ipm
Rapid Traverse Rate - Z21968 ipm
Rapid Traverse Rate - Z31968 ipm
Rapid Traverse Rate - Y1787 ipm
Rapid Traverse Rate - Y2787 in/min.20 m/min.
Rapid Traverse Rate - Y3787 in/min.20 m/min.

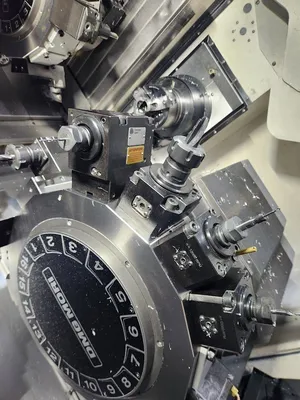

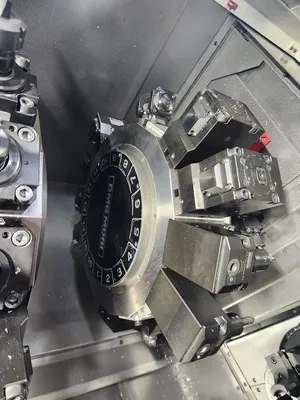

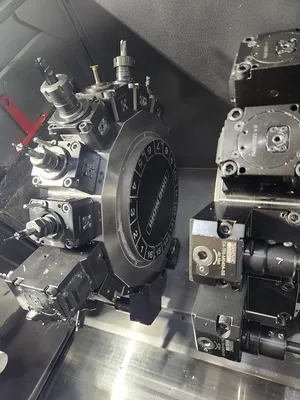

Turret Tool Positions 116 station16 station
Turret Rotary Tool Speeds 16,000 RPM6,000 RPM
Turret Rotary Tool Horse Power 110 hp7.5 kW
Turret Tool Positions 21616
Turret Rotary Tool Speeds 26,000 RPM6,000 RPM
Turret Rotary Tool Horse Power 210 hp7.5 kW
Turret Tool Positions 31616
Turret Rotary Tool Speeds 36,000 RPM6,000 RPM
Turret Rotary Tool Horse Power 310 hp7.5 kW
Machine Weight22,000 lb9,979 kg
ControlCNC (FANUC 31IBCNC COLOR CONTROL W/CELOS)CNC (FANUC 31IBCNC COLOR CONTROL W/CELOS)
Weight0.000.00

PROGRAM RESTART / INVERSE TIME FEED
AUTO POWER OFF
FANUC 31IB CNC CONTROL WITH CELOS
MAPPS IV CONVERSATIONAL PROGRAMMINGCOOLANT THRU SPINDLES
CHIP CONVEYOR
TOOL PRESETTERS (L/R)
LNS QUICK LOAD SERVO SHORT MAGAZINE BARFEED

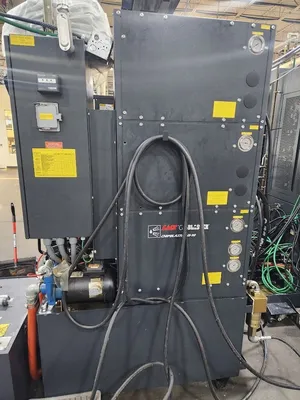

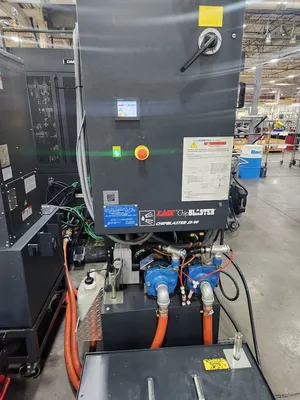

CHIP BLASTER 3 TIER HIGH PRESSURE COOLANT SYSTEM 1000 PSI
IN MACHINE TRAVELING TYPE WORKPIEC UNLOADER (11 LBS CAPACITY 3.1" X 5.9")

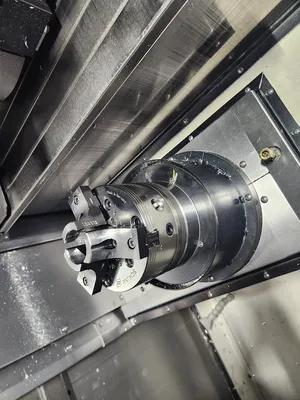

(2) 8" 3 JAW HYDRAULIC CHUCKS

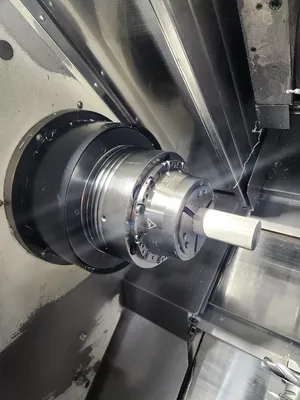

(1) COLLET NOSE MAIN SPINDLE

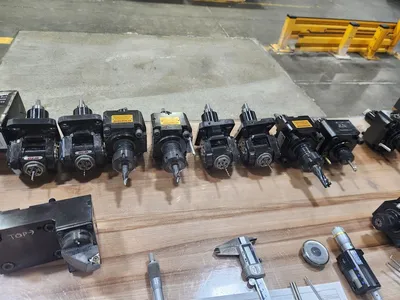

FULL COMPLIMENT OF ROTARY AND STATIC HOLDERS
BALL SCREW CORE COOLING
EVERYTHING WILL GO WITH THIS UNIT, SURPLUS TO THEIR NEEDS AND ONLY DMG MORI IN SHOP
ROTO RACK NOT INCLUDED
