| Pallet Size - L | 19.7" | 500.38 mm |
| Pallet Size - W | 19.7" | 500.38 mm |
| Number of Pallets | 12 | 12 |
| Pallet Weight Capacity | 992 lb | 450 kg |
| Pallet Surface to Spindle Center | 3" - 30.5" | 3" - 30.5" |
| Pallet Center To Spindle Gage Line | 5.9" - 35.4" | 5.9" - 35.4" |
| Workpiece Dimensions | 30.7" D x 38.6" H | 30.7" D x 38.6" H |
| X - AxisTravel | 33.5" | 850.9 mm |
| Y - Axis Travel | 27.6" | 701.04 mm |
| Z - Axis Travel | 29.5" | 749.3 mm |
| B - Axis Travel | .001 Degrees | .001 Degrees |
| Rapid Traverse Rate - X | 2,362 in/min. | 60 m/min. |
| Rapid Traverse Rate - Y | 2362 ipm | |
| Rapid Traverse Rate - Z | 2362 ipm | |
| Cutting Feed Rate | 1,181 in/sec. | 1,799.8 m/min. |
| Spindle Speed | 15,000 RPM | 15,000 RPM |
| Spindle Taper | #40 Big Plus | #40 Big Plus |
| Main Motor | 49.6 hp | 37 kW |

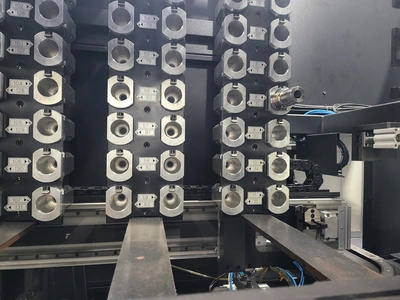

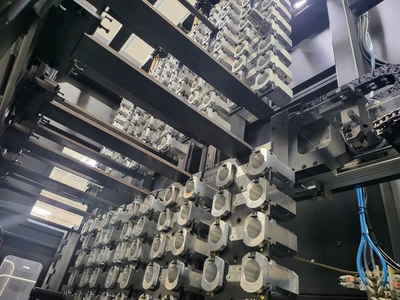

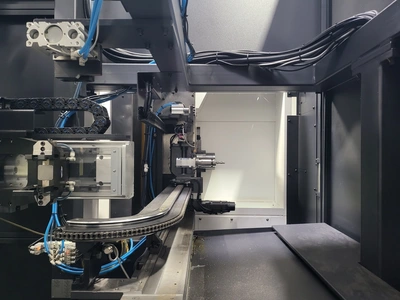

| Automatic Tool Changer | 240 | 240 |
| Tool Diameter | 3" / 5.5" | 3" / 5.5" |
| Tool Length | 17.7" | 449.58 mm |
| Tool Weight | 17.6 lb | 8 kg |
| Tool Change Time | 1 sec. | 1 sec. |
| Machine Weight | 37,478 lb | 16,999.8 kg |

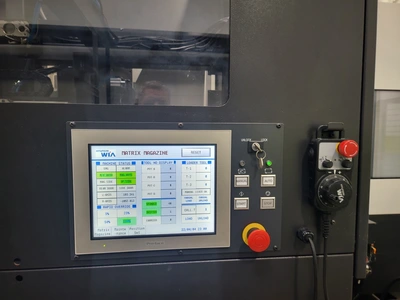

| Control | CNC (FANUC 31 IB CNC COLOR CONTROL) | CNC (FANUC 31 IB CNC COLOR CONTROL) |
| Weight | 37478 w/ out pallet system and toolchanger | 37478 w/ out pallet system and toolchanger |
FANUC 31IB CNC CONTROL

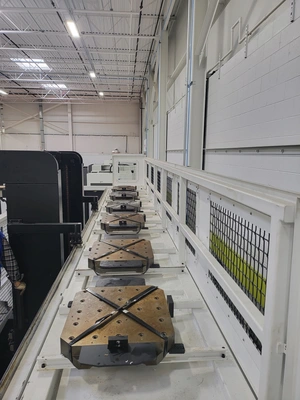

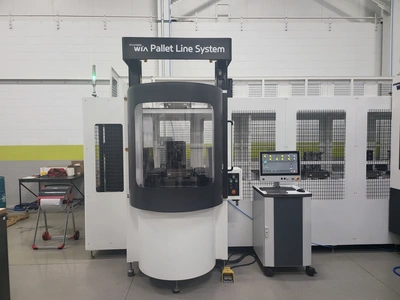

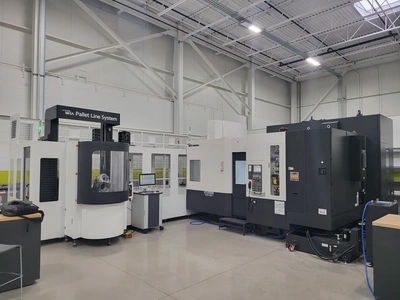

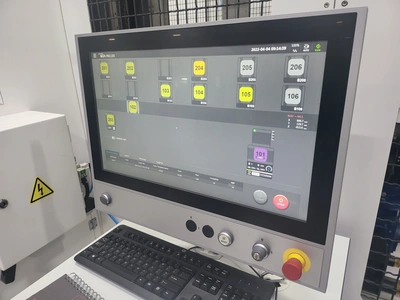

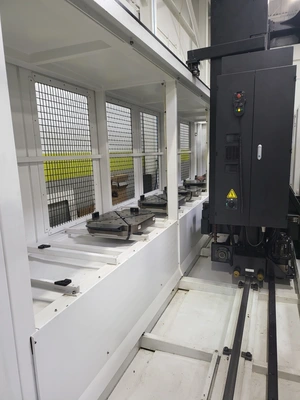

PLS PALLET POOL SYSTEM W/ 12 PALLETS 2 LEVEL SYSTEM
1000PSI THRU SPINDLE COOLANT
X,Y,Z SCALES
FAST DATA SERVER
RENISHAW TSR-27 TOOL SETTER
RENISHAW RMP-60

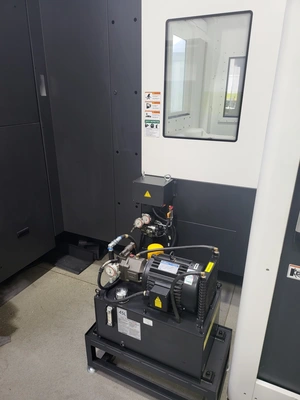

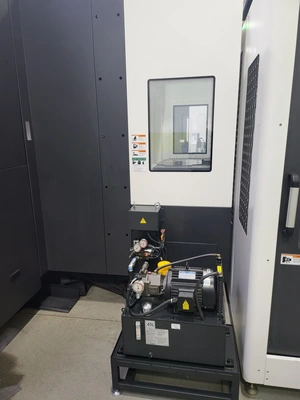

HYDRAULICS TO PALLETS
10 TOMBSTONES

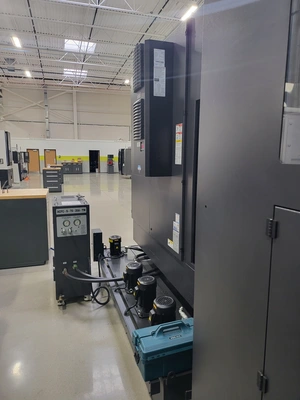

SPINDLE CHILLER

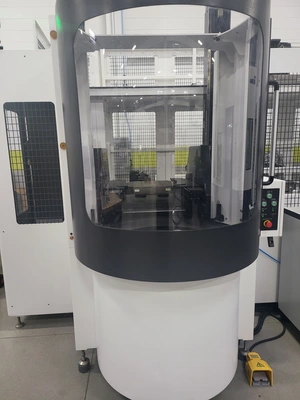

1 SETUP LOAD AND UNLOAD STATION
