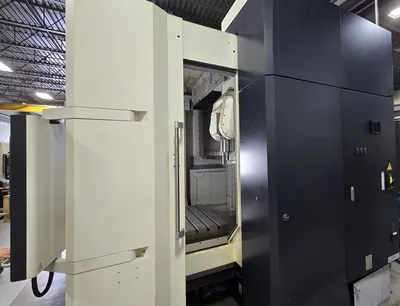

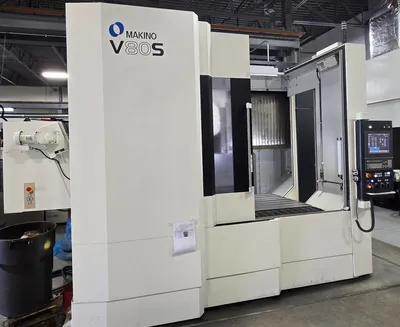

MAKINO V80S CNC 5 AXIS VERTICAL MACHINING CENTER

MAKINO V80S CNC 5 AXIS VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
MAKINO
Model:
V80S
Year:
2018
Stock #:
9981
Status:
For Sale

Description

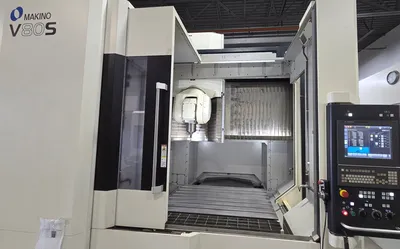

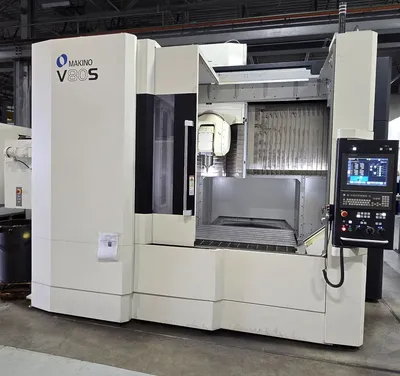

Discover precision with the used 2018 MAKINO V80S CNC 5 Axis Vertical Machining Center. Featuring a 20,000 RPM spindle, 51.81" x 39.37" table, 40 ATC, spindle chiller, Renishaw part probe, and more for advanced machining capabilities.

Number Of Tables / Pallets11

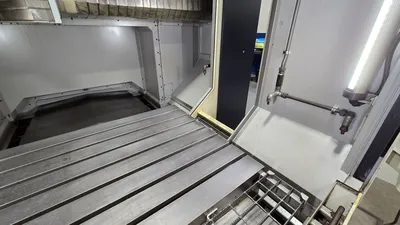

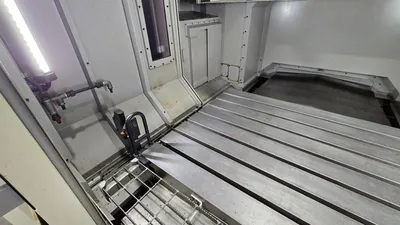

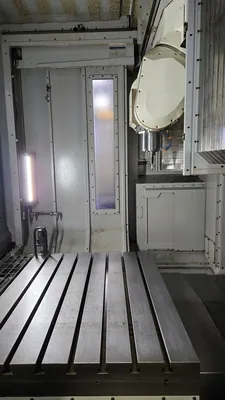

Table Size - L51.81"1,316 mm
Table Size - W39.37"1,000 mm
Weight On Table5,512 lb2,500.2 kg
Main Spindle Horse Power30 hp22.4 kW
Main Spindle Speeds20,000 RPM20,000 RPM
Main Spindle Taper6363
X - Axis Travel51.2"1,300.5 mm
Y - Axis Travel39.3"998.22 mm
Z - Axis Travel23.6"599.44 mm
A - Axis Travel- 3- ~ + 30- 3- ~ + 30
C - Axis Travel Table Indexing- 60 ~ + 60- 60 ~ + 60
Rapid Traverse Rate - X2,283 in/min.58 m/min.
Rapid Traverse Rate - Y2,283 in/min.58 m/min.
Rapid Traverse Rate - Z2,283 in/min.58 m/min.
Cutting Feed Rate1,575 in/min.40 m/min.
Tool Diameter40"1,016 mm
Tool Length11.8"299.72 mm
Tool Weight17.6 lb8 kg
Machine Weight45,320 lb20,556.8 kg

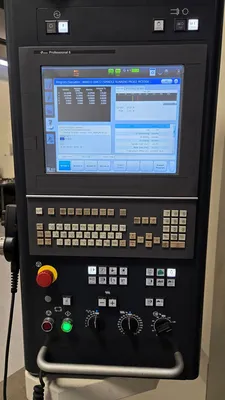

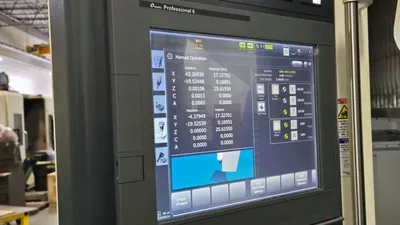

ControlCNC (FANUC 31I A5 CNC COLOR 5 AXIS CNC CONTROL WITH PRO 6)CNC (FANUC 31I A5 CNC COLOR 5 AXIS CNC CONTROL WITH PRO 6)

PROFESSIONAL 6 CNC CONTROL
RENISHAW PART PROBE
CHIP CONVEYOR
BLUM LASER MEASUREMENT
SCALE FEEDBACK
AIR DRYER
SPINDLE CHILLER
COOLANT THRU SPINDLE
400 PAIRS TOOL OFFSETS
48 FIXTURE OFFSETS

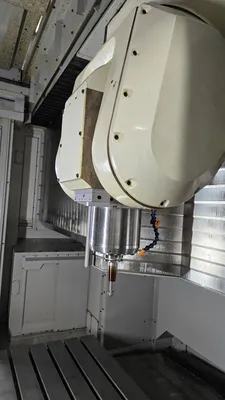

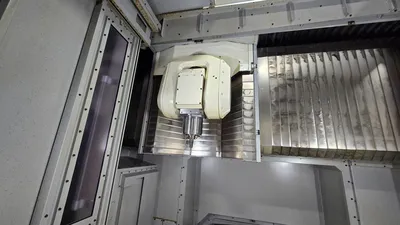

20,000 RPM HSK 63A SPINDLE
TEMPERATURE CONTROLED COOLANT SYSTEM
WASHING COOLANT IN MACHINING AREA
PORTABLE HAND HELD MPG
TILTED WORK PLANE INDEXING COMMAND
HIGH SPEED SMOOTH TCP
3-DIMENSIONAL CUTTER COMPENSATION
SUPER GI 5 CONTROL
RIGID TAPPING
ECO MODE FUNCTIONS
COLLISION SAFEGUARD
