| Table Diameter | 40" | 1,016 mm |
| Table Load Capacity | 4,400 lb | 1,995.8 kg |
| Swing Diameter | 53.3" | 1,353.8 mm |
| Turning Height | 39.4" | 1,000.8 mm |
| Table Speed | 800 RPM | 800 RPM |
| Main Motor | 80 hp | 59.7 kW |
| Number Of Ranges | 2 | 2 |
| X - Axis Travel | 24.4" | 619.76 mm |
| Z - Axis Travel | 39.4" | 1,000.8 mm |
| Rapid Traverse Rate - X | 945 ipm | |
| Rapid Traverse Rate - Z | 945 in/min. | 24 m/min. |
| Turret Configuration | 12 station | 12 station |
| Machine Weight | 48,500 lb | 21,999.3 kg |

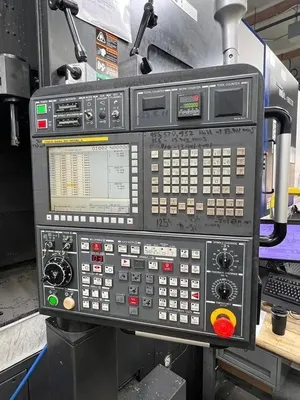

| Control | CNC (FANUC 31IA CNC COLOR CONTROL) | CNC (FANUC 31IA CNC COLOR CONTROL) |
| Weight | 50000.00 | 50000.00 |
TELESCOPIC GUARDS & COOLANT SHEILDS

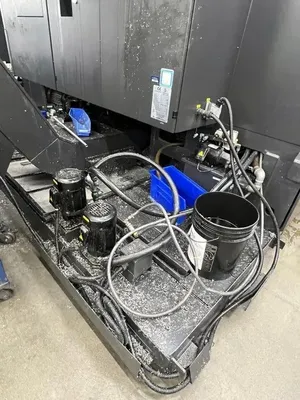

COOLANT SYSTEM
FULL ENCLOSURES
CHIP CONVEYOR
FULL SET OF MANUALS
FANUC 32IA CNC CONTROL
2-SPEED GEARBOX
FULL SET OF TOOL HOLDERS
CHUCK CLAMP CONFIRMATION
NUMBER OF TOOL OFFSETS 64 PAIRS

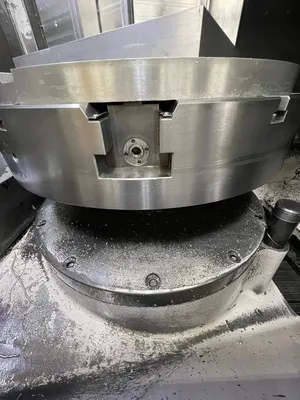

40" 3-JAW HYDRAULIC CHUCK
REMOVABLE TOOL SETTER
SPINDLE LOAD METER
SPINDLE RPM METER
