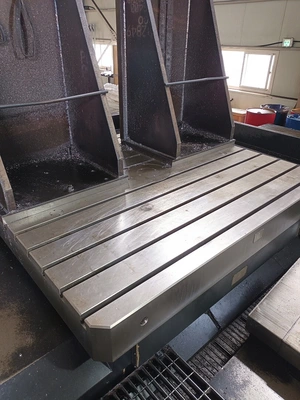

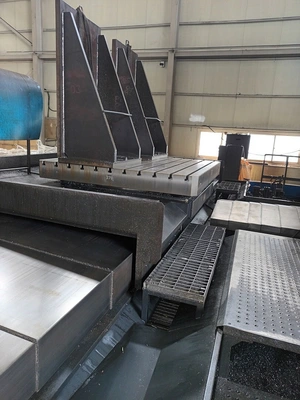

| Table Size - L | 70.8" | 1,798.3 mm |
| Table Size - W | 63" | 1,600.2 mm |
| Table Capacity | 33,000 lb | 14,968.6 kg |
| Table Indexing | .001 Degrees | .001 Degrees |
| Spindle Nose To Table Center | 27.5" - 90.5" | 27.5" - 90.5" |
| Spindle Nose To Table Top | 0 - 78.7" | 0 - 78.7" |

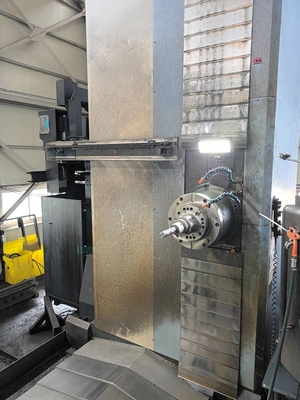

| Spindle Diameter | 5.1" | 129.54 mm |
| Spindle Taper | 50.0 | 50.0 |
| Spindle Speed | 3,000 RPM | 3,000 RPM |
| Main Motor | 40 hp | 29.8 kW |
| X - Axis Travel | 118" | 2,997.2 mm |
| Y - Axis Travel | 78.7" | 1,999 mm |
| Z - Axis Travel | 63" | 1,600.2 mm |
| W - Axis Travel | 27.8" | 706.12 mm |

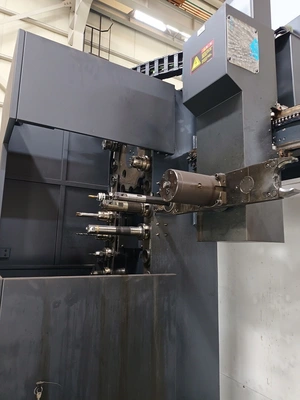

| Automatic Tool Changer Capacity | 40 | 40 |
| Tool Diameter | 9.8 | 9.8 |
| Max Tool Length | 23.6" | 599.44 mm |
| Max Tool Weight | 55 lb | 24.9 kg |
| Machine Weight | 94,600 lb | 42,909.9 kg |

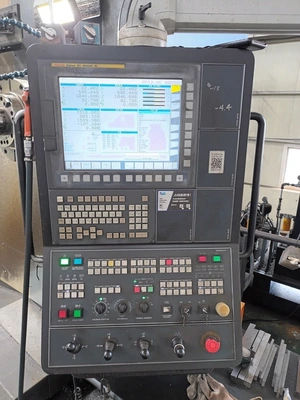

| Control | CNC (FANUC 31IB CNC COLOR CONTROL) | CNC (FANUC 31IB CNC COLOR CONTROL) |
| Weight | 94600 | 94600 |
ALL MANUALS

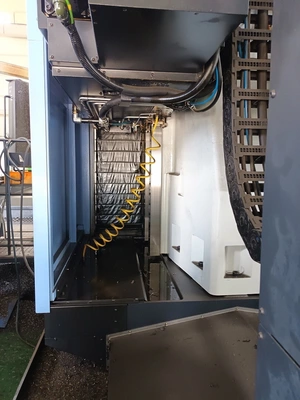

CHIP CONVEYOR
RIGID TAPPING
CUSTOM MACRO B
FANUC 31IB CNC CONTROL
THRU SPINDLE COOLANT

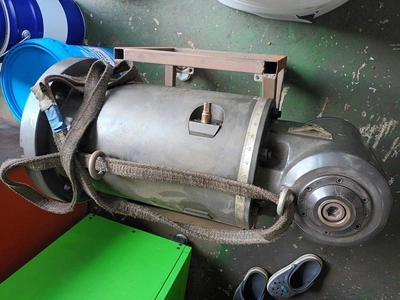

90 DEGREE ANGLE HEAD (35.4")
