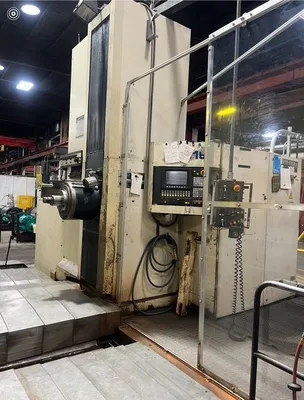

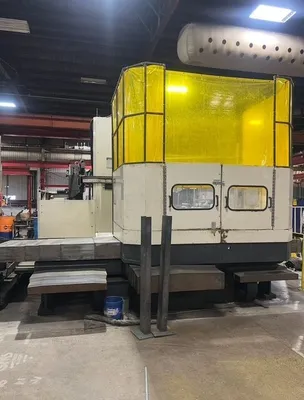

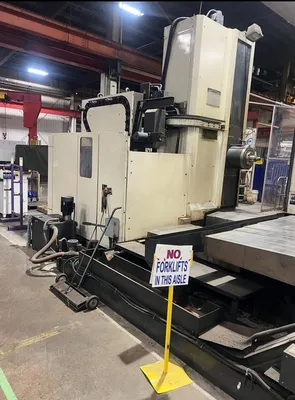

TOSHIBA BTD 110.R16 4.3" BAR CNC 4 AXIS HORIZONTAL TABLE TYPE BORING MILL

TOSHIBA BTD 110.R16 4.3" BAR CNC 4 AXIS HORIZONTAL TABLE TYPE BORING MILL

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Horizontal Table Type
Manufacturer:
TOSHIBA
Model:
BTD 110-R16
Year:
1998
Stock #:
9986
Status:
For Sale
Serial #:
144094

Description

TOSHIBA BTD 110-R16 CNC 4-Axis Horizontal Boring Mill from 2005, featuring a 63" x 55.1" table, 2,500 RPM spindle, and 13,860 lb. capacity. Equipped with Tosnuc 888 CNC, spindle chiller, and more. 250K rebuild in 2023 .

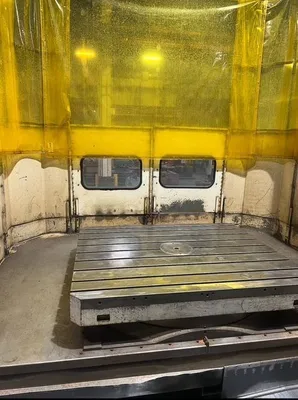

Table Size - L63"1,600.2 mm
Table Size - W55.1"1,399.5 mm
Table Capacity13,860 lb6,286.8 kg
Table Indexing.001.001

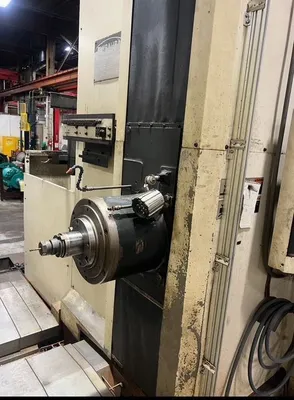

Spindle Diameter4.3"109.22 mm
Spindle Taper5050
Spindle Speed2,500 RPM2,500 RPM
Main Motor30 hp22.4 kW
X - Axis Travel78.7"1,999 mm
Y - Axis Travel59.1"1,501.1 mm
Z - Axis Travel57.1"1,450.3 mm
W - Axis Travel19.7"500.38 mm
Automatic Tool Changer Capacity3030
Tool Diameter4.9, 9.44.9, 9.4
Max Tool Length15.7"398.78 mm
Max Tool Weight55 lb24.9 kg
Machine Weight63,600 lb28,848.5 kg
ControlCNC (TOSNUC 888 CNC COLOR CONTROL)CNC (TOSNUC 888 CNC COLOR CONTROL)

CHIP CONVEYOR
ALL AVAILABLE MANUALS

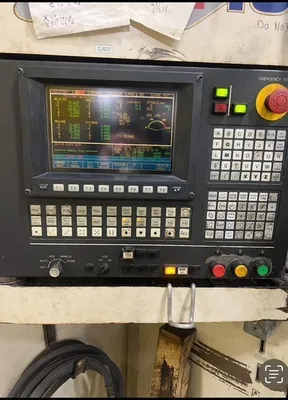

TOSNUC 888 CNC CONTROL

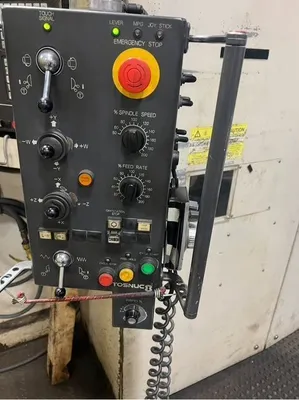

PENDANT OPERATOR CONTROL PANEL

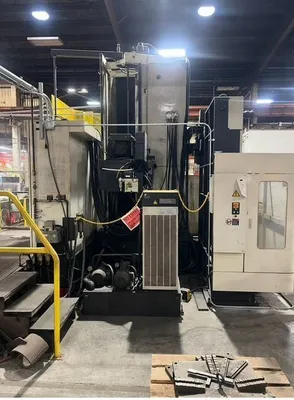

SPINDLE CHILLER
N/C ROTARY TABLE .001
SCALE FEEDBACK ON ALL AXIS
RIGID TAPPING
COOLANT THRU SPINDLE

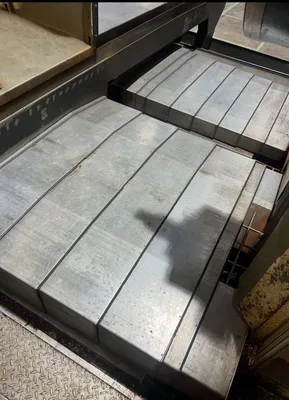

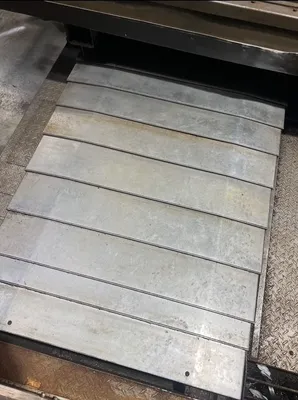

TABLE GUARDING
WAS REBUILT IN 2023, NEW TURCITE, NEW BEARINGS, TABLE BEARING, SPINDLE BEARINGS (250,000.00 USD)
VIDEOS ON REQUEST
