| Swing Over Bed | 27.4" | 695.96 mm |
| Machining Length | 18.83" | 478.28 mm |
| Distance Between Centers | 22.08" | 560.83 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2 - 6 | A2 - 6 |
| Turning Diameter, Shaft Diameter | 16.25" | 412.75 mm |
| Spindle Speeds 1 | 4,500 RPM | 4,500 RPM |
| Spindle Horsepower 1 | 20 hp | 14.9 kW |
| X1 - Axis Travel | 8.5" | 215.9 mm |
| Z1 - Axis Travel | 25" | 635 mm |
| Rapid Traverse Rate - X1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. | 500 mm/sec. |
| Turret Configuration 1 | 12 | 12 |
| Tailstock Taper | # 5 | # 5 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 14.17" | 359.92 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 2" | 50.8 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC | CNC |
| Weight | 11,000 | 11,000 |

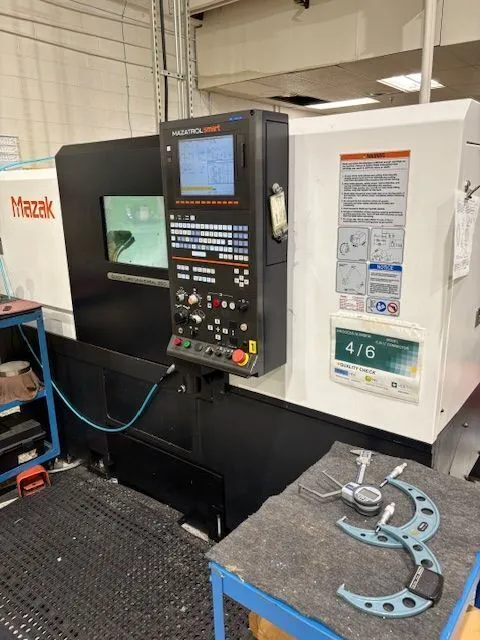

MAZATROL SMART CNC CONVERSATIONAL CONTROL
AUTOMATIC TOOL EYE
PROGRAMMABLE TAILSTOCK W/ CENTER
ALL AVAILABLE MANUALS
AVAILABLE TOOL HOLDERS
KITAGAWA 8" 4 - JAW HYDRAULIC CHUCK (25,000.00)
ALL TOOL BLOCK HOLDERS
EIA, SPIRAL, ROTATION, GEOMETRIC
THREAD, POLAR COORDINATE INPUT
EIA 3D COMP, COMPARISON STOP, G54.1
VARIABLE 600 SETS
PITCH ERROR COMP.

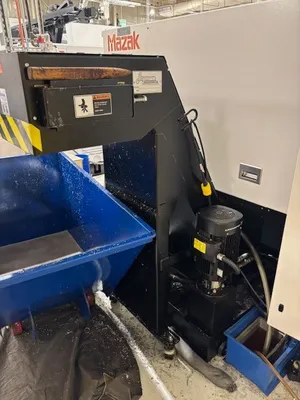

CHIP CONVEYOR
