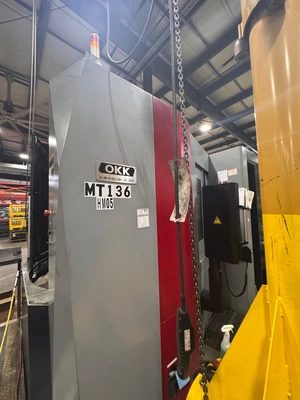

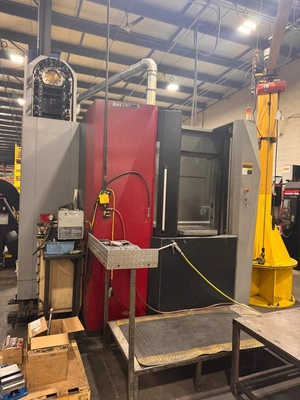

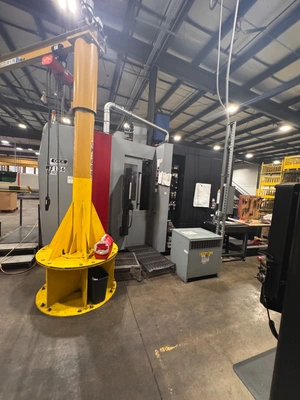

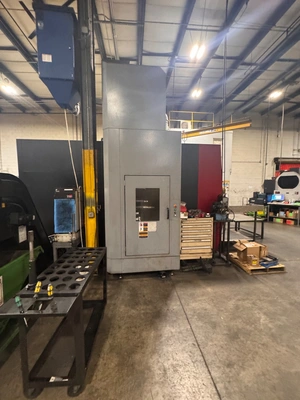

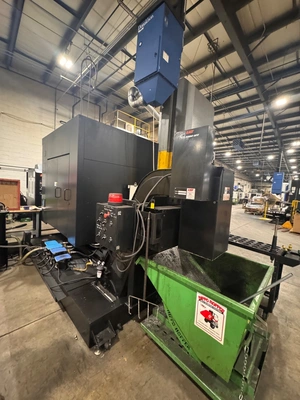

OKK HM 6300S CNC 4 AXIS HORIZONTAL MACHINING CENTER

OKK HM 6300S CNC 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
OKK
Model:
HM6300S
Year:
2015
Stock #:
9992
Status:
For Sale

Description

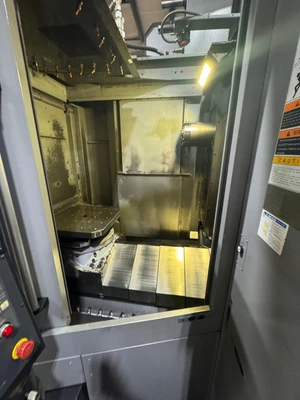

OKK HM6300S 4 axis CNC Horizontal Machining Center, 2015. Features dual 24.8" pallets, 12,000 RPM spindle, and FANUC 31IB5 control. Equipped with high-pressure coolant, chip conveyor, Renishaw part probe, and more. X/Y/Z travel: 31.5"/29.53"/34.65".

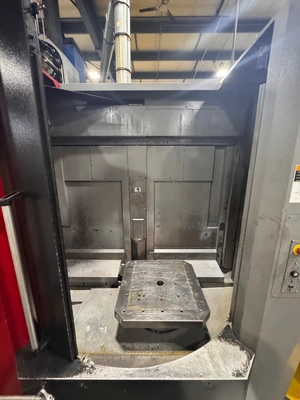

Pallet Size - L24.8"629.92 mm
Pallet Size - W24.8"629.92 mm
Number of Pallets22
Pallet Weight Capacity1,543 lb699.9 kg
Pallet Surface to Spindle Center1.96" - 31.5"1.96" - 31.5"
Pallet Center To Spindle Gage Line2.76" - 37.4"2.76" - 37.4"
X - AxisTravel31.5"800.1 mm
Y - Axis Travel29.53"750.06 mm
Z - Axis Travel34.65"880.11 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X2,362 in/min.60 m/min.
Rapid Traverse Rate - Y2362 ipm
Rapid Traverse Rate - Z2362 ipm
Cutting Feed Rate1,574 in/sec.2,398.8 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle TaperCT50CT50
Main Motor40 hp29.8 kW

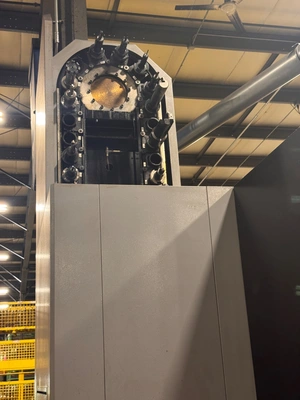

Automatic Tool Changer6060
Tool Diameter4.56", 10.63"4.56", 10.63"
Tool Length19.69"500.13 mm
Tool Weight55 lb24.9 kg
Tool Change Time1.2 sec.1.2 sec.
Machine Weight31,525 lb14,299.5 kg
ControlCNC (FANUC 31I B5 CNC COLOR CONTROL)CNC (FANUC 31I B5 CNC COLOR CONTROL)
Dimensions156" x 206" x 123.03" H156" x 206" x 123.03" H

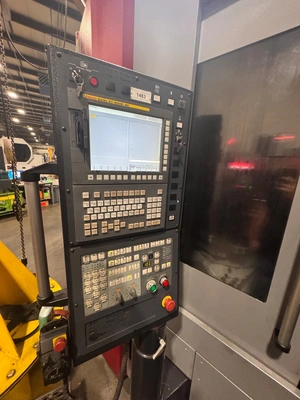

FANUC 31IB5 CNC CONTROL
HIGH PRESSURE THRU SPINDLE COOLANT
BIG PLUS SPINDLE

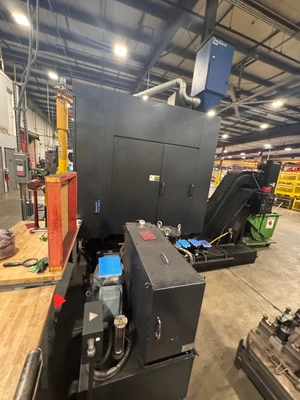

LIFTUP CHIP CONVEYOR
RENISHAW PART PROBE
COORDINATE SYSTEM ROTATION
CUSTOM MACRO 600
MEMORY UP TO 8MB
FAST ETHERNET
DATA SERVER
HI SPEED PROCESSING
MACHINE CONDITION SELECTING
