| Swing Over Bed | 26.5" | 673.1 mm |
| Turning Diameter | 14.75" | 374.65 mm |
| Turning Length | 21.27" | 540.26 mm |
| Distance Between Spindles | 21.275" | 540.38 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.6" | 91.44 mm |
| Bar Capacity 1 | 3.25" | 82.55 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp | 26.1 kW |
| Chuck Size 2 | 6" | 152.4 mm |
| Spindle Nose 2 | A2 - 5 | A2 - 5 |
| Spindle Bore Diameter 2 | 1.7" | 43.18 mm |
| Spindle Speeds 2 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp | 11.2 kW |
| X1 - Axis Travel | 9" | 228.6 mm |
| Z1 - Axis Travel | 22.75" | 577.85 mm |
| Y1 - Axis Travel | 4" | 101.6 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| C - Axis Indexing 2 | 0.00 | 0.00 |
| W - Axis Travel Sub Spindle | 23" | 584.2 mm |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1299 ipm | |
| Rapid Traverse Rate - Y1 | 826 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | 7.5 kW |
| Programmable Tailstock | 'No' | 'No' |
| Machine Weight | 11,905 lb | 5,400 kg |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |
Swing Over Bed: 26.5"
Turning Diameter: 14.7"
Turning Length: 19.85"
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 10", 6"
Spindle Nose 1, 2: A2 - 8", A 2 - 5
Spindle Bore Diameter 1, 2: 3.6", 1.7"
Bar Capacity 1, 2: 3.2"
Spindle Speeds 1, 2: 4000, 6000 RPM
Spindle Horsepower 1, 2: 35, 15 HP
B - Axis Head Indexing: 0
B - Axis Milling Spindle Speed: 0
B - Axis Milling Spindle Taper: 0
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 0
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 10.2"
Z - Axis Travel Z1, Z2, Z3: 31.3"
Y - Axis Travel Y1, Y2, Y3: 4"
C - Axis Indexing 1, 2: .0001, .0001
W - Axis Travel Sub Spindle: 19.85"
Rapid Traverse Rates X1, X2, X3: 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 826 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1299 IPM
Turret Tool Positions 1, 2, 3: 12
Turret Rotary Tool Speeds 1, 2, 3: 6000 RPM
Turret Rotary Tool Horse Power 1, 2, 3: 10 HP
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Tailstock Travel: 0
Machine Weight: 0
MAZATROL SMOOTH G CNC COLOR CONTROL

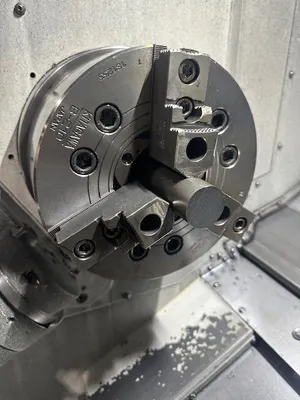

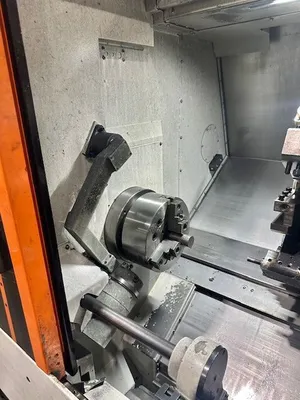

10'' 3-JAW HYDRAULIC CHUCK
6" 3-JAW REAR SPINDLE

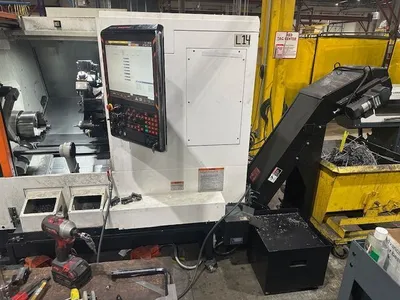

CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
BARFEED INTERFACE

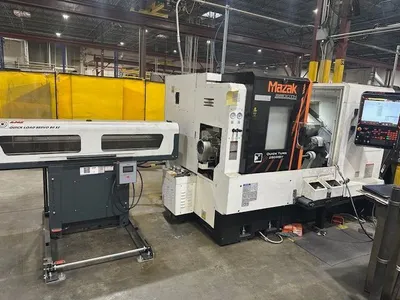

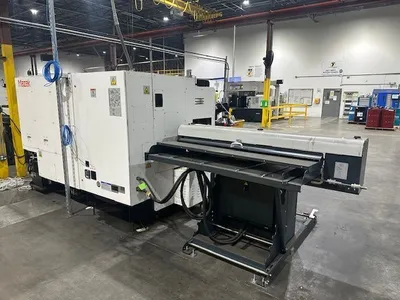

LNS SERVO 80 S2 SHORT MAGAZINE BARFEED SYSTEM
AUTOMATIC TOOL EYE
TWIN AUTOMATIC PARTS CATCHERS, FRONT CHUCK & REAR CHUCK
(3) ROTARY HEADS

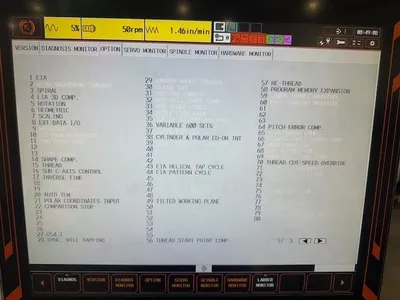

EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT - DATA I/O
SHPE COMP, THREAD, SUB C-AXIS CON TROL, INVERSE TIME
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAP
VARIABLE 600 SETS. CYLINDER & POLARCO-OR INT,
EIA HELICAL TAP CYCLE , EIA PATTERN CYCLE, THREAD START POINT COMP.
RE-THREAD, PROGRAM MEMORY EXPANSION, PITCH ERROR COMP
THREAD CUT - SPEED OVERRIDE
