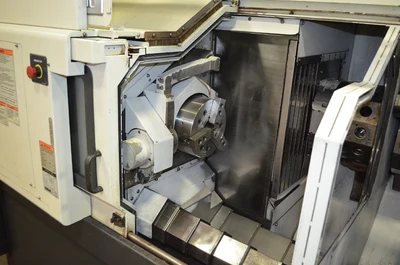

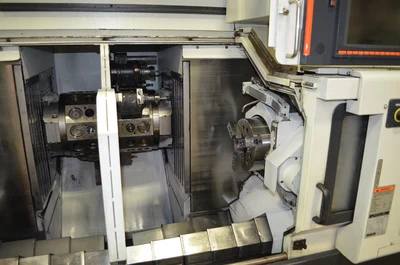

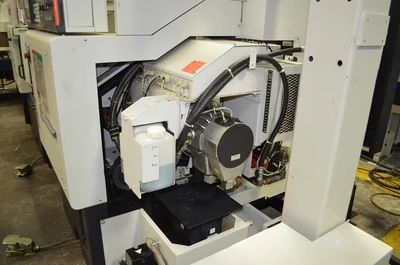

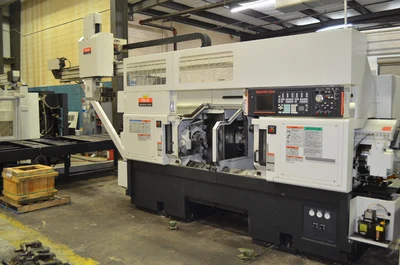

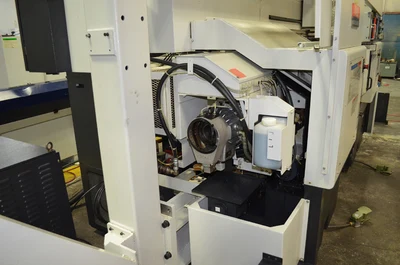

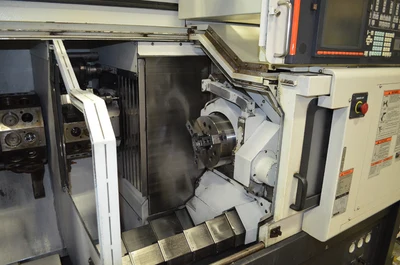

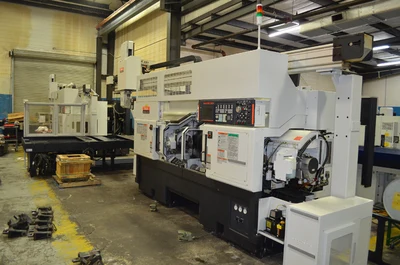

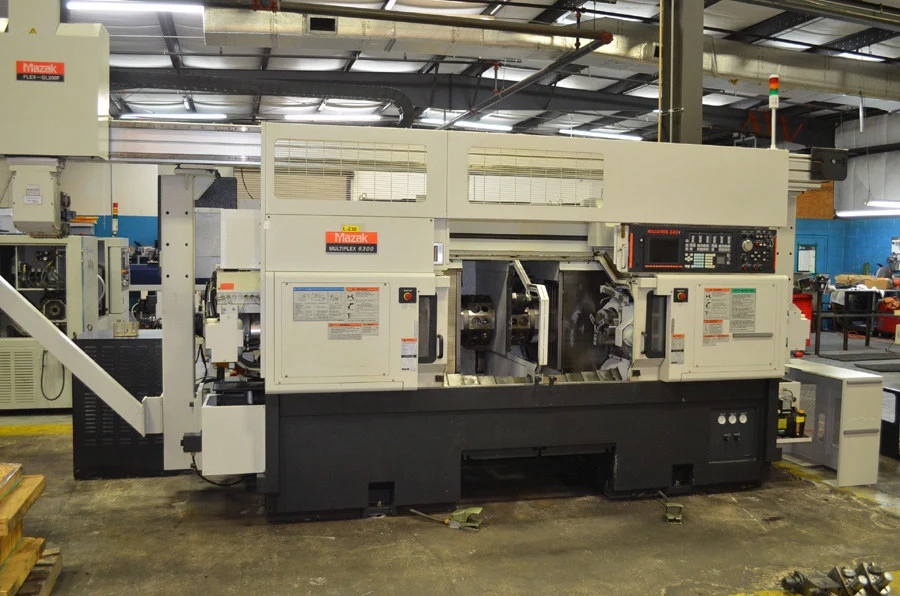

MAZAK MULTIPLEX 650 CNC MULTI-TASKING CENTER W/MILLING AND GL 500F GANTRY ROBOT

MAZAK MULTIPLEX 650 CNC MULTI-TASKING CENTER W/MILLING AND GL 500F GANTRY ROBOT

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
MAZAK
Model:
MULTIPEX 650
Year:
2007
Stock #:
9998
Status:
For Sale
Swing Over Bed24.4"619.76 mm
Machining Length8.86"225.04 mm
Distance Between Spindles76.78"1,950.2 mm
Chuck Size 118"457.2 mm
Chuck Size 218"457.2 mm
Spindle Nose 1A2 - 8A2 - 8
Spindle Nose 2A2 - 8A2 - 8
Spindle Bar Capacity 13.46"87.884 mm
Spindle Bar Capacity 23.46"87.884 mm
Turning Diameter, Shaft Diameter20"508 mm
Spindle Speeds 12,800 RPM2,800 RPM
Spindle Speeds 22,800 RPM2,800 RPM
Spindle Horsepower 150 hp37.3 kW
Spindle Horsepower 250 hp37.3 kW
X1 - Axis Travel14.4"365.76 mm
X2 - Axis Travel14.4"365.76 mm
Z1 - Axis Travel29.7"754.38 mm
Z2 - Axis Travel29.7"754.38 mm
C1 - Axis Travel.001.001
C2 - Axis Travel.001.001
Rapid Traverse Rate - X1709 in/min.300.1 mm/sec.
Rapid Traverse Rate- X2709 in/min.18 m/min.
Rapid Traverse Rate - Z1787 in/min.333.2 mm/sec.
Rapid Traverse Rate - Z2787 in/min.20 m/min.
Gear Ranges22
Turret Configuration 11212
Turret Configuration 212 station12 station
Turret Rotary Tool Spindle Speed 13,000 RPM3,000 RPM
Turret Rotary Tool Spindle Speed 23,000 RPM3,000 RPM
Turret Rotary Tool Horse Power 110 hp
Turret Rotary Tool Horse Power 210 hp7.5 kW
Live Tooling'Yes''Yes'
Sub Spindle'Yes''Yes'
ControlCNC (MAZATROL 640T CNC COLOR CONTROL)CNC (MAZATROL 640T CNC COLOR CONTROL)
Weight0.000.00

CHIP CONVEYOR
(2) HIGH PRESSURE COOLANT PUMPS
(2) TOOL EYES
(2) 18" 3 JAW KITAGAWA CHUCKS
PROGRAMMABLE CENTER PARTICIAN
CHUCK OPEN CLOSE CONFIRMATION
CHUCK AIR BLAST
TRANSFER AIR BLAST
EIA/ISO
BACKGROUND PATH CHECK
SYBCHRO. MILL TAPPING
DIRECT DWG SIZE INPUT
USER MACRO, 600 MACRO VARIABLE, USER MACRO INTERRUPT
WORK COORDINATE SELECT, POLAR COORDINATE S INPUT, CYLINDRICAL INTERPOLATION
EIA HELICAL INTERPOLATION, EIA CORDINATE ROTATION
GANTRY ROBOT CONTROL
EIA HELICAL TAPPING

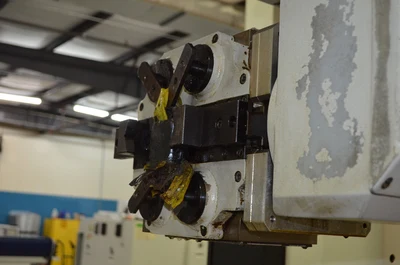

GL 500F GANTRY ROBOT

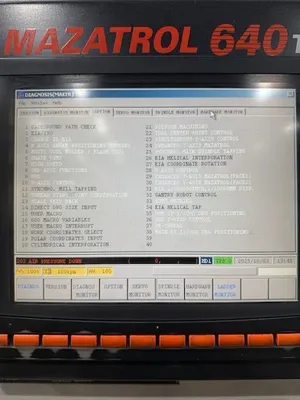

MAZATROL FUSION 640T CNC CONTROL
FULL COMPLIMENT OF ALL STATICK AND ROTARY HOLDERS
