Used 2017 DOOSAN DCM 3250F | VMC Gantry / Bridge Type CNC

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VMC Gantry / Bridge Type CNC
Manufacturer:
DOOSAN
Model:
DCM 3250F
Year:
2017
Stock #:
10002
Status:
For Sale
Serial #:
MY0101-000070

Description

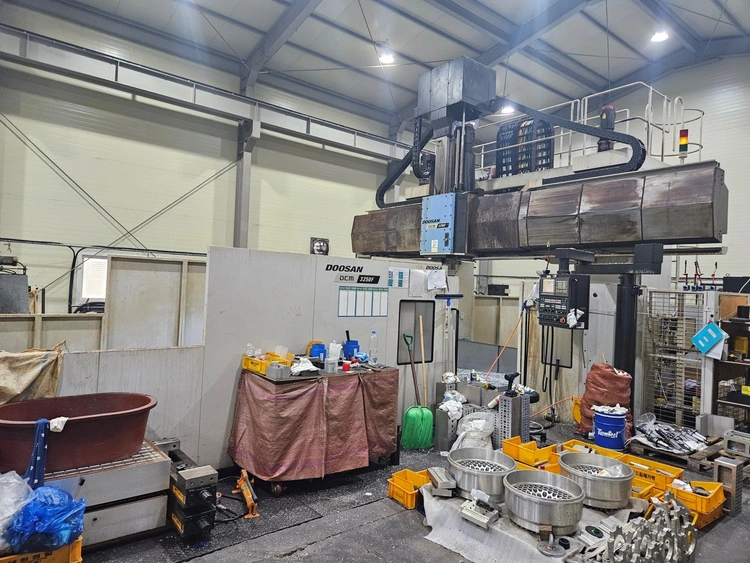

Used 2017 DOOSAN DCM 3250F VMC Gantry/Bridge Type CNC equipped with FANUC 31iB control, 90° angle head, 400mm extension, and thru spindle coolant. Features 106.3"x 200.8" table, 72,751.5 lb load capacity, 29.5 hp motor, and 6,000 RPM spindle speed.

Number Of Tables11

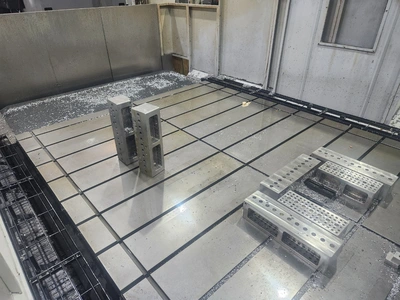

Table Size - W106.3"2,700 mm
Table Size - L200.8"5,100.3 mm
Table Load Capacity72,751.5 lb32,999.6 kg
Distance Between Columns126"3,200.4 mm
Spindle Nose to Table Top78.7"78.7"
X - Axis Travel206.7"5,250.2 mm
Y - Axis Travel145.7"3,700.8 mm
Z - Axis Travel39.4"1,000.8 mm
W - Axis Positions43.3"1,099.8 mm
B - Axis Indexing1 DEGREE1 DEGREE
Rapid Traverse Rate - X629.9 in/min.16 m/min.
Rapid Traverse Rate - Y787.4 ipm
Rapid Traverse Rate - Z590.6 ipm
Cutting Feedrate393.7 in/min.10 m/min.
Spindle Speed6,000 RPM6,000 RPM
Spindle Taper#50#50
Main Motor29.5 hp22 kW

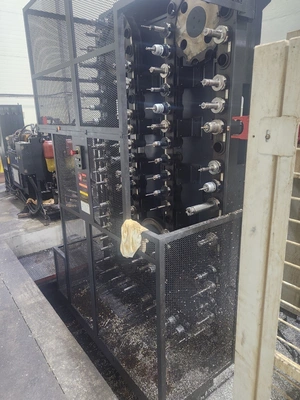

Automatic Tool Changer9090
Tool Diameter5.1" / 9.8"5.1" / 9.8"
Tool Length15.7"398.78 mm
Tool Weight66.1 lb30 kg
Machine Weight180,777 lb81,999.2 kg
Dimensions324" x 527" x 264"324" x 527" x 264"

FANUC 31IB CNC CONTROL

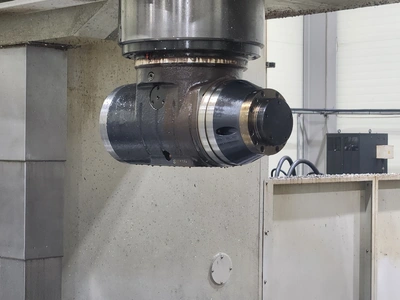

90 DEGREE ANGLE HEAD (1 DEGREE)
400MM EXTENSION
3 AAC
THRU SPINDLE COOLANT
TS27R TOOL SETTER
SEMI COVER
CHIP CONVEYOR
