| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 33.5" | 850.9 mm |
| Table Size - W | 29.5" | 749.3 mm |
| Weight On Table | 2,204 lb | 999.7 kg |
| Main Spindle Horse Power | 46.9 hp | 35 kW |
| Main Spindle Speeds | 18,000 RPM | 18,000 RPM |
| Main Spindle Taper | 63.0 | 63.0 |
| X - Axis Travel | 36.8" | 934.72 mm |
| Y - Axis Travel | 33.5" | 850.9 mm |
| Z - Axis Travel | 25.6" | 650.24 mm |
| C - Axis Travel Table Indexing | .001 | .001 |
| Rapid Traverse Rate - X | 1,574.8 in/min. | 40 m/min. |
| Rapid Traverse Rate - Y | 1,574.8 in/min. | 40 m/min. |
| Rapid Traverse Rate - Z | 1,574.8 in/min. | 40 m/min. |
| Cutting Feed Rate | 1,574.8 in/min. | 40 m/min. |
| Vertical Turning Table Size, Number Of Tables | 33.529 | 33.529 |
| Vertical Turning Table Speed | 800 RPM | 800 RPM |
| Vertical Turning Table Horse Power | 48.3 hp | 36 kW |
| Automatic Tool Changer | 120 | 120 |
| Tool Length | 16.5" | 419.1 mm |
| Tool Weight | 17.6 lb | 8 kg |
| Machine Weight | 33,000 lb | 14,968.6 kg |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |
NC SWIVEL ROTARY TABLE TANDEM DRIVE
PACKAGE MILL / TURN HSK-A 63

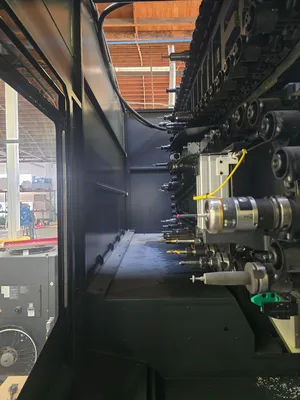

TOOL MAGAZINE CHAIN 60ATC SK 40
INFRARED MEASURING PROBE HEIDENHAIN SK 40
COMBINATION TOOL MEASURING IN MACHINING AREA M / T
3D QUICKSET
MPC MACHINE PROTECTION CONTROL
SIGNAL LAMP 4 - COLOR
PRODUCTION PACKAGE 40BAR / 23 L / M, 600 L TANK M / T
SPRAY PISTOL WITH PUMP 1 BAR / 40 L / MIN
ELECTRIC HANDWHEEL ITNC 530
APPLICATION TURNING CYCLE ATC
OPERATION MODE 4
MACHINE VERSION 60 HZ
TROPICAL PACKAGE (AMBIENT TEMP. MAX 50DEG. CELSIUS)
CHIP CONVEYOR
SEIMENS 840D CNC CONTROL (19'' DISPLAY)
This equipment is currently unavailable. Similar equipment available now is shown below.
