| Table Diameter | 32" | 812.8 mm |
| Table Load Capacity | 4,400 lb | 1,995.8 kg |
| Swing Diameter | 53.3" | 1,353.8 mm |
| Turning Height | 39.4" | 1,000.8 mm |
| Table Speed | 800 RPM | 800 RPM |
| Main Motor | 80 hp | 59.7 kW |
| Number Of Ranges | 2 | 2 |
| X - Axis Travel | 24.4" | 619.76 mm |
| Z - Axis Travel | 39.4" | 1,000.8 mm |
| Rapid Traverse Rate - X | 945 ipm | |
| Rapid Traverse Rate - Z | 945 in/min. | 24 m/min. |
| C - Axis Indexing | .001 | .001 |
| Rotary Spindle Speed | 3,000 RPM | 3,000 RPM |
| Rotary Spindle Horsepower | 15 hp | 11.2 kW |

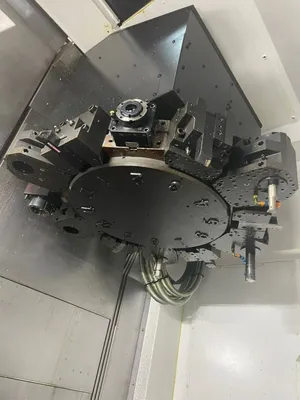

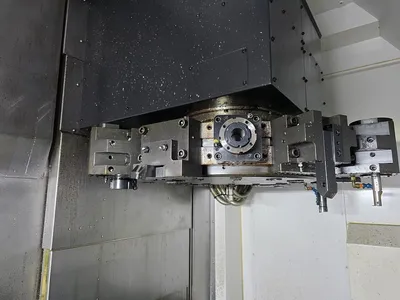

| Turret Configuration | 12 station | 12 station |
| Machine Weight | 48,501 lb | 21,999.7 kg |
| Control | CNC (FANUC 32I B CNC COLOR CONTROL) | CNC (FANUC 32I B CNC COLOR CONTROL) |

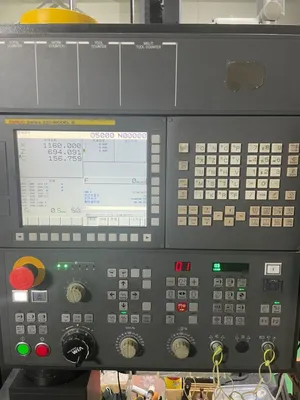

FANUC 32i B CNC COLOR CONTROLLER

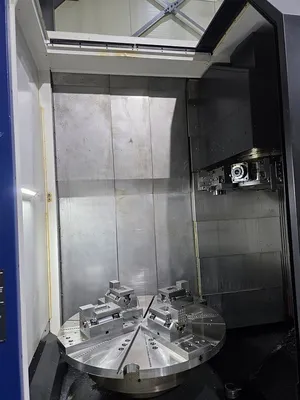

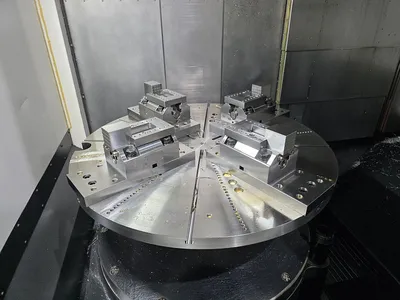

32" 3 JAW HYDRAULIC CHUCK
40" 4 JAW MANUAL CHUCK INCLUDED
REMOVABLE TOOL SETTER
(1) I.D. ROTARY MILL HEAD
(1) O.D. ROTARY MILL HEAD

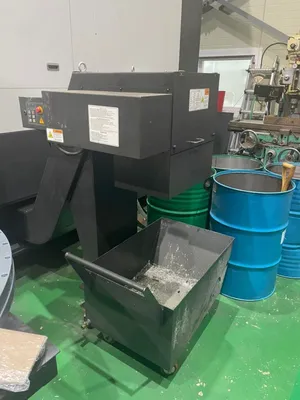

CHIP CONVEYOR SYSTEM
TELESCOPIC GUARDS & COOLANT SHEILDS
COOLANT SYSTEM
FULL ENCLOSURES

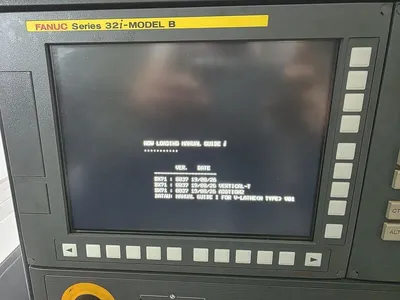

MANUAL GUIDE I
ALL AVAILABLE MANUALS
