| Swing Over Bed | 31.5" | 800.1 mm |
| Machining Length | 38.5" | 977.9 mm |
| Distance Between Centers | 44.7" | 1,135.4 mm |
| Turning Diameter, Shaft Diameter | 22" | 558.8 mm |

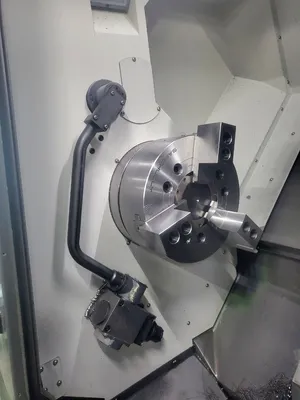

| Chuck Size 1 | 15" | 381 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bore Diameter 1 | 5.2" | 132.08 mm |
| Spindle Bar Capacity 1 | 4.6" | 116.84 mm |
| Spindle Speeds 1 | 2,000 RPM | 2,000 RPM |
| Spindle Horsepower 1 | 50 hp | 37.3 kW |
| X1 - Axis Travel | 14.3" | 363.22 mm |
| Z1 - Axis Travel | 43.5" | 1,104.9 mm |
| Rapid Traverse Rate - X1 | 630 in/min. | 266.7 mm/sec. |
| Rapid Traverse Rate - Z1 | 787 in/min. | 333.2 mm/sec. |
| Gear Ranges | 2 | 2 |

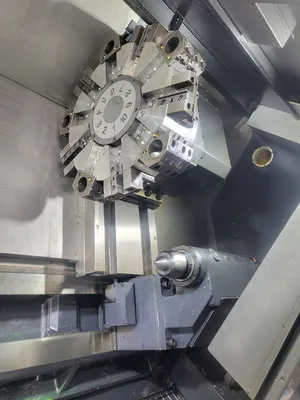

| Turret Configuration 1 | 10 | 10 |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 4.7" | 119.38 mm |
| Control | CNC (DOOSAN FANUC SERIES I CNC CONTROL) | CNC (DOOSAN FANUC SERIES I CNC CONTROL) |
| Weight | 25,132 | 25,132 |
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
TOOL PRESETTER
CUSTOM MACRO
CHIP CONVEYOR
EMBEDDED EITHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
