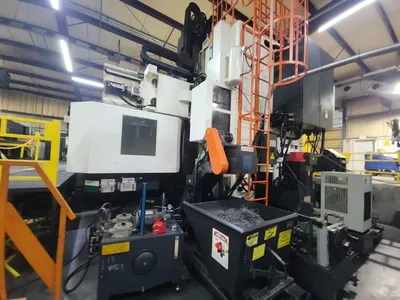

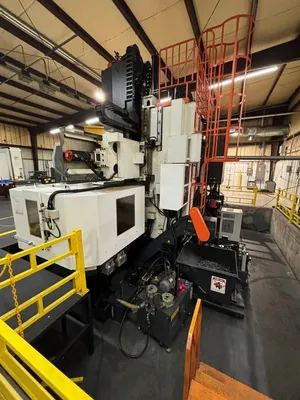

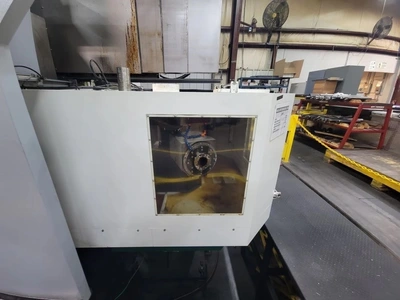

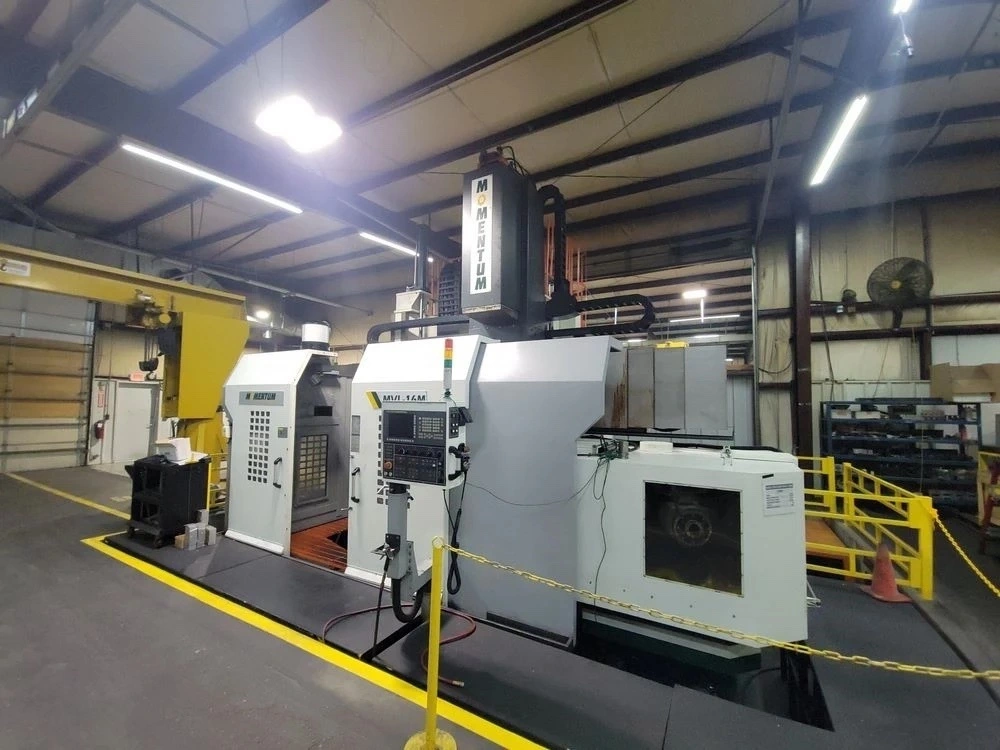

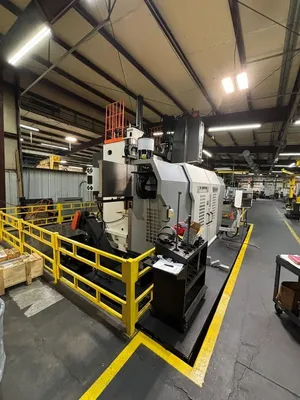

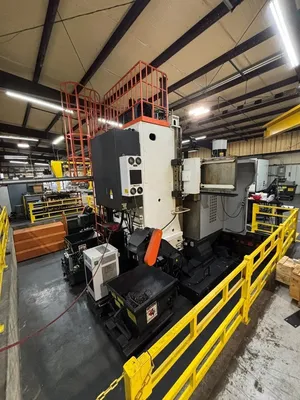

MOMENTUM MVL 16M CNC 3 AXIS VERTICAL TURNING CENTER WITH MILLING

MOMENTUM MVL 16M CNC 3 AXIS VERTICAL TURNING CENTER WITH MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
MOMENTUM
Model:
MVL 16M
Year:
2018
Stock #:
10006
Status:
For Sale

Description

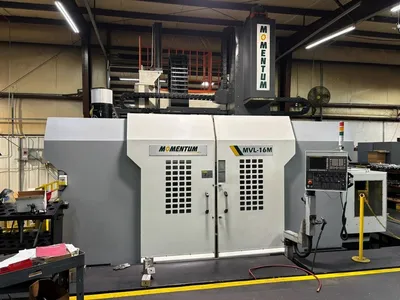

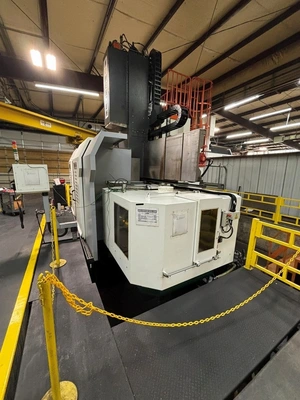

Experience precision engineering with the used 2022 MOMENTUM MVL 16M CNC 3-axis vertical turning center. Equipped with telescopic guards, chip conveyor, and Fanuc OITC CNC control, this unit features a 63" table diameter and 74 hp main motor AND 30 hp milling spindle at 455 ft-lbs. of torque. Right angel head and through the milling spindle coolant.

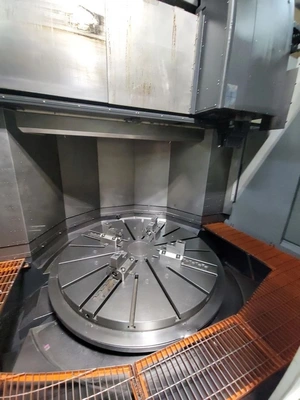

Table Diameter62.99"1,599.9 mm
Table Load Capacity22,046 lb9,999.9 kg
Swing Diameter78.74"2,000 mm
Turning Height63.18"1,604.8 mm
Table Speed280 RPM280 RPM
Main Motor73.7 hp55 kW
Number Of Ranges22
X - Axis Travel45.87"1,165.1 mm
Z - Axis Travel39.27"997.46 mm
Rapid Traverse Rate - X393.7 ipm
Rapid Traverse Rate - Z393.7 in/min.10 m/min.
C - Axis Indexing.001.001
W - Axis Cross Rail Travel29.52"749.81 mm
W - Axis Cross Rail Positions44
Ram Size10" X 10"10" X 10"
Rotary Spindle Speed3,000 RPM3,000 RPM
Rotary Spindle Horsepower30 hp22.4 kW
Automatic Tool Changer1616
Machine Weight81,130 lb36,800 kg
ControlCNCCNC
Weight60000.0060000.00

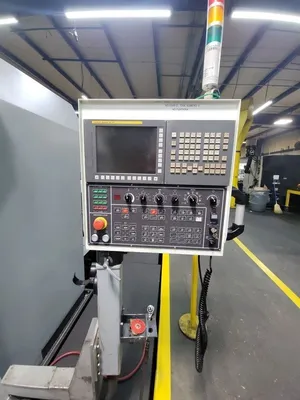

FANUC OITC CNC COLOR CONTROL
RIGHT ANGLE HEAD
TELESCOPIC GUARDS & COOLANT SHEILDS

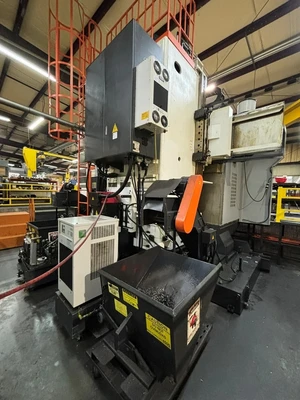

CHIP CONVEYOR
SPINDLE CHILLER
HAND HELD MPG
ADJUSTABLE CROSS RAIL
RIGHT ANGLE HEAD
250MM RISER
COOLANT THRU MILL HEAD 290 PSI
AIR CONDITIONER FOR CABINET
